How to set up your Anti-static mat and wristband

Written By: Austin Pollard
  • Comments: 1
How to set up your Anti-static mat and wristband

Difficulty

Very easy

Steps

3

Time Required

1 minute

Introduction

Using a anti-static mat and wristband to prevent ESD

  1. CtepaH3CGUAIHHlJ
    CtepaH3CGUAIHHlJ
    KqcWEgEJJSRCkoLV

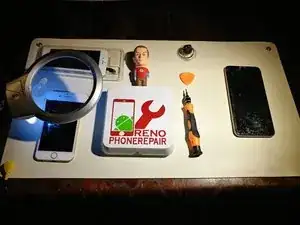

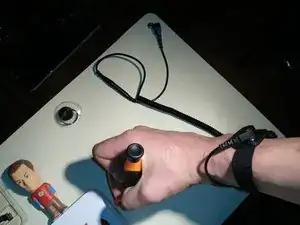

    • Using your Anti-static mat and wristband correctly.

  2. u6JMsWmQRP1DVQpR
    u6JMsWmQRP1DVQpR
    odiZFJRgKw4phJAZ

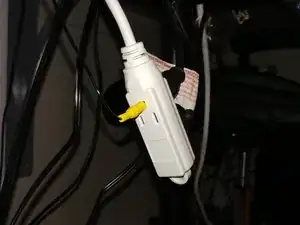

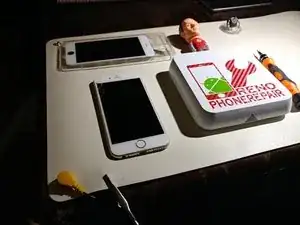

    • Grounding the mat.

    • The connection will snap to one of the buttons on the corner of the mat and go to a grounding source such as a socket.

  3. rC5FURKxBesK5BbV

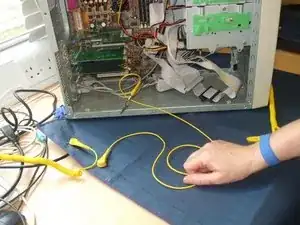

    • With the device unplugged and on the mat. The alligator clip connects to the metal chassis of the electronic device on one end and the other to your wrist or to the mat if unable to ground the mat to a socket

Conclusion

You are now safe from electrostatic discharge (ESD)
