Irulu walknbook Windows 10 tablet battery Replacement

Written By: Dili
  • Comments: 12
Irulu walknbook Windows 10 tablet battery Replacement

Difficulty

Difficult

Steps

5

Time Required

15 - 50 minutes

Introduction

this guide is to show you how to open up your irulu walknbook windows 10 tablet.

  1. yjZL1ap2EkLASgSD

    • this is what you should end up like with the tab

  2. RUxmiuE1pTN1nukV

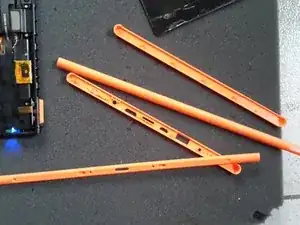

    • first remove the orange (or other colour) bezels from the side of the tab. the all have a small hole grip.

  3. Extt6EP1QlTugcCI

    • on the back cover there is a glass cover that covers up the screws. be carefull when removing it because it might break. use small like credit cards to seperate it but still be very carefull.

    Heatgun needed or glass on back shatters

    Phantom1 -

  4. ceoDNNQC2jAqAFBx

    • so the back cover seperates in to two parts. after removing the glass part the screws are visible. remove all of them. the back cover can pe removed very easily.

  5. QDhbuVQe5WZAe4xQ

    • you then end up with all the rest of the internal parts visible. now you can replace the battery or the display. there is also a 3g port slot but i haven't tried it out yet. let me know if this worked for you.

Conclusion

To reassemble your device, follow these instructions in reverse order.

Author

Dili

Member since: 30/08/15

218 Reputation

11 comments

Hey I have another question is it possible to replace the ram in it or no

jackroc21 -

No that is not possible because the ram is soldered on the main board.

Dili -

where can I buy a replacement battery for this walknbook????

hushpuppy43 -

Donde puedo comprar la batería ,no la encuentro.

will5551970 -

Necesito comprar la batería para la irulu

Battery:7800 mAh irulu w1002

Donde la venden.

will5551970 -

Can you please provide a link to a supplier for the battery?

Tom Jameson -

Would you please provide more info on how to remove back cover.

I can't seem to get a credit card in to separate the glass cover on the back.

tj@coolcity.com

Tom Jameson -

dear sir

its possible to replace the HHD (Storage , Flash ROM ) ??

my walknbook storage fail in windows installation.

Mohammad Baseer -

No bro u can reinstall windows

Wasim Khan -

Hi all,

my walknbook starts with in EFI Shell and the keaboard doesn´t work. so at the moment i can do nothing with the tablet. any idea how i can reset the CMOS?

Thanks

Solanas -

How do I replace the screen. I have 2 1 working and 1 not. The one that works has a cracked screen and the one that doesn’t has a perfect screen

Tina Oden -
