Kindle Paperwhite 1st Generation Case Replacement

Written By: Anthony Nahal
  • Comments: 10
Kindle Paperwhite 1st Generation Case Replacement

Difficulty

Moderate

Steps

3

Time Required

15 - 30 minutes

Introduction

The case of your Kindle Paperwhite gets a lot of abuse from everyday life. Replace a cracked or a scratched case to restore that fresh out-of-the-box feeling.

  1. l6YfE2jZFZPgjnbT
    l6YfE2jZFZPgjnbT
    v232H5bUQRNS4I1A

    • Using a spudger or plastic opening tool, gently pry the bezel from the screen. It is easier to start in the corners and work your way around the bezel.

    • Do not insert the spudger too far under the bezel; it could easily damage the screen.

    I found it easier to start this step off with one of the Opening Picks found in the iOpener pack.

    NathanF -

    The glue on bezel started to peel the sticky back protective layer off the screen for me - managed to smooth it back down, although now have an unsightly crease. I would try to hold the screen down when you pull the bezel off to stop damaging the screen.

    Callum Rogers -

    This step is most time consuming. Take you time and try not to scratch the bezel :)

    Oleksii -

    Couldn't get the plastic spudger under the edge of the bezel. A right-angle X-Acto blade was a satisfactory tool here.

    dbrick -

    The glue was VERY difficult...I used a trick, from taking apart phones, and used a hair drier to loosen up the glue...worked like a charm.

    billkaris -

  2. eehmSQ1GQCtSUWAM
    eehmSQ1GQCtSUWAM
    mSkG2naoP2YZttuh
    BTFwBysYHHKV33Y5

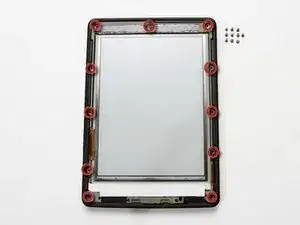

    • Remove the eleven 3.0 mm Phillips screws surrounding the midframe.

    • At the top of the display, a strip of black tape covers one screw.

    On 3G version you will not have the top middle screw.

    BJones -

    Hello, the original battery is 1420m Ah and 3.7VDC, but the buttery you offer to sell is 1600mAh, is it right? there is no problem with different mAh? mi kindle is the amazon kindle 1est generation

    Paula Ponce de Leon -

  3. aGfN4NevUPtVveNb

    • Lift the midframe out of the case.

    • If the midframe is stuck, slide it to the left first, and then lift it out.

    There are clips in the bottom of the case helping hold the midframe in. Lift the top of the midframe up enough to clear the black back piece and then slide up and out.

    BJones -

Conclusion

To reassemble your device, follow these instructions in reverse order.
