Kindle Paperwhite 1st Generation LED Lights Replacement

Written By: Anthony Nahal

Comments: 28

Kindle Paperwhite 1st Generation LED Lights Replacement

Difficulty

Moderate

Steps

Time Required

No estimate

Introduction

Having trouble reading in the dark? Replace the display's LED lights if the lighting on your Kindle is uneven or absent.

Tools

Step 1

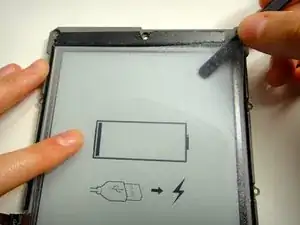

Using a spudger or plastic opening tool, gently pry the bezel from the screen. It is easier to start in the corners and work your way around the bezel.
Do not insert the spudger too far under the bezel; it could easily damage the screen.

I found it easier to start this step off with one of the Opening Picks found in the iOpener pack.

NathanF - 27/12/17

The glue on bezel started to peel the sticky back protective layer off the screen for me - managed to smooth it back down, although now have an unsightly crease. I would try to hold the screen down when you pull the bezel off to stop damaging the screen.

Callum Rogers -

This step is most time consuming. Take you time and try not to scratch the bezel :)

Oleksii -

Couldn't get the plastic spudger under the edge of the bezel. A right-angle X-Acto blade was a satisfactory tool here.

dbrick -

The glue was VERY difficult...I used a trick, from taking apart phones, and used a hair drier to loosen up the glue...worked like a charm.

billkaris - 09/08/22

Step 2

Remove the eleven 3.0 mm Phillips screws surrounding the midframe.
At the top of the display, a strip of black tape covers one screw.

On 3G version you will not have the top middle screw.

BJones - 21/05/16

Hello, the original battery is 1420m Ah and 3.7VDC, but the buttery you offer to sell is 1600mAh, is it right? there is no problem with different mAh? mi kindle is the amazon kindle 1est generation

Paula Ponce de Leon - 09/11/20

Step 3

Lift the midframe out of the case.
If the midframe is stuck, slide it to the left first, and then lift it out.

There are clips in the bottom of the case helping hold the midframe in. Lift the top of the midframe up enough to clear the black back piece and then slide up and out.

BJones - 21/05/16

Step 4

Turn over the midframe to locate the battery.
Remove the three Phillips 3.0 mm screws securing the battery to the midframe.

Step 5

Gently lift the battery from the bottom, and slide it out of the midframe.

Thanks for providing this guide, I would have been lost without it. My old kindle, however, had very stiff and hard rubber/plastic. There was no way I could have slid the glass to the side or gotten the plastic spud under the edge of the glass or the plastic.

What I did was to remove a piece of the plastic next to the glass , about 1/8” square, then insert a putty knife in between the two sides towards the edges. It all popped apart without breaking anything. Perhaps I could have done this without cutting out the little piece.

Joseph L Woollett - 07/02/21

Thank you for this very user friendly guide.My kindle is now working as new.The screws are small and fiddly and the correct tools are essential. I took roughly about 45 minutes from start to finish and the most difficult part was taking the casing apart without damaging the screen .. A 5 star service.

jonesmrse -

Thanks for the useful and practical guide. Five stars.

dbrick -

The bezel sits on a film meant to protect the screen. When lifting the bezel, it is a good idea to slightly push on the screen with cardboard or something elese, to make sure the screen film stays on the screen as you lift the bezel.

tropdetremblay -

Step 6

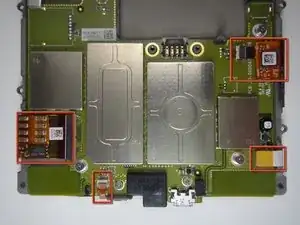

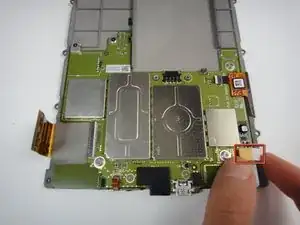

With the case and battery removed from the midframe, begin removing all cables attached to the motherboard.
Place the device so the midframe's backside faces up. Start with the cable on the bottom left corner.
Use a spudger to lift up the white locking cable tensioner and slide the flex cable out.
Proceed counterclockwise to the next cable and repeat. Small flex cable on the bottom won't need cable tensioner lifted, just carefully pull out.

The second connector is not exactly a "repeat". The lock to be lifted is on the cable side, whereas the first connector's lock is away from the cable.

Yishai Sered - 22/03/15

Does anyone know the part number or for that matter where i can purchase the original LED assembly?

Thanks

naz zan - 23/03/15

Step 7

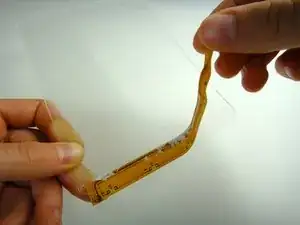

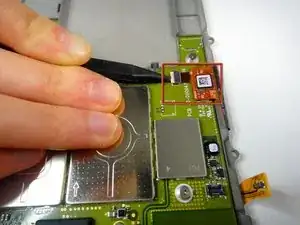

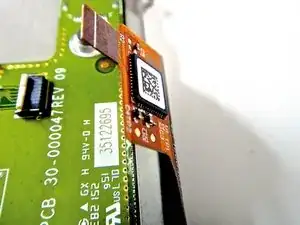

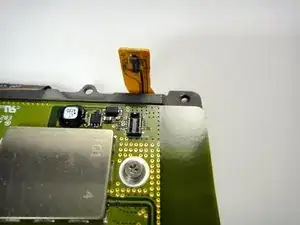

Remove the white flex cable by gently lifting the yellow plastic connector.

Step 8

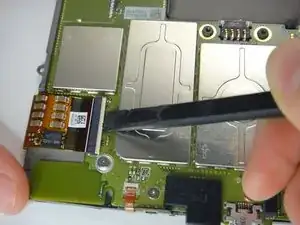

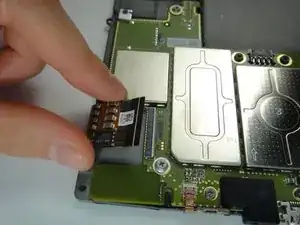

Remove the yellow anti-static tape from the display ribbon cable connector.

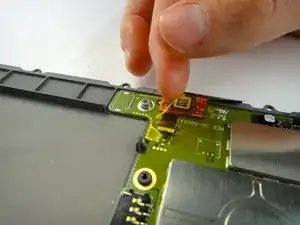

Use a spudger to lift up and disconnect the cable tensioner.

Step 9

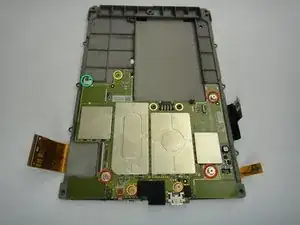

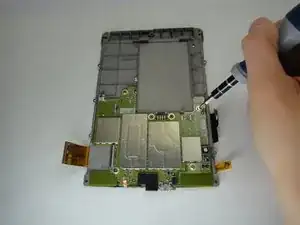

Use a Philips screwdriver to remove the seven 3.0 mm Phillips screws securing the motherboard:
Three silver screws with silver washers
Two silver screws with no washers
One black screw with a golden washer
One black screw with a square washer

Step 10

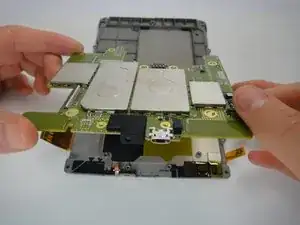

Remove the motherboard.

Step 11

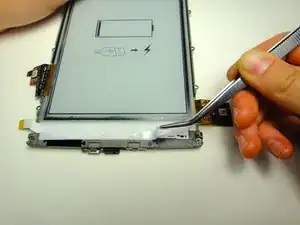

Use a pair of tweezers to remove the white strip of tape that covers the LED lights.

Step 12

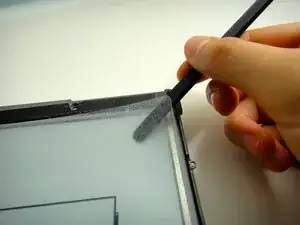

Use a spudger to gently remove the plastic screen from the display.
The plastic screen is held on by a thick layer of glue. Be patient when lifting the screen to avoid bending or breaking the thin plastic.

Does anyone know what kind of adhesive is used between the waveguide / dffuser layer, and the display layers under it? It’s definitely not a hard-cured epoxy, but almost a gel — probably silicone — and probably matched to the refractive index of the layers.

Or, did anyone succeed in re-using the original stuff, and if so did you have air pockets or artifacts because of it?

Dan Collura -

Step 13

Once the outer screen is removed from the Kindle, gently use your fingers to pull off the LED lights.

Thanks for the guide but the problem is finding a replacement for the led lights. Have you found any seller?

FFF - 16/09/17

Conclusion

To reassemble your device, follow these instructions in reverse order.
