Kindle Paperwhite 2nd Generation Power Button Replacement

Written By: Tyler Davis
  • Comments: 7
Kindle Paperwhite 2nd Generation Power Button Replacement

Difficulty

Easy

Steps

4

Time Required

No estimate

Introduction

Disassembling a tablet often requires some gentle prying of the frame. Be sure to exercise care during these first few steps(disassembling), and do not lose your screws! The Paperwhite is a sturdy tablet that can be broken down into just a few components. This guide will show you in just three short steps how to replace a bad power button.

  1. i6UxHQPAn252gGX2
    i6UxHQPAn252gGX2
    suiJJoUIOVPglCvp

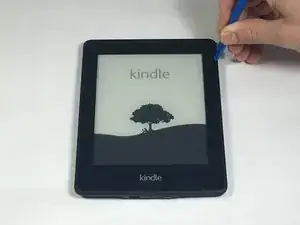

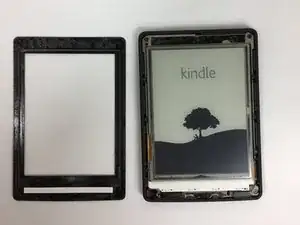

    • Insert plastic opening tool into the corners of the Paperwhite and slide around the edge perimeter to remove bezel.

    • Be sure to begin prying along the edges, these are the optimal points for removing the bezel.

  2. 53ypbnLickWdAcBh
    53ypbnLickWdAcBh
    ntpIyCBdlFau5U5s

    • Remove the eleven 3.2 mm Phillips 000 screws from corners of mid-frame and from behind the black strip as shown.

    • Do not forget the screw in the middle of the black adhesive strip.

  3. q3m5GIQjPnVlKVap

    • Carefully lift and remove the mid-frame.

  4. ysoeOQBrIBHRGi1x
    ysoeOQBrIBHRGi1x
    Icse4iY52LcGUc1U

    • Remove the power button carefully using a blue plastic opening tool, and replace with a functional unit.

    Can you tell me where to find a replacement button?

    Chris Lewis -

    You ever found the button?

    Luka Buic -

    funny. I couldn’t locate a button either. I did however use an old Nintendo DS stylus sandpapered down. this would go into the power button hole and turn it on/off. hope it helps others!

    Darren Rutgers -

Conclusion

To reassemble your device, follow these instructions in reverse order.

Author

Tyler Davis

Member since: 15/09/16

1487 Reputation

4 comments

I have problems with my power button and this is very nice presentation, but I would like to know whether this button is an integral part of the back cover or can be purchased separately and, of course, where it can be purchased.

Thank you for answer and best regards,

Bojan

Bojan Briški -

Seconding this: where exactly can I purchase the button?

Oren Leifer -

Same for me…..where can I buy this button?

Rob Hoenstok -

The power button must be part of an assembly that attaches to the main board in order for it to function. Where can I buy this assembly and not just the plastic button itself?

Roger Joseph

Roger joseph -
