Laptop Ram/Memory Replacement

Written By: George A.
  • Comments: 2
Laptop Ram/Memory Replacement

Difficulty

Easy

Steps

6

Time Required

3 minutes

Introduction

This guide will show you how to replace laptop SODIMM RAM or memory.

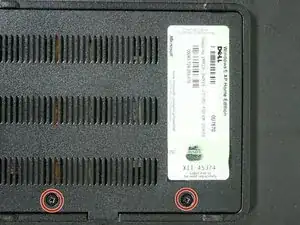

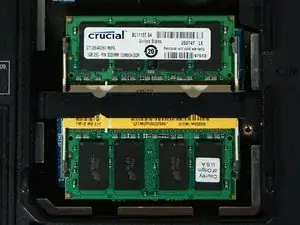

  1. JCffTWsg3ykPIuXV
    JCffTWsg3ykPIuXV
    fnYqCHJQ6LaSDbjB
    5vqmBiLBOFyamOUg

    • Many laptops have a door for the ram. But often, removing the entire back cover is necessary.

    • Remove screws on Ram door.

    • There is now access to the ram.

    • Remember to always remove or disconnect the battery!

  2. HFtysFOebTPDa4I6

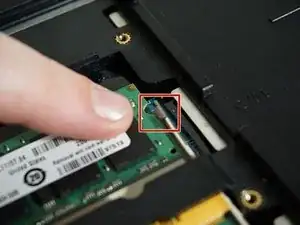

    • Push metal tab out of the way. Some laptops have screws instead of tabs.

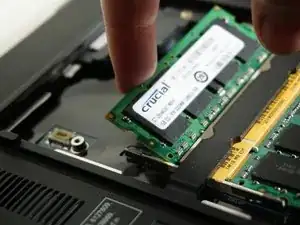

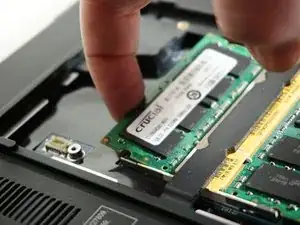

  3. dpYyM4oeOLPPTdpF
    dpYyM4oeOLPPTdpF
    qrPxX5glQtISWPhD
    BNyc1NDF54YHEHQG

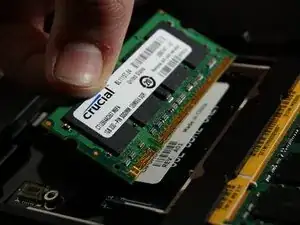

    • lift up on ram.

    • Pull out of SODIMM socket.

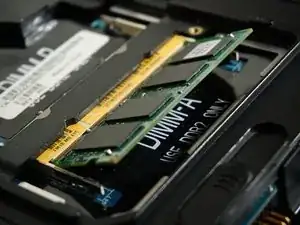

  4. AmMuMDg4xdvJEOgy

    • Repeat with second stick. Sometimes the second stick is layered under the first.

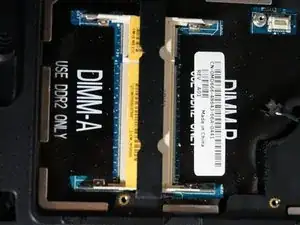

  5. TbYr2fSpJLQFjHZS

    • Remember, If only replacing one Stick, to put that stick in DIMM A or DIMM 1.

    • There are five types of laptop laptop ram: DDR, DDR2, DDR3, DDR3L, and DDR4.

    • Make sure that whatever ram your laptop was using is replaced by that same type. Memory is not cross compatible with desktop memory, so make sure that your RAM is SODIMM laptop memory. SODIMMs are usually about 3" long, while desktop DIMMs are about 4"-5" long.

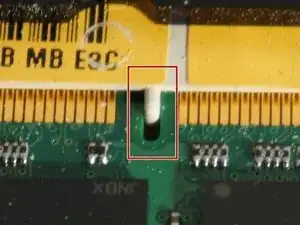

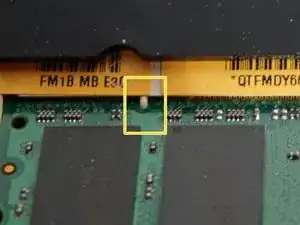

  6. DWIUEWSlZkUbKlaL
    DWIUEWSlZkUbKlaL
    efONKSENKqMjX1V3
    UAUutsi5PTlILSBN

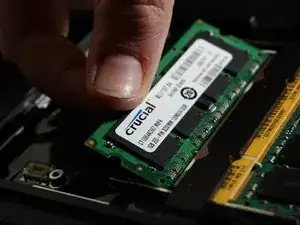

    • Re-insert RAM at a 45 degree angle and push down until clips snap into place or screw back in.

    • Make sure that pins line up correctly and memory is all the way in place.

    • This is incorrect.

    • Replace RAM door.
