Lenovo IdeaPad 110-15IBR Battery Replacement

Written By: Saddam Alsinai
  • Comments: 10
Lenovo IdeaPad 110-15IBR Battery Replacement

Difficulty

Easy

Steps

4

Time Required

5 minutes

Introduction

This guide will show how to replace the battery on the device. It walks through the process of removing the back, unscrewing the battery, and unplugging the batter from the device.

  1. VsCoEALFn2TOqD16
    VsCoEALFn2TOqD16
    VPEokhIYALx1NYoI

    • Before you proceed, make sure your computer is turned off and it's not connected to any power source.

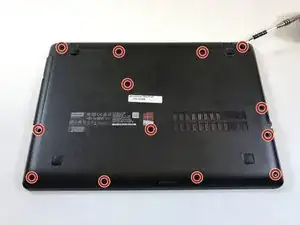

    • Remove the thirteen 9 mm Phillips #1screws.

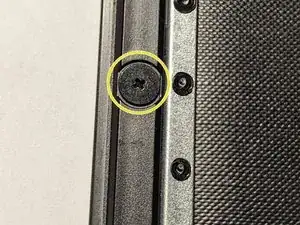

    • Pull out the DVD drive and unscrew the final 3 wide-head screws holding the back in place.

    Attention ! Sur le mien, il faut après avoir retiré la vis au dessus de l’étiquette blanche, faire coulisser le lecteur dvd vers l’extérieur (la vis le maintenait en place).

    Une fois celui-ci retiré apparaissent les 3 dernières vis à retirer pour pouvoir retirer le boitier inférieur sans souci.

    Dominique ENET -

  2. Im4EjTnjsOEfiBrc

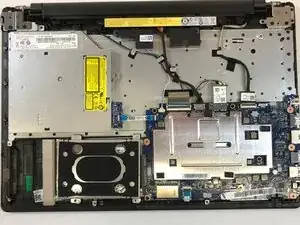

    • Gently pry the back off using a plastic opening tool, starting from one of the corners.

  3. la1hDqnIQArj1N3m

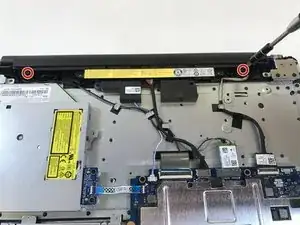

    • Remove the two 9 mm Phillips #1 screws holding the battery.

  4. Z5JbQt2WECgEHQWZ
    Z5JbQt2WECgEHQWZ
    sYFXDM1tijS5FPAu
    giDpFmPU1aLcHXTw

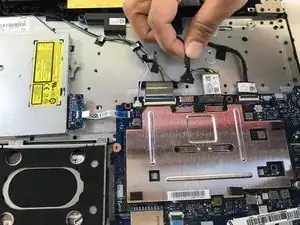

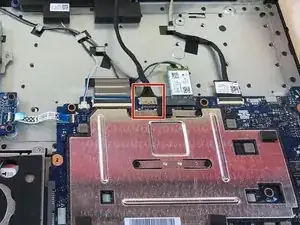

    • Disconnect the battery cable connector from mother board.

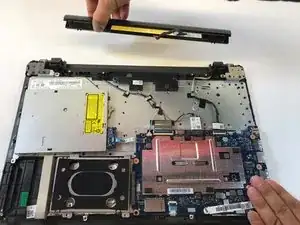

    • Remove battery from device.

Conclusion

To reassemble your device, follow these instructions in reverse order.

Author

Saddam Alsinai

Member since: 18/10/17

663 Reputation

9 comments

Informative except , you didn’t mention the three screws underneath the DVD drive. The DVD drive must be removed first before you can remove the 3 additional screws.

Clarey Ryan -

I agree Clare! I didn’t see those either! Very frustrating at first! Thanks for the lead Clare!

Daniel Jansen -

Just cannot see where theres 13 screws got 11 cant see anything under or near the Drive clare.

charlie.bansj -

Easy to follow

Hugo Jhuboo -

I unscrew everything but to open it, it gets stuck in the middle….. i am afraid to pull hard…..

djerro -

Thus the media in the laptop remains as it is?

shradha patil -

brand new out of the box and it is frozen……..how can I get this returned

Karen Galib -

DO NOT try to remove the back without pulling the DVD drive and unscrewing the additional three screws!!! You'll break the thinnest part of the back. This guide erroneously makes no mention of these three flat screws.

Lan Sharked -

Remove all the bottom screws Then You have to remove the keyboard before you can get the back off. Back center screw by the decal is for keyboard. The lightly pry off keyboard. 3 screws (1 screw under round sticker) under it have to be removed. Remove DVD. Then back will come off.

rknapp1 -
