Lian Li PC-011 Hard Drive Replacement

Written By: Suhaib Rahman
  • Comments: 0
Lian Li PC-011 Hard Drive Replacement

Difficulty

Easy

Steps

8

Time Required

30 minutes

Introduction

This guide is for first time builders or people that bought prebuilt computers in a Lian Li PC-011 case. This guide will walk you through how to install or replace a 3.5 hard drive in the case. It is not a very difficult task and it should only take you 30 minutes to complete.

  1. CmSAOFTVxCcTtfNi

    • Power off the system using the button on the back of the computer.

    • Remove the power cord from the computer.

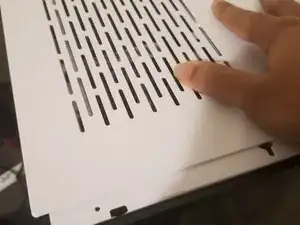

  2. Zd1UlM33oIYUOyBT
    Zd1UlM33oIYUOyBT
    oOIRxaqHQOZQThHU
    wQij4AqKIuwQChNy

    • Remove two thumb screws from the back of the case.

    • Slide the top panel backwards.

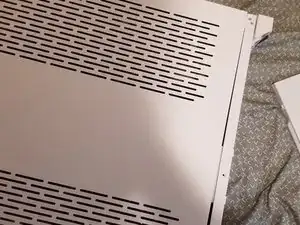

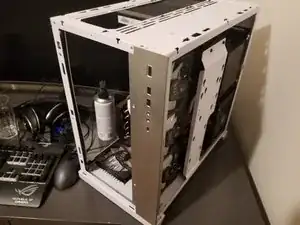

  3. JDl1qpVAEUEyoCCY
    JDl1qpVAEUEyoCCY
    DllcYdLdxOcJfA4R
    I4qAOxGn14Uq2VtK

    • Remove the remainder of the panels by pulling upwards on them.

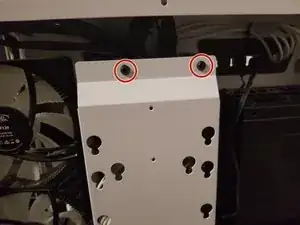

  4. NxdKUuHNgOOUBFTT

    • Remove the two 3 mm Phillips #2 screws from the wire cover.

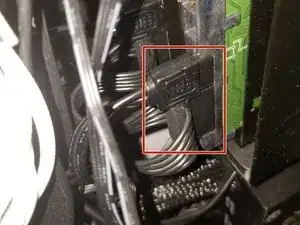

  5. P6vAAyyCUawtokOL

    • Unplug the two cables from the hard drive.

  6. mlEMmlUufhMeJKYR
    mlEMmlUufhMeJKYR
    mK1PuP2ZNC1miGUu

    • Push together the bottom and top tabs and pull the hard drive tray out of the case.

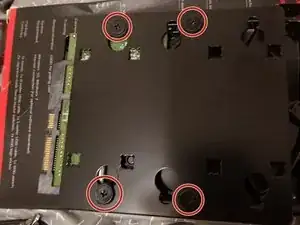

  7. 36JvTZNZSxwkQyXA

    • Remove four #2 Phillips screws from the hard drive case in a cross pattern.

  8. isecsWibo1mKNaLG

    • Replace the old hard drive with the new hard drive.

Conclusion

To reassemble your device, follow these instructions in reverse order.
