MECHREVO Z2 Laptop RAM Replacement

Written By: Songxun Cai
  • Comments: 2
MECHREVO Z2 Laptop RAM Replacement

Difficulty

Easy

Steps

5

Time Required

15 minutes

Introduction

  • Device name: MECHREVO Z2
  • The purpose of this guide is to replace the RAM of your laptop.
  • If your MECHREVO Z2 Laptop gets slow in use, you may need to replace or add RAM to your Laptop.
  • Please disconnect the power supply before working.
  • RAM

  1. jTWE4cZoWVly3hEK
    jTWE4cZoWVly3hEK
    Ni2thDnsegXA5UIw

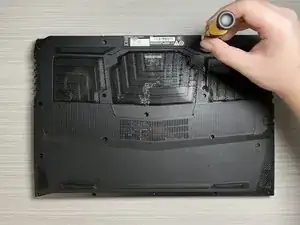

    • Using a Phillips screwdriver, remove eighteen 1.2mm Phillips #1 screws on the back.

  2. wmyk5SjdiIFQY2N2
    wmyk5SjdiIFQY2N2
    ZN6RbO5nBeIKHIEy

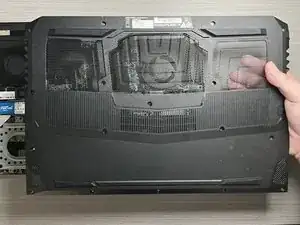

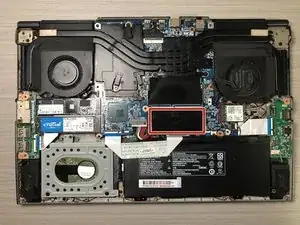

    • Remove the back plane.

    • Locate the memory slot.

  3. wfguBT2PwpgZeYAs
    wfguBT2PwpgZeYAs
    KEsLNuS23rdSinne

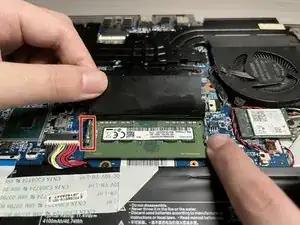

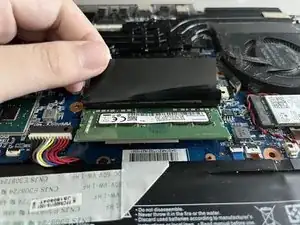

    • Open the retaining latches on either side of the RAM card with your fingers or plastic tool.

    • When both anchor pins are open, the RAM pops up.

    • Remove the RAM.

  4. GbK6QcEGSAdodAib
    GbK6QcEGSAdodAib
    lagySQxltChqOeoZ
    VTQHjEMYRyBuXImq

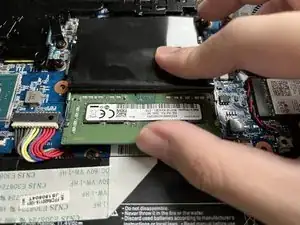

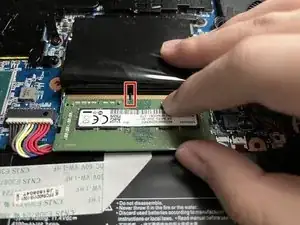

    • Align the notched part of the RAM with the raised part of the card slot.

    • Push inward until the notch and bulge coincide.

    • Press the other end of RAM down with your finger.

    • When you hear a clicking sound indicating that the retaining clips are reengaged, you are done installing.

  5. F3GHWpqKYM44T115
    F3GHWpqKYM44T115
    2tQgMAC1KUaTkkGU

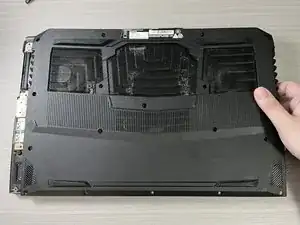

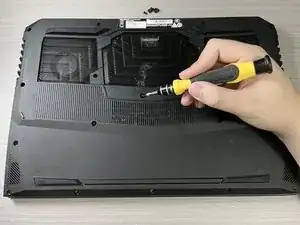

    • Assemble the back plate.
