Introduction

If your dryer makes some noise when running it, it may time to replace the filter of your Manatee V2S Intelligent Clothes Dryer. This guide gives step by step instructions for replacing the filter of your dryer.

  1. qfqWynejKy5CBuum
    • Turn the machine upside down.

  2. 3OTxlcMiTEjlW3dE

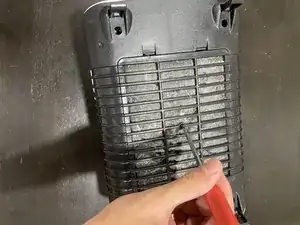

    • Use a Phillips #0 screwdriver to remove the 3.5 mm screw holding the bottom case to the device.

  3. y1D1XrQ1NxPUWIEd
    • Cut out about 10 cm of scotch tape.

    • Turn it over and go around your hand as shown in the image, which lets the adhesive side on the outside. (Because it is easy to remove dust)

    • You can also use any other ways to remove the dust, but make sure not to break the filter.

  4. G6XwnNEXULrg1TKC

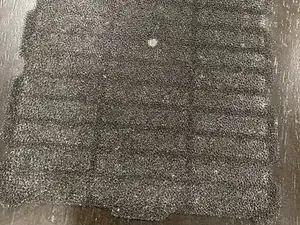

    • Take out the filter.

    • Tap the dust and particles into the garbage, remove the dust with scotch tape, or replace the filter.

  5. hSHdndR44X1HtLdX
    hSHdndR44X1HtLdX
    qLlCAMfG3sV1BBLM

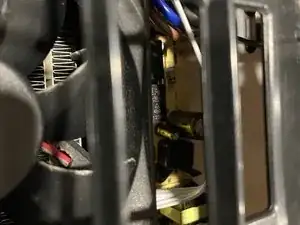

    • Check for broken/loose wiring and other connections.

    • Dust may not be the only reason for the poor performance.

    • Close the lid and replace the screw.

Conclusion

To reassemble your device, follow these instructions in reverse order.
