Mazda CX-5 Cabin Air Filter Replacement

Difficulty

Very easy

Steps

5

Time Required

5 minutes

Introduction

This tutorial will show you how to replace a cabin air filter in a Mazda CX-5. You will need to purchase a new filter, which can be found at AutoZone or Amazon for around ten dollars. This fix will take under five minutes.

Before beginning this guide, be sure to power off the ignition and engage the car’s parking brake.

  1. C1FBsaYc1joXsbQj

    • Open the passenger glove box.

  2. qcp5mKXQTkWLnicy
    qcp5mKXQTkWLnicy
    WNDXORAenSNlWNTr

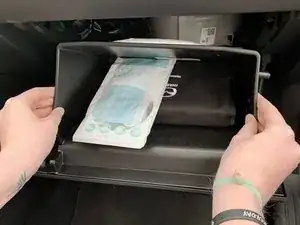

    • Squeeze the sides of the glove box, and gently pull it down until you can see behind it.

  3. Zc2xc5jIACCYTp6l
    Zc2xc5jIACCYTp6l
    sfDTFODcLoHFeYL4
    ZHYR5aNOy24VWZA5

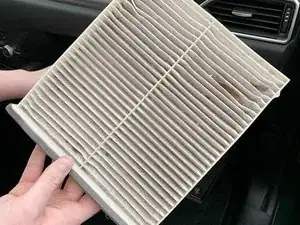

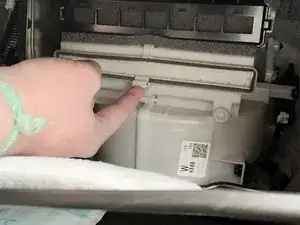

    • Locate the cabin filter with hook that is facing down.

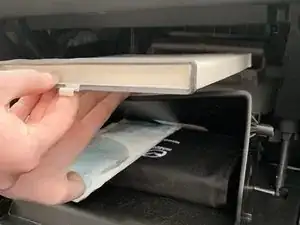

    • Lift the hook and pull out the filter.

  4. dpILuH34SltcLBXL

    • Put in the new cabin filter and place the tray back into the slot with the hook facing down.

  5. qOLgfSTCCbRJYHKk
    qOLgfSTCCbRJYHKk
    epU1x5K1S1QGelKa
    SUP6YTtGas6WZJtG

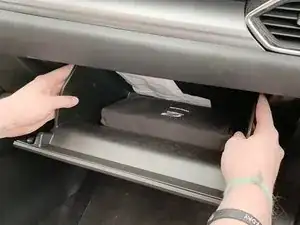

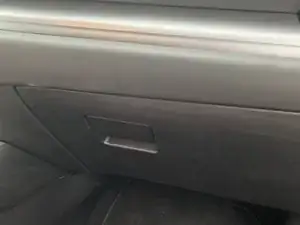

    • Take the sides of your glove box and squeeze, gently lifting back up until you close the glove box.
