Introduction

A guide showing how to disassemble and clean a Microsoft Natural Multimedia Keyboard.

  1. AUS4kbHVKrVLA6Eq
    AUS4kbHVKrVLA6Eq
    mGCmiGG65ciaCEHb
    PJw2YeUPVgiqTOBL

    • A guide showing how to disassemble and clean a Microsoft Natural Multimedia Keyboard.

    • You will need a spudger to remove the keys. An IC mounting tool can be helpful in replacing them.

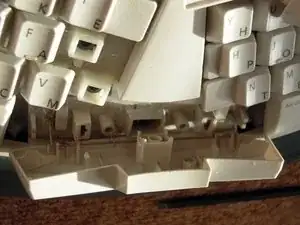

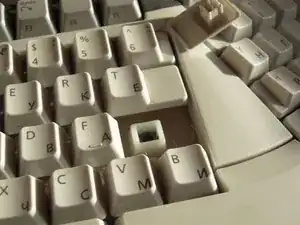

  2. ggnwQJBDaQFc6mSy
    ggnwQJBDaQFc6mSy
    ZFkibGM6JMohqKgw
    lKVnPlyOEkAexoYB

    • Use the flat end of a spudger to pop the keys off the keyboard.

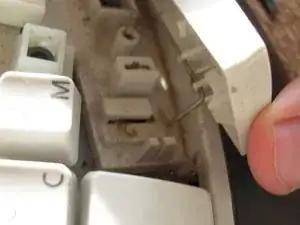

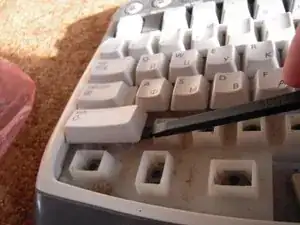

  3. A3qjxinAYwhfhuyP
    A3qjxinAYwhfhuyP
    uBHKdkaaWIWFicPN
    nJTDKQqO5Xr2dxMh

    • Wider keys will have a retaining bar, take note of how they come off to make reassembly easier.

    • Continue removing keys.

  4. Xn4H6ISSODtqL3Gp
    Xn4H6ISSODtqL3Gp
    FMBL2JBfN4FXLnGl
    pYE2arBhciXerRgZ

    • Remove the 10 screws from the bottom of the keyboard.

    • Remove the upper button assembly.

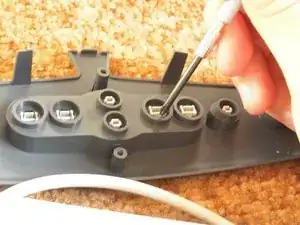

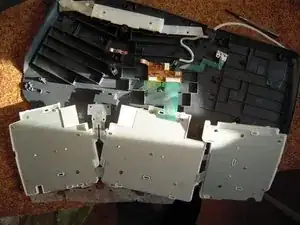

  5. lBTOLmYBMGUre3Ku
    lBTOLmYBMGUre3Ku
    MguAQJgvn3atXmAf
    B34GDrWgDncnTqBi

    • Use the tip of a spudger to push the upper button assembly buttons out from the back.

  6. 1mwDD1W3kIVxLRHM
    1mwDD1W3kIVxLRHM
    M5LVDXHRWApWMtfw
    M1dGXLDGwrAkOEWS

    • Remove the flexible keypad from the key caddy assembly.

    • The key caddies can be washed in the sink.

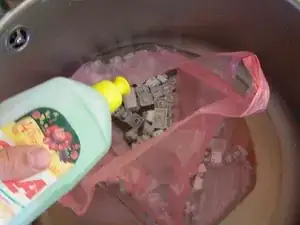

  7. hFKxxUjM3YidTJdT

    • The keys can also be washed.

    • Remove the metal retaining clips before washing to prevent rust.

Conclusion

To reassemble your device, follow these instructions in reverse order.

Author

asvnix

Member since: 18/11/12

274 Reputation

2 comments

Thank you so much! I had never done this before and was very confused by the retaining bar.

Des Blackoak -

I’ve had this keyboard since it was released and it just recently started having key sticking issues, so I opted to follow this guide and was pleasantly surprised at how well it worked. Thank you for this and I hope to get another 15 years out of it.

Suggestions:

1) Instead of manually cleaning, put the keys into a clear mesh bag and into the dish washer or washing machine.

2) Spray metal retainer bars with WD-40 and wipe off to help further prevent rust.

3) Let the keys and caddies sun dry for the day to ensure they do not retain any water after cleaning.

Thomas K -
