Mini Fridge Hinges Replacement

Written By: Adam Millen
  • Comments: 1
Mini Fridge Hinges Replacement

Difficulty

Easy

Steps

7

Time Required

15 minutes

Introduction

Is your mini fridge door not working properly? Are you having trouble keeping the door closed and the contents cold? You may want to inspect the quality of the hinges connecting your door to the fridge.

This guide is designed to assist you in replacing your mini fridge hinges. Before replacing your hinges verify that there are not any underlying problems with your door seal and mechanical components. Should these remain functional but the hinges are not you can proceed to follow this guide.

These hinges can become damaged, rusted, or worn over time resulting in poor functionality of the fridge door. This repair can be completed by one person but an assistant is helpful.

  1. ZZZJLBIW4C1hPrqq

    • Remove the plug from the outlet. Be sure to grab from the head of the cord.

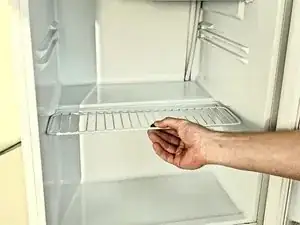

  2. YfSATeobNBV2bXIL

    • Remove all food items and shelves from the fridge.

    • Place removed contents to the side and if needed place food items in another fridge temporarily.

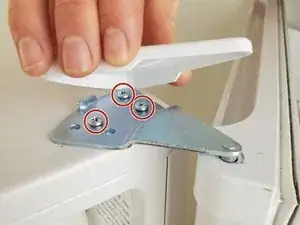

  3. lYjR53NOYSmsktbU
    lYjR53NOYSmsktbU
    RR4cnDI3rYy5OXWl

    • Remove the cover to the top hinge to access the hinge and screws. If you are unable to remove the cover with your hands, use a flathead screwdriver to pry it off.

    • Remove the three 20 mm Phillips #1 screws from beneath the cover.

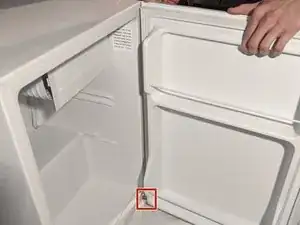

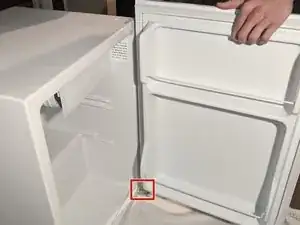

  4. ULc2ubNRVBrdc1E2
    ULc2ubNRVBrdc1E2
    JMdtIlAS1BSPEUkm
    HjtElMutAZd2JUVv

    • After removing the top hinge, lift the door off of the bottom hinge.

    • Place the door and removed top hinge securely to the side.

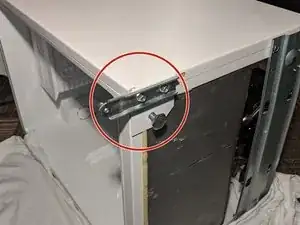

  5. JBiKNHvDRiJPAOnn
    JBiKNHvDRiJPAOnn
    eL5VtcPGpRMndbrv

    • Rotate the fridge onto its side.

    • Do not turn the fridge upside down to protect the internal components of the fridge.

    • Remove the two 19 mm Phillips #1 screws and the bottom hinge.

    After laying it on it’s side does the mini-fridge need to stand upright for a certain period of time before plugging it into power. If so, that would be really good info to add here.

    sbacklun -

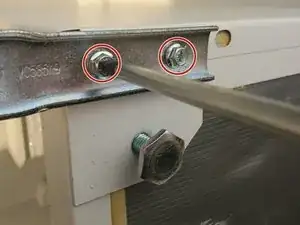

  6. ZBlidVUZvZfyRfK5

    • Install the bottom replacement hinge and the two 19 mm Phillips #1 screws.

    • Turn the fridge right side up after the bottom hinge is replaced.

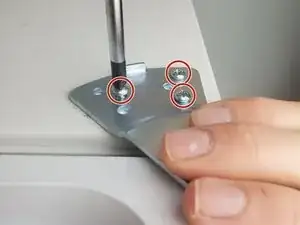

  7. UdNJqXBvnKVUomfY

    • Place the door on the bottom hinge, aligning the hole with the hinge.

    • Install the new top hinge and the three 20 mm Philips #1 screws. Ensure the orientation of the hinge lines up with the door.

    • Tighten as needed until the fridge door opens and closes normally and is not uneven.

    • Replace the top cover and the shelving inside the fridge.

Conclusion

This is a relatively easy fix and is easily repeatable. The replacement parts are inexpensive. We hope this guide extends the life of a mini fridge and expands your understanding of the topic.
