Modal Rechargeable Wine Opener Power Button Replacement

Written By: Lauren Spicher
  • Comments: 2
Modal Rechargeable Wine Opener Power Button Replacement

Difficulty

Easy

Steps

5

Time Required

10 - 30 minutes

Introduction

In this guide we will be showing one how to replace the forward and backwards buttons to a Modal Rechargeable Wine Opener in 5 quick and easy steps.

  1. EP3mDSVJYnnJMfvi

    • Carefully place the spudger under the black cylindrical ring and pry it off the top.

  2. JiKAuAKDEtAHhZqT

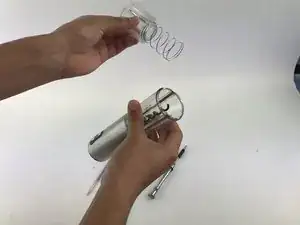

    • Remove the spring

    • Remove the spring guide as well to obtain clear access to the screws

  3. tXp1aeNBRKqhZGiD
    tXp1aeNBRKqhZGiD
    euu241oiYRep5frW
    ELTSnDUiBIHmW3up

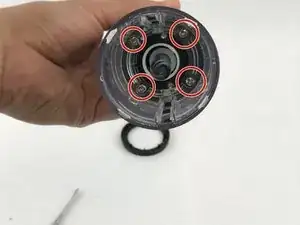

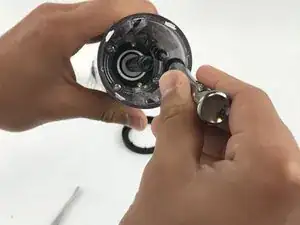

    • Remove all four 4mm screws with a J1 Screwdriver

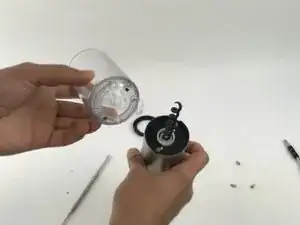

    • Remove the clear cylindrical cap

  4. sCjUit1DxW1dtPK2
    sCjUit1DxW1dtPK2
    S6fiOjtwbZiIlfDD
    WkHrgssKxMJKokKx

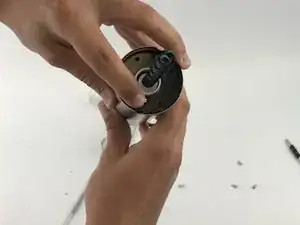

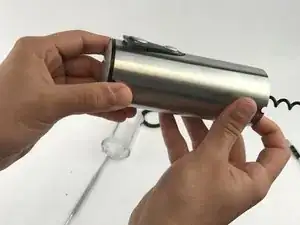

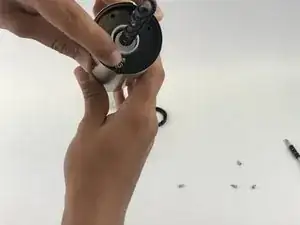

    • Apply pressure to both of the springs on the surface near the corkscrew, releasing the button port.

  5. WWfn2s4FVICJtqOK
    WWfn2s4FVICJtqOK
    ZEQcJNv34TQnJoEV
    WVgOfuctvNTDGQoJ

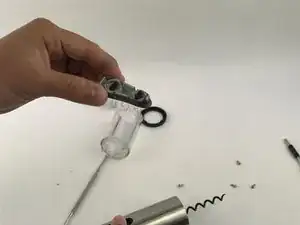

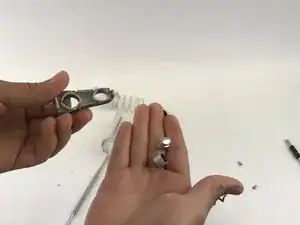

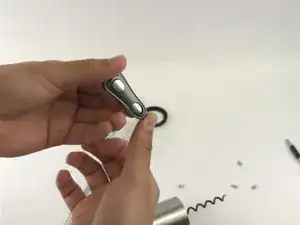

    • Remove the malfunctioning buttons from the plastic frame.

Conclusion

To reassemble your device, follow these instructions in reverse order.
