Introduction
If your mouse is intermittently disconnecting, randomly missing movements and inputs - you might have a broken or damaged mouse cable. The mouse cable carries data from the mouse to your computer. A damaged cable can result in missed mouse movements and inputs. Before starting this guide try a different connector (most likely USB) port on your computer, and inspect the connector for dirt and debris.
This guide shows an easy, step-by-step process on how to replace the mouse cable in a Glorious Model O- mouse.
The mouse should be physically unplugged from your computer prior to beginning your repair.
-
-

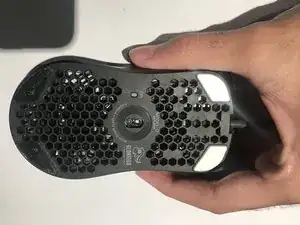

Turn the mouse over so that the feet are facing you.
-

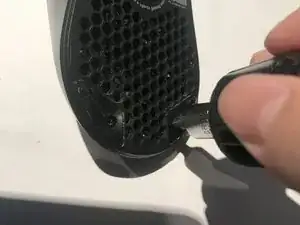

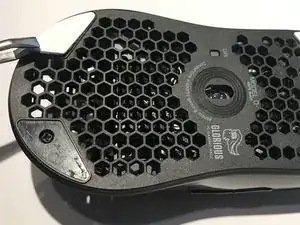

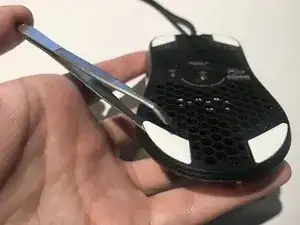

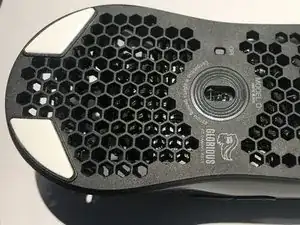

Remove the bottom two mouse feet using tweezers.
-
-
-

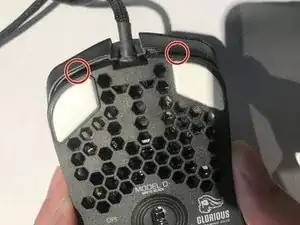

Slide the base away from the top housing to avoid the front clips.
-

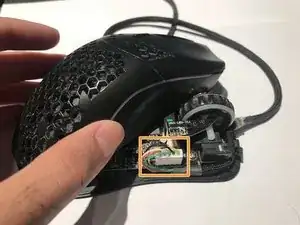

Lift the top and place it down diagonal over the base, exposing the 5-pin connector.
-
-
-

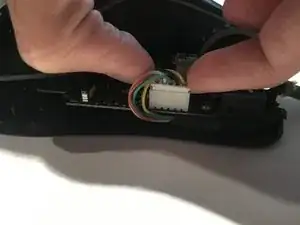

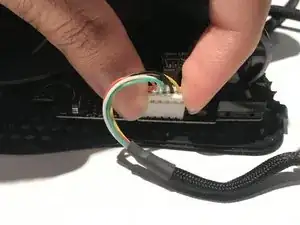

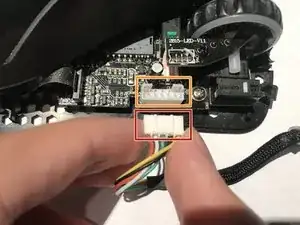

Use two fingers to grasp the top of the 5-pin connector under the edges and slowly lift the connector. If it is difficult, wiggle the plug slightly.
-

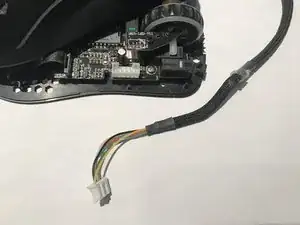

Remove the cable from around the circuit board and from the hole on the front of the mouse.
-
-
-
Route the new cable through the slit in the circuit board.
-

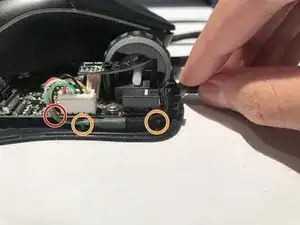

Route the new cable behind the pillars.
-

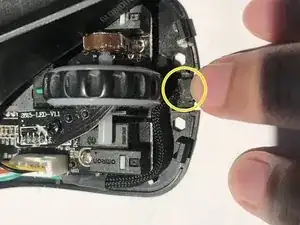

Route the cable through the hole at the front of the mouse. Some cables have a fitted square plastic piece that positions the cable, some have thermoplastic which requires the user to position it themselves.
-
-
-

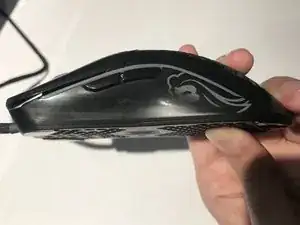

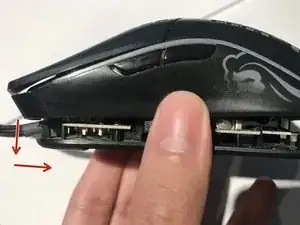

Join the top and bottom housing together with the top around 1cm ahead of the bottom, then pull the top housing back as illustrated.
-

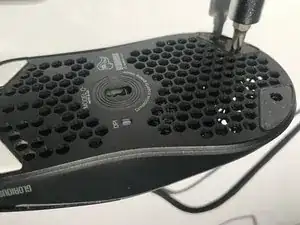

Once the two sides of the shell are together apply pressure until at least one screw is securely fastening them together.
-
