Moultrie I45 GameSpy LCD Screen Replacement

Written By: Sean Hill
  • Comments: 2
Moultrie I45 GameSpy LCD Screen Replacement

Difficulty

Easy

Steps

8

Time Required

15 - 30 minutes

Introduction

This guide outlines how to replace an LCD screen on the Moultrie I45 GameSpy camera

  1. BwvcMvGqLrOUAhZZ

    • Using a Philips head screwdriver, remove the eight 6mm screws located at the bottom of the device.

    make sure to add commas.

    Step 1- remove the 8, 6mm...

    Step 2- Using a philips head screwdriver, remove the 6, 4mm screws...

    Same thing with step 6. Good page!

    Jesica Bartell -

  2. SQXniMkER5vXGpHx

    • Remove the butterfly nut from the lid arm.

  3. iL5KTccQPcT4Sixf

    • Remove the lid-covering.

  4. rH3u6SDRySbXMnkp

    • Using a Phillips head screwdriver, remove the six 4mm screws from the face of the camera.

  5. FVk6w2GKwx5vjQRj

    • Gently separate the two halves of the case.

    • The two halves are connected by a wire. Pulling too roughly can damage the wires and cause the camera to stop functioning.

  6. JBGA5emMcLQOhXrC

    • Using a Philips head screwdriver, remove the 12, 3mm screws from the board.

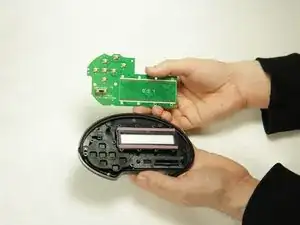

  7. bRumBaHOoSlY1rnK

    • Gently remove the circuit board from the face of the camera

    Mention the two pieces (black piece) of the LCD screen that you need to remove

    Jesica Bartell -

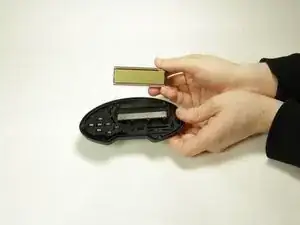

  8. MK3MEyCwTOnHurr3

    • Remove the LCD screen.

Conclusion

To reassemble your device, follow these instructions in reverse order.
