NVIDIA GeForce GTX 970 GPU Replacement

Written By: Nicholas Eichman
  • Comments: 0
NVIDIA GeForce GTX 970 GPU Replacement

Difficulty

Easy

Steps

7

Time Required

10 - 15 minutes

Introduction

Use this guide to replace a faulty or outdated GPU, in this case, an NVIDIA GeForce GTX 970 in a HAF 912 case.

The graphics card, or GPU, is a piece of hardware that allows a computer to display images and videos more effectively. A failing video card can lead to crashes and issues running certain software.

  1. oIQaVjfCi4E3FP2L
    oIQaVjfCi4E3FP2L
    ix1PxXoYlHdoMQkA

    • Unplug all the external cables from the computer and ensure that the power supply is switched off.

  2. wEPRLD42EnPuobkq
    wEPRLD42EnPuobkq
    NhdC1dUvYfsnkSUF

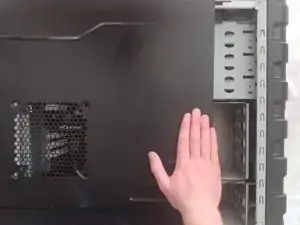

    • Remove the case side panel by applying pressure to the side and sliding the side panel toward the back of the case.

    • Some cases may have screws that must be removed or tabs that must be pressed before the siding will slide off.

  3. fEldRHlwKWKn51M2
    fEldRHlwKWKn51M2
    1EZda2yoiRVjFNjc
    epvX14JTublLMgJC

    • Pinch the lock at the end of the GPU power cable and carefully disconnect it.

  4. K1xkImqHULnMbADE
    K1xkImqHULnMbADE
    cE6U3Jss3MOixANN
    TmNyGgLZeHEpjul2

    • Remove the two Philips #1 mounting screws that attach the GPU to the inside of the case.

  5. EQDmnvhypPpCwOwU
    EQDmnvhypPpCwOwU
    2RpKtj4VWEiMqxIi
    PYGPMQEBTjIih2Qy

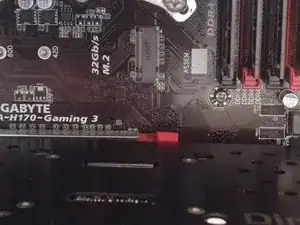

    • Press down the locking tab at the base of the GPU.

  6. ODBkavu2jrEp1WBO

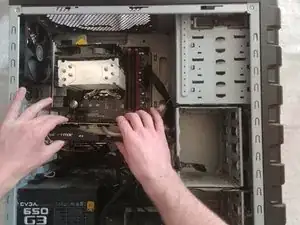

    • Remove the GPU from the case. If it does not move, check to make sure that steps 3-5 were properly performed.

  7. yZVWayx3rJUQMKOJ
    yZVWayx3rJUQMKOJ
    dDdGLtAPFOxBdZTW

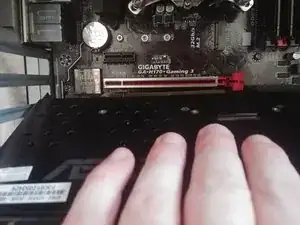

    • When inserting a replacement GPU, ensure that the base is lined up properly with the appropriate slot on the motherboard.

    • Once the replacement GPU is lined up, press down until you hear a click or can see that the locking tab is flipped up again.

Conclusion

To finish reassembly, follow steps 2-4 in reverse order.
