How to access and replace the motherboard. Be careful when taking off the back cover and make sure to carefully unplug all wires.

  1. TB1BDKXkWYV5IocZ
    TB1BDKXkWYV5IocZ
    KkU2n2sfPkJYLIrK
    W2qyYAO5BDoEvpmO
    • Turn the device screen side down.

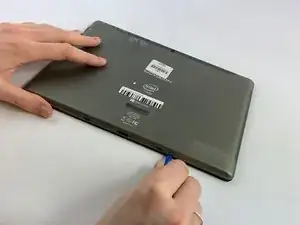

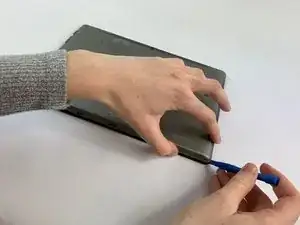

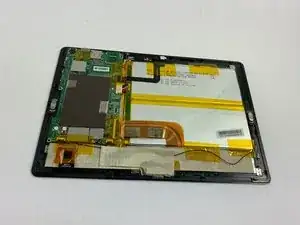

    • Carefully remove the back piece with the iFixit opening tool.

  2. ivBPVqujExTfcbN1

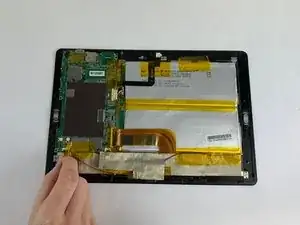

    • Remove the yellow tape covering the motherboard gently with your fingers.

  3. LUCREO1G4YyRdiUV
    LUCREO1G4YyRdiUV
    GO4QmhSFQrjYyYuo
    2XygSFDBSUDaNJ3F

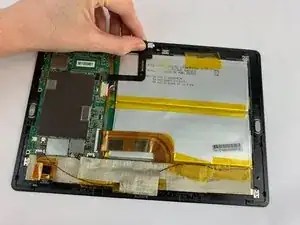

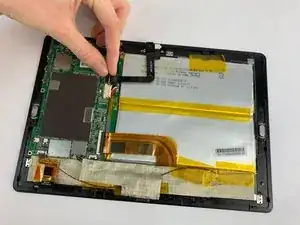

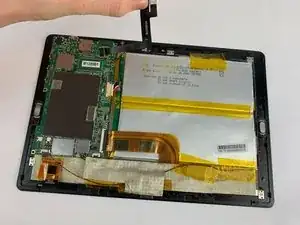

    • Pull the camera plug upward and away from the motherboard with your fingers.

    • Gently pull the camera from the device. The camera is held by tension.

  4. B4tDJROgtZTLIbgv

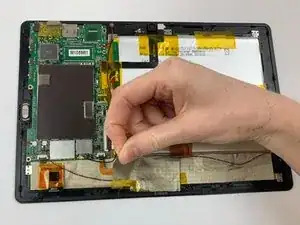

    • Carefully remove silver tape with your fingers.

  5. pNsupJxsFWvdqrZ4
    pNsupJxsFWvdqrZ4
    H1xMN4BpoOVtxD65

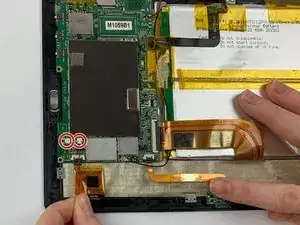

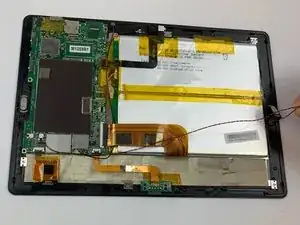

    • Remove speakers gently using your fingers, they pop out easily.

    • Disconnect cords attached to the speaker from white pod.

  6. WcojB4xTkkixhU42

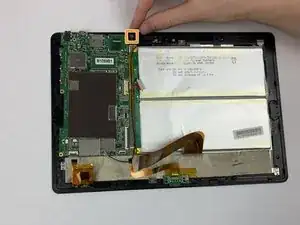

    • Disconnect the press-fit black and red curly wire from where it connects on the motherboard.

  7. mux1d3fsgwxJ16rh
    mux1d3fsgwxJ16rh
    mSSkh4LKGZWk2QMt
    Rl3cJKXkwQRoJQQ3

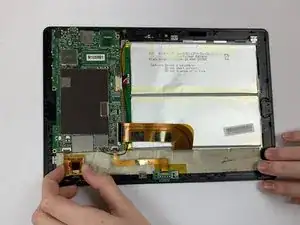

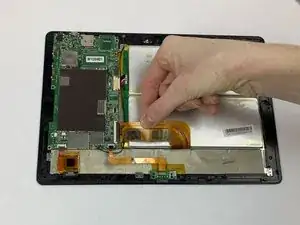

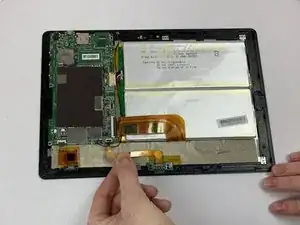

    • Gently remove the battery's three ZIF connectors from the motherboard. Use your fingers.

    • Be careful not to puncture the battery.

  8. ELiQKRPCYSN4dcwq
    ELiQKRPCYSN4dcwq
    JWmk4yMXs3F1xo62

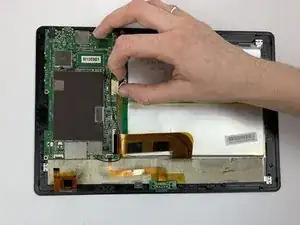

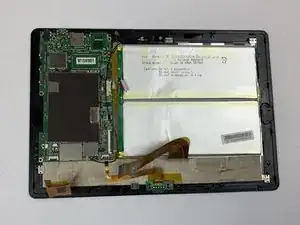

    • Disconnect the battery's bundled cable connector from the motherboard with fingers.

  9. HX1ZR4HDBIGraGge
    HX1ZR4HDBIGraGge
    YQaPxy6lnBsRUSWn
    IkQoCIOQlOaiAM5y

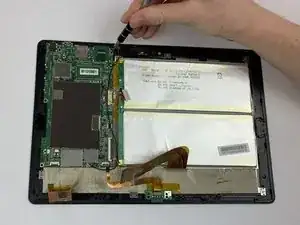

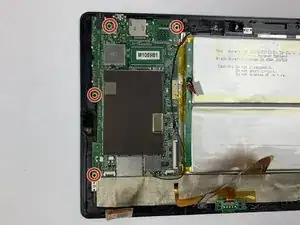

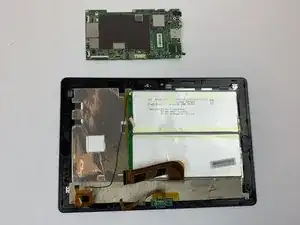

    • Remove the four black 3.32mm screws on the corners of the motherboard using the Phillips #000 screwdriver. The motherboard should come out easily.

Conclusion

To reassemble your device, follow these instructions in reverse order.
