Pac-Man Connect and Play Joystick Switchboard Replacement

Written By: Bobrobot1
  • Comments: 0
Pac-Man Connect and Play Joystick Switchboard Replacement

Difficulty

Easy

Steps

5

Time Required

20 minutes

Introduction

  1. BHdiBxtH4gV2VnVD
    BHdiBxtH4gV2VnVD
    ePgrOKAJUvOvwwpZ

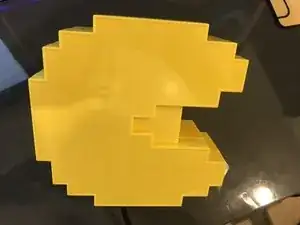

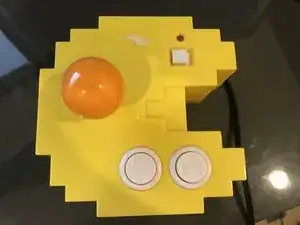

    • Flip over the device

    • Ensure the device has no power and is not plugged into a TV

  2. UuUp45MVRoLLg61X

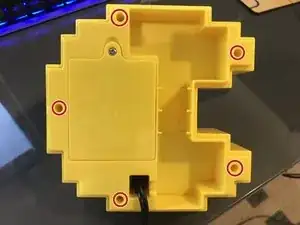

    • Remove these 5 Phillips Head screws

  3. 3RcL2FIxTWSCamHu
    3RcL2FIxTWSCamHu
    OB2ZZjLtfEayNYGB

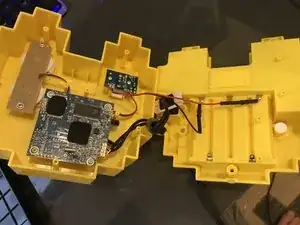

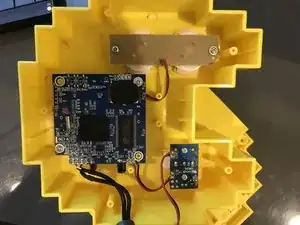

    • You can now open the device

  4. qptGAdqUQW6UuqNj

    • Remove these 2 screws (phillips)

  5. 4NCyHZbdM1bPK56i
    4NCyHZbdM1bPK56i
    MgnYFkKEauBQfK3n
    Ebemylcfq3bvZvVK

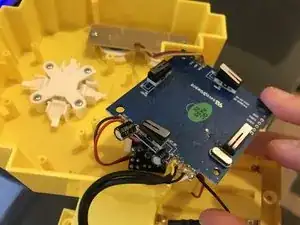

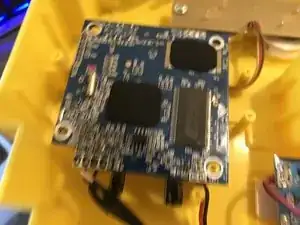

    • You can now remove the board

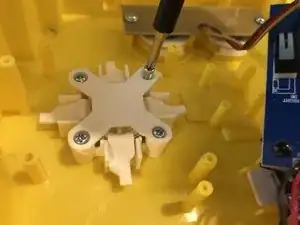

    • You can, at this time, also remove the plastic X that holds the joystick spring in place.

Conclusion

To reassemble your device, follow these instructions in reverse order.
