Introduction
This guide will walk you through the process of replacing a bad optical drive in a Packard Bell 4x4 desktop.
Tools
Parts
-
-
Using a Phillips screwdriver, remove the three Phillips head screws (circled in red) from the back of the computer.
-
-
-
With both hands on each side of the case, slide the top cover toward you. Lift it off the computer.
-
-
-
Remove the two Philips head screws with your Philips screwdriver. You may have to lubricate these screws as they can be very difficult to remove.
-
-
-
Remove the 1 Philips head screw from the left hand side of the case if there is one. Again, you may need to lubricate this screw.
-
-
-
Once the screws are removed, disconnect all cables from the optical drive, hard drive and floppy drive.
-
-
-
Slide the drive cage back. An easy way to do this is the push on the optical drive from the front.
-
-
-
Remove the 1 Philips head screw with your Phillips screwdriver. There should not be a screw in the right hole.
-
-
-

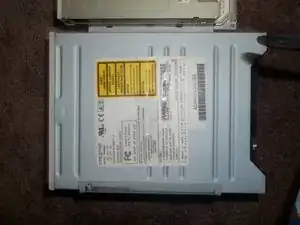

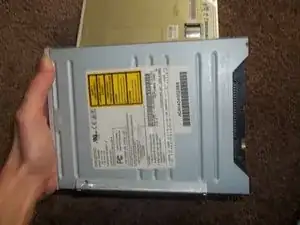

Slide the optical drive forward and lift it up from the right side, the side closest to the floppy drive.
-
-
-

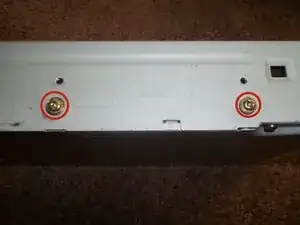

Remove the 2 Philips head screws with your Philips screwdriver. Put these screws onto your new optical drive.
-
To reassemble your device, follow these instructions in reverse order.
