Panasonic Camera DMC-TZ3 LCD DISPLAY Replacement

Written By: Sales Cameraparts4you
  • Comments: 4
Panasonic Camera DMC-TZ3 LCD DISPLAY Replacement

Difficulty

Moderate

Steps

10

Time Required

30 minutes

Introduction

Step by step guide for replacing your damaged LCD Display.

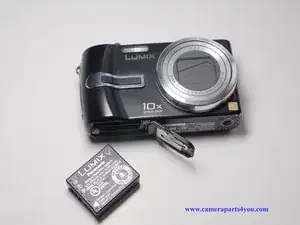

  1. 5TjowZ12irbZAbkt

    • Remove the battery and memory card from the device.

  2. JXuse4WBCJyNCMkL

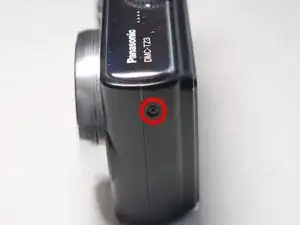

    • Remove the single .5mm screw on the left side of the camera.

  3. Df1UKLM5stKteHCZ

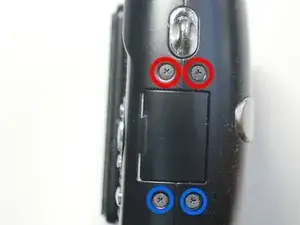

    • Remove 4 (0.5mm) screws from the right side of the camera.

    • There are two screws at the top.

    • There are two screws at the bottom.

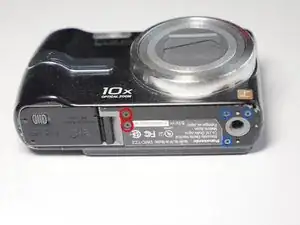

  4. HghNyc2sqo1TZvDN

    • Remove 5 screws from the base of the camera.

    • There are two (0.2mm) screws next to the battery compartment.

    • There are three (0.5mm) screws around the tripod base mount.

  5. keDCjXMccHTfBQmP

    • Slowly open the back cover away from the device

    • The wrist strap bar can easily be lost so now is a good time to remove it.

    • Use caution. The rear cover is attached to the Main PCB via cables. You will need to release these cables before removing the rear cover.

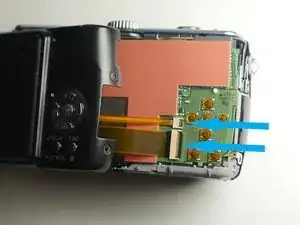

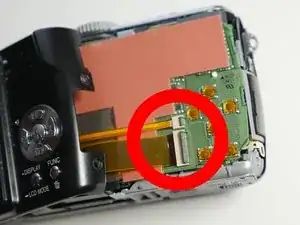

  6. k2VSJkpKCLu6GTTH
    k2VSJkpKCLu6GTTH
    fqVCQgiZZfMIvVCR

    • Detach both ribbon cables using a spudger or other method.

    • Lift the black clip upward, unlocking the ribbon cable

    • Once the clip is in the up position you can slide the cable out. Release cable by pulling the cable out.

    • DO NOT pull on the Back case to release the cable.

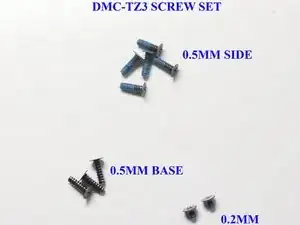

  7. AffsdHVr5WVdxH5y

    • Screw Arrangements

    • Make sure you organize your screws to make re-assembly easier.

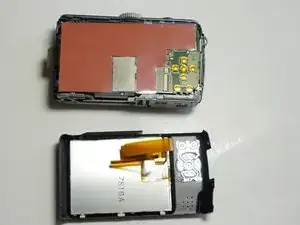

  8. xrE4wLUFxGxjgM1B

    • Remove the back casing from the camera.

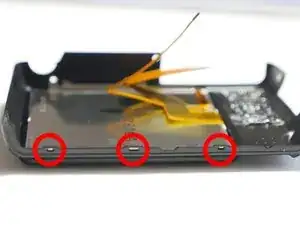

  9. FxKWWnEAEZeEQcLQ
    FxKWWnEAEZeEQcLQ
    lJDNqBSTVH5JJNs1
    CKql1RLVWlWfPL3T

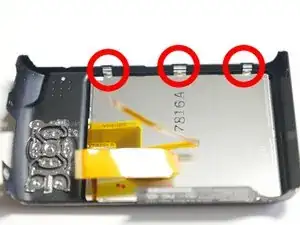

    • Use a spudger or other tool to release the 3 clips between the LCD case and housing.

    • Note: when re-assembly all 3 clips need to be seated in the grooves as shown in the 2nd picture.

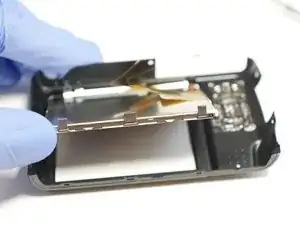

    • Lift LCD out as shown in 3rd picture

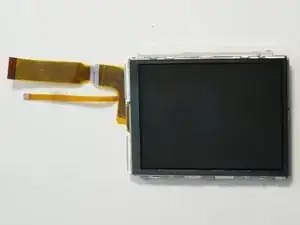

  10. oVdgfOu2LwTROaLx

    Very well presented and helpful - thank you.

    I can’t be sure but think the screws are more likely to be JIS than Philips.

    I need the replacement display with backlight and have so far been unable to find one.

    George Winspur -

Conclusion

To reassemble your device, follow these instructions in reverse order.
