Peugeot Boxer Headlamp Bulb Replacement

Written By: Kit Marsden
  • Comments: 0
Peugeot Boxer Headlamp Bulb Replacement

Difficulty

Easy

Steps

9

Time Required

20 - 30 minutes

Introduction

Change headlamp bulbs on Peugeot Boxer van (2006 onwards).

  1. 5IlnIOmL2LDFTSRt

    • Open the passenger side door to find the bonnet release catch.

    • Pull the catch down and towards you to release the bonnet of the van.

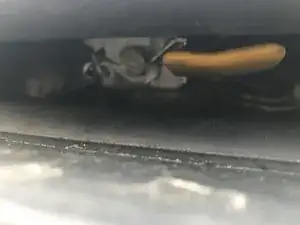

  2. vXZsgUSIFvUVdpDh

    • Once the bonnet is loosened, find the yellow handle of the secondary bonnet catch by feeling underneath

    • Once you locate the catch, push the bonnet catch upwards, this will release the bonnet

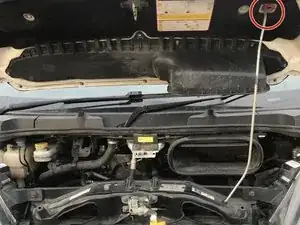

  3. 6dfZxH5Z6U6qmwyd

    • Use the strut, located to the right of the hood to prop open the bonnet.

    • Make sure the strut is secure to the hood! If the strut comes down, this may damage your car and strut!

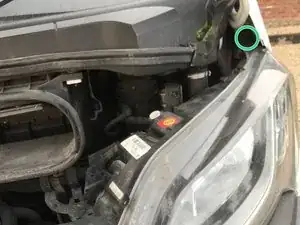

  4. ehL1apVSDSHhXoSU
    ehL1apVSDSHhXoSU

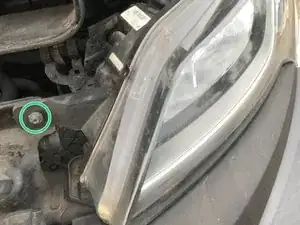

    eAMZCvgmcK3oESTC

    • Remove the two Torx bolts holding the headlamp assembly at each corner.

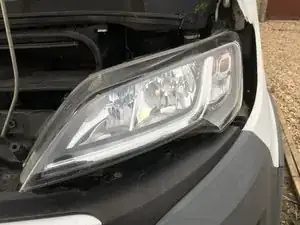

  5. KJ6huB3QcxNJTreS

    • Gently slide headlamp assembly out

    • Make sure to move the headlight diagonally towards you and towards the centre of the vehicle

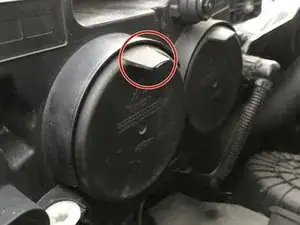

  6. upML5BCgAKFQH54l
    upML5BCgAKFQH54l
    kNnMScMBhM4UJUpA

    • Pull the tab on rubber cap, revealing the back of the headlamp bulb.

  7. yvd2tCn5fHWSXYKx

    • Remove the electrical connection from the old bulb (it should just pull off).

    • Make a note of which way up the plug was for when you connect everything back up again.

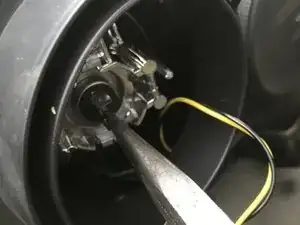

  8. bi15d2Q5yPZwPNFE

    • With needle-nosed pliers, carefully 'wiggle' the old bulb out from its housing.

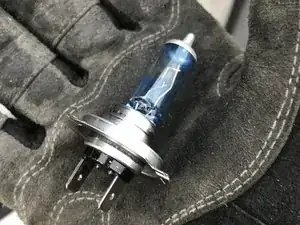

  9. XMeHQmACZhP1ZjEF

    • Locate your new bulb. Taking care to make sure it is the right way up, push it firmly into place until you feel it clip in.

Conclusion

To reassemble your device, follow these instructions in reverse order.
