Introduction
Replace your power steering rack &pinion
Tools
-
-

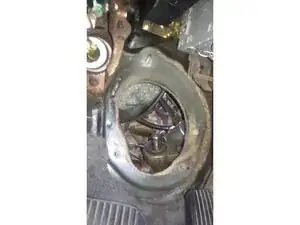

From inside the vehicle on drivers side use a 11mm socket to remove the three nuts that secure the boot to the firewall
-

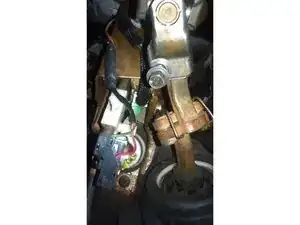

Using a 10mm sockstRemove the two pinch bolts form the shaft and remove shaft & boot
-
-
-
raise and support the front of the vehicle
-
place the jack stands in the reinforced area just behind the engine cradle
-
Use a 19mm socket remove both front tires
-
remove the cotter pin and castle nuts from tie rod ends
-
remove tie rod ends from steering knuckle
-
-
-
remove the two Nuts and Bolts that secured flex pipe to the y pipe
-
From inside the engine compartment remove the three nuts that secure the strut to the strut Tower on both sides
-
place a floor jack with a short piece of 2 by 6 under the transmission pan
-
Raise Jack until it just starts to lift the transmission
-
-
-
loosen the two front bolts of the subframe but do not remove
-
remove the two Bolts from the rear of the subframe
-
Slowly lower jack in till you have about 4 inches of clearance
-
Remove the two nuts that secure the steering rack to the subframe
-
Lift the steering rack up until the bolts clear rotate rack to gain access to the hose fittings and remove
-
Slide rack to the left and remove thru drivers side wheel well
-
To reassemble your device, follow these instructions in reverse order.
