Removing the lid

Place JuiceBox on a horizontal surface for easiest work.

Three different types of screws were used throughout the history of JuiceBox versions.

Philips #2 (silver screw)

2.5mm hex (rusted black screw)

T20h security Torx (black screw)

If you have a 2.5mm hex screw, be extremely careful with it - they are easy to strip and tend to bind. Use exactly a clean 2.5mm hex bit - don't substitute a Torx or other size. Press down and turn counterclockwise strongly and carefully to unscrew.

Once 4 screws are removed, if your box has LEDs, pay close attention to the next step before proceeding.

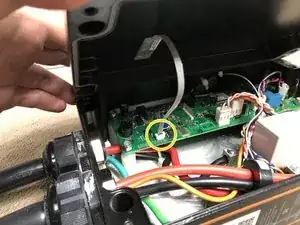

If your box has LEDs, slowly tilt the edge of the case away, revealing the ribbon cable connected to the board.

Lift the lock in the direction of the ribbon cable, and you should feel the ribbon cable release.

You may now remove the ribbon cable from the board, and place the lid aside.

During reassembly, note that the ribbon cable contacts should face opposite the lock slider (as in photo). To re-insert the ribbon cable, first release the lock, insert the cable, then press the lock back down to latch it in place.
