Repairing a Loose Pan Handle

Written By: Augustus Gunnerson
  • Comments: 0
Repairing a Loose Pan Handle

Difficulty

Easy

Steps

8

Time Required

10 - 15 minutes

Introduction

In this guide, you will learn how to fix a loose pan handle. This will be done by removing the handle, cleaning the handle base, and repairing any warps. A warp is when the metal bends out of shape. This does not work on cast iron, since the handle does not come off.

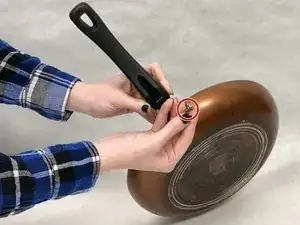

  1. sveSdjGfHxJhIFOa
    sveSdjGfHxJhIFOa
    xtQ1heJ3wW4l2fAD
    UZUWKDWsfFDj5xPb

    • Identify the screw keeping the handle in place.

    • Most screws are located on the underside, and a typical pan has only one screw. If there are more, locate them as well.

    • Use a standard Phillips screwdriver to remove the screw(s).

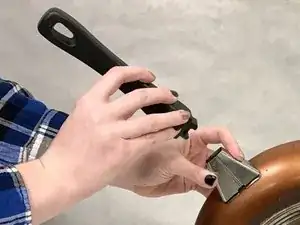

  2. AB4yRjLOrJwNMeaX
    AB4yRjLOrJwNMeaX
    ZFBdZZ6qsqXGTL2C
    ycqCUqmqsNPpLDJ1

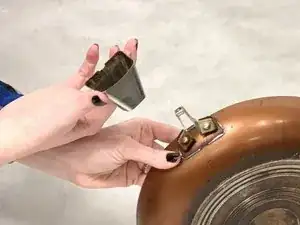

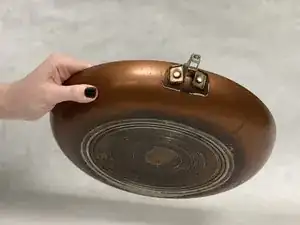

    • Remove the handle and the metal bar to expose the base of the pan handle.

    • The base is where the full handle and the pan meet.

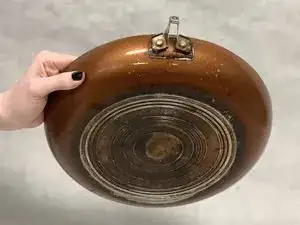

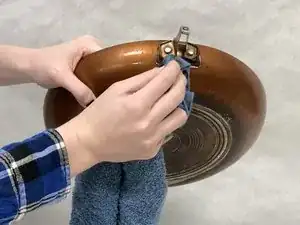

  3. mgbc12S5GMlZHah5
    mgbc12S5GMlZHah5
    KmAAdKwIQLYORmNi
    CUfxsLLofoxBZPC2

    • Determine what kind of cleaning is required. I used a Lysol solution, which can be substituted with soap and water.

    • If there is rust or burn marks, there are two guides on iFixit by other creators that work well. Their links can be followed by their respective words.

    • Apply your cleaning solution to the base.

    • If necessary, apply cleaning solution to the handle and metal bar, as well.

    • Wipe the area until it is clean, repeat if necessary.

  4. CVcLJIwsOZXhWv4P
    CVcLJIwsOZXhWv4P
    TNCnE6ut4WFyGqE6

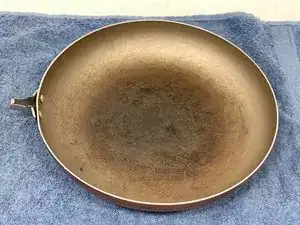

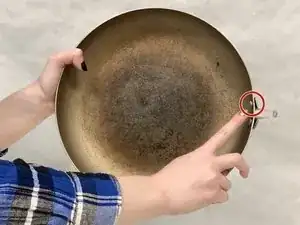

    • Identify the warp on the pan, if any.

    • Warps can impact the handle, making it loose or rest incorrectly. This can occur with even small warps, so look closely at your pan.

    • Set the pan on top of a flat cloth.

    • If the warp is going in towards the pan, lay it down with the inside of the pan facing up. If the warp is going out away from the pan, lay it down with the bottom of the pan facing up.

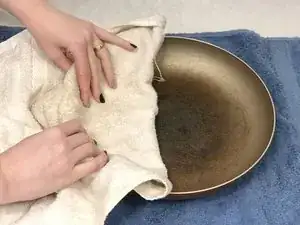

  5. NgMOp5yjj6mnDB2I

    • If you do not use cloths, you will scratch the pan when you do Step 6.

    • Cover the warp with a second cloth. We used a different dish towel.

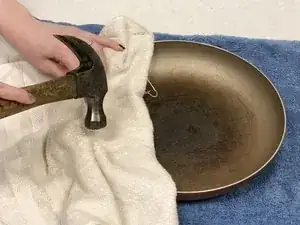

  6. NVdKA2ZfsBVTGUb4

    • Do not hammer too forcefully otherwise the pan will warp the opposite way.

    • Hammer the warp carefully.

    • It should take 2-3 strikes for smaller warps and more than 3 for bigger warps.

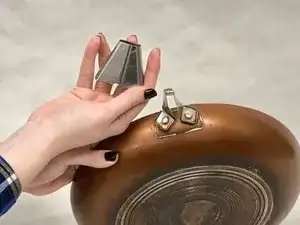

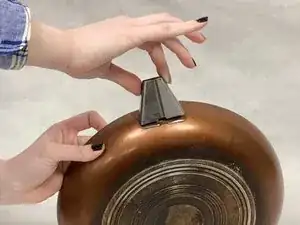

  7. FwJlUTFKc3rdPbEK
    FwJlUTFKc3rdPbEK
    obEPFELQhfDlA2tD

    • Take the metal bar and place it back over the base.

  8. Ym2RYoy1xDAGLbS4
    Ym2RYoy1xDAGLbS4
    6hmgFQFReuLv1IpS
    uYrK2ARkR4gl5Qlj

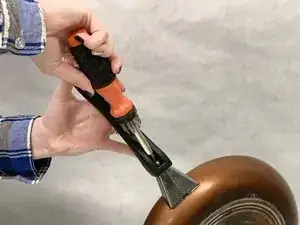

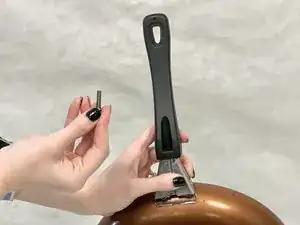

    • Align the handle onto the metal bar.

    • Push the handle into the metal bar socket.

    • Put the screw back in the socket.

    • Use the screw driver to tighten the screw.

    • To make sure it's not too loose, pick it up by the handle to test it. If it wobbles it is too loose, and needs to be tightened more.

Conclusion

Repeat this for any number of pans.
