Introduction

If the zipper on a jacket breaks and needs to be replaced, it can be difficult to sew in a new one. This is especially true if the jacket is lined or if it is made of stretchy fabric. Then unpicking the seams can be very tedious and difficult.

In this tutorial, I'll show you how to sew a new zipper on a jacket without having to unravel seams. My jacket is lined and made of sweat fabric (stretchy fine knit).

Important: Not in every case a broken zipper really needs to be replaced! Sometimes it is enough to clean and grease it or replace the Zipper/slider. Also other zipper damage can be repaired without a complete replacement.

Your new zipper should ideally be the same length as the old one. If you can't get that length commercially, you can either take one that's just a few inches shorter (that's what I did in this case) - or take a longer one and shorten it at the top. A good guide on how to shorten a too long jacket zipper at the top can be found at SewSimple, for example.

For the inside you will need fabric strips as facings:

  • If your jacket is made of stretchy fabric, use stretchy fabric for the facings as well; if the jacket is made of solid fabric, use solid for the facings as well.
  • The fabric for the slips should not be too thin, otherwise the slips will not be strong enough, and not too thick, otherwise they will be uncomfortable.
  • The fabric strips should be 6-8 cm wide and about 5 cm longer than the zipper you want to sew in.
  1. imSA55N4ANKENTmx
    imSA55N4ANKENTmx
    BUZnTFDxyN3wYcm6

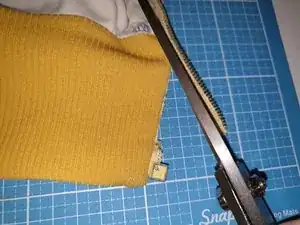

    • Open the zipper.

    • The bottom of the zipper, where the box piece is, is usually reinforced with plastic. The box piece is the metal piece at the bottom that you use to thread the zipper.

    • Just above the reinforced piece, carefully cut through the spiral and zipper tape, to just in front of the fabric. Mine broke right at that point - handy in this case.

    • If you don't have a spiral zipper, but a profile zipper on your jacket, make sure you cut between the teeth to save your scissors. Or use a sharp knife for that.

    • Cut the zipper along the edge of the fabric to the top of the zipper. Cut as close to the fabric as possible without damaging it.

    • Do the same with the other half of the zipper.

  2. Lu1EHypvTWWr2ZTO
    Lu1EHypvTWWr2ZTO

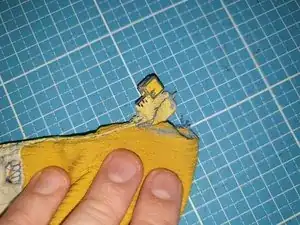

    Jw6UB2PLZUiKIqPr
    vMHGBEQF5iZiB1Qf

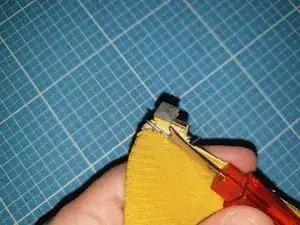

    • I separate out the reinforced piece with the box piece so I can sew the new zipper in there neatly, too.

    • Using the seam ripper, carefully unravel the seams around the bottom end of the zipper until you can pull it out.

    • Cut off the bottom end of the zipper. Now there should be no teeth left on the remaining part of the old zipper tape.

    • Do the same with the other half of the zipper.

  3. B2P5cx1C5GUKGN1t
    B2P5cx1C5GUKGN1t
    MWPMhacp36HRgx4Z
    P6cKO5rKuQFYn12K

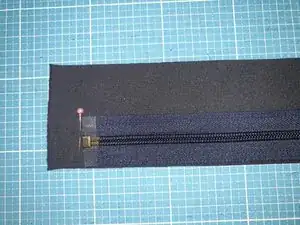

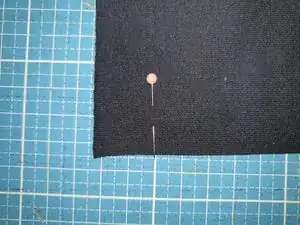

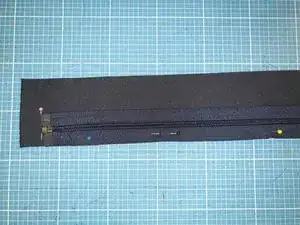

    • The fabric strips will be on the inside as a backing. This way the zipper tape is also covered with fabric from the inside, which is more comfortable to wear. In addition, especially the lower end of the zipper can be nicely bordered and additionally stabilized.

    • If the jacket is made of a stretchy fabric, choose a stretchy fabric for the binding. If the jacket is made of a solid (= non-stretch) fabric, choose a solid fabric. In both cases, the fabric should not be too thin, because otherwise it won't be sturdy enough, but also not too thick, so it won't be uncomfortable.

    • My jacket is made of sweat fabric. For the lining I use summer sweat (French Terry). I found a few pieces in my scraps box that match the zipper well in color.

    • The fabric strips should be about 5 cm longer than the new zipper, and 6-8 cm wide.

    • Place a strip of fabric with the right (nice) side in front of you. Measure 2 cm from the end and mark the spot with a needle or tailor's chalk.

    • Then place the new zipper on the fabric strip so that the bottom end with the box part exactly touches the mark. The zipper should lie completely on the fabric strip, edge to edge.

    • The zipper must lie with the top side up! I.e. it lies left on right on the fabric strip.

    • Pin the zipper to the fabric strip along the edge with pins.

  4. FIwuE3UYttASoWuI

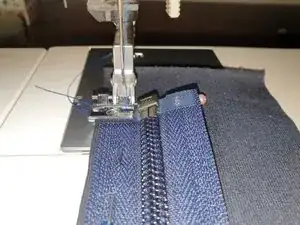

    FIwuE3UYttASoWuI
    EODRdhBaa3hqH4Bk
    VXAFMNQEXDe1xvf2

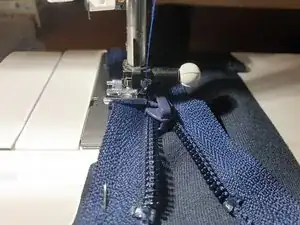

    • If you have a zipper foot for your sewing machine, insert it. Keep the needle in the middle position, the seam does not have to go right next to the zipper teeth.

    • Set the stitch length as long as possible (5-6).

    • Start sewing at the bottom of the zipper, where it is reinforced with plastic. The sewing machine will pass through it without any problems.

    • Bartack the seam well with a few stitches back and forth.

    • Sew the zipper on. Run the presser foot right along the teeth of the zipper, this way the seam will be straight.

    • When you are still 6-8 inches from the top, stop, turn the handwheel so the needle lowers and sticks in the fabric, and raise the presser foot. Then open the zipper and slide the zipper past the needle under the presser foot.

    • Lower the presser foot and finish sewing the zipper. Also backtack the top of the seam with a few stitches back and forth.

  5. PXgENrm6Fqrfbsda
    PXgENrm6Fqrfbsda
    vfjRKVpZEjLoEYgo

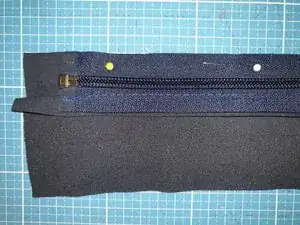

    • Place the second strip of fabric in front of you with the right (pretty) side facing up.

    • Fold over the already sewn-on fabric strip and place it right sides together on the second strip. The narrow sides of the strips are exactly on top of each other, and the zipper is edge to edge with the second strip of fabric.

    • The zipper must be face up! If it doesn't, check to make sure the first strip was sewn on correctly.

    • Pin the zipper and the second strip of fabric together.

    • Make sure that the already sewn-on strip of fabric is folded away well and not pinned or sewn together with it.

  6. omnKnsKQoFuE1Y6x
    omnKnsKQoFuE1Y6x
    uC1JQeoDPxE6ICxg
    xauYPykNT145tmX6

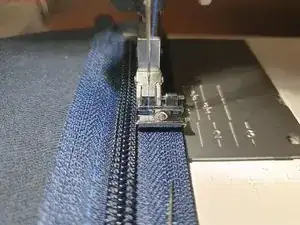

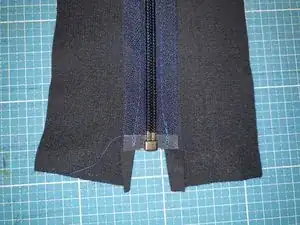

    • Sew the second strip of fabric to the zipper. Also start at the bottom; the zipper foot must be adjusted so that the needle runs along its other side.

    • If you didn't have the needle in a middle position for the first strip, you'll need to adjust its position now as well.

    • Sew the second strip of fabric in the same way as the first (step 4)

    • When both strips of fabric are sewn on, place the zipper face up in front of you. Check the following points:

    • The fabric strips should fold over so that they are wrong side up.

    • The entire zipper is visible, including the zipper tape.

    • The overhanging ends of the fabric strips at the bottom are the same length.

    • If your overlays are made of a fabric that frays easily, you should now serge the non-sewn long edge of the overlays (e.g. with the overlock or a wide zigzag stitch). This is not necessary with knitted fabrics, as in my case, as they will not fray.

  7. IiKvaeaH4yZFAsoi

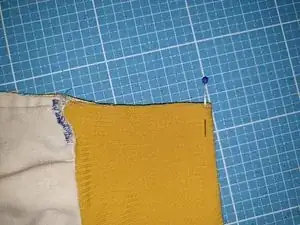

    IiKvaeaH4yZFAsoi
    rE2nREHlWUoOFD3A
    jMDykPAeBGPLJC22

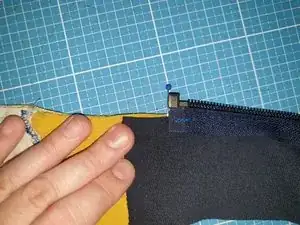

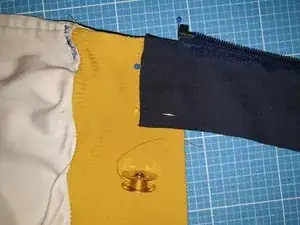

    • Lay the jacket in front of you with the inside facing up. Mark the place where the zipper should start with a pin. I want mine to go all the way down, if possible, so I put the pin in just 2 mm from the bottom of the cuff.

    • Open the zipper all the way. Fold the slips over so that the zipper teeth are exposed. Place the facings in front of you with the wrong side facing up.

    • Place the matching half with the facing on top of the cuff so that the end of the zipper is right against the needle.

    • The facing and zipper are not facing the jacket, they are facing the other side.

    • Pin the bottom end of the facing to the cuff.

    • For the next step, choose a thread as bobbin thread that matches the color of the cuff.

  8. LjklmZZwA1yuHaiq
    LjklmZZwA1yuHaiq
    LwGMWMZA5DxuL1kN

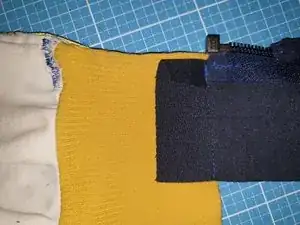

    fpc2xjvBAZQ6KFUn

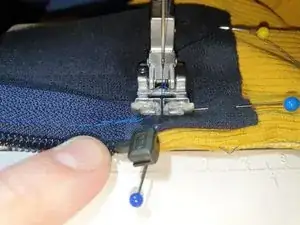

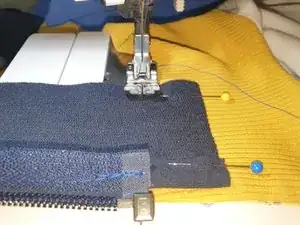

    • It's best to start on the side that doesn't have the zipper - the fabric is thinner there and will feed better.

    • The seam should be at the same distance where you placed the marking pin in step 7, in my case 2 mm.

    • Choose a normal straight stitch (stitch length 3). Bartack the seam and sew the facing onto the cuff. When you get to the zipper, sew as close as possible to its bottom edge. Do not sew over the zipper! And don't forget to take out the marking pin....

  9. xH3OiJ2vafpmTSJd
    xH3OiJ2vafpmTSJd
    35NSAWI1tl4Ga5Ho
    pEfFkXLWWuE6PmSF

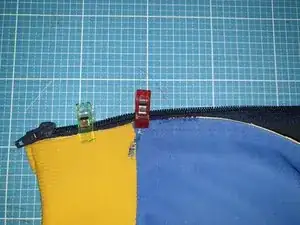

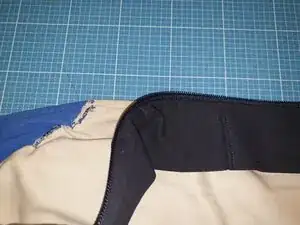

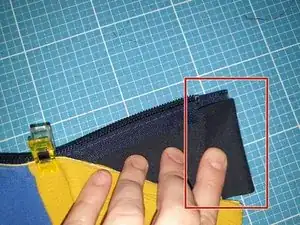

    • Now flap the facing and zipper over the seam you just sewed so that the zipper is between the jacket and the facing. The zipper tape should now no longer be visible.

    • Place the jacket opening against the zipper and secure with fabric clips. The edge of the jacket fabric should end as close as possible to the seam where you sewed the zipper to the facing.

    • If you don't have fabric clips, you can also use clothespins. Pins wouldn't be able to get through the multiple layers without distorting the fabric.

    • When you get to the top, fold the overhanging part of the fabric strip around the top of the zipper. Secure everything in place with a fabric clip.

  10. dACGxwCnKvoaFUhR
    dACGxwCnKvoaFUhR

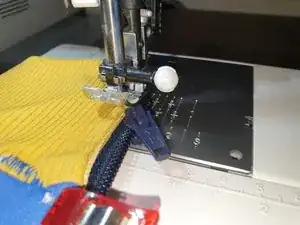

    1QOr6FQC4F5qYMLn

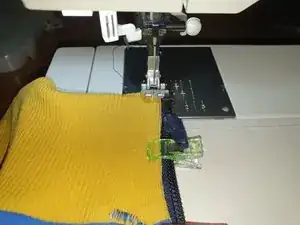

    • Be sure to use a very strong needle for this seam, preferably a 100 or 110 gauge jeans needle, or alternatively a 100 gauge universal needle. A regular 80 gauge needle would not get through the layers of fabric and would bend or break.

    • On my jacket, the layers of fabric are now so thick that I can sew with the regular sewing foot because it just slides away over the teeth. If your zipper teeth are thicker than the layers of fabric next to them, use a zipper foot for that seam as well.

    • Choose a top thread that matches the jacket fabric and a bobbin thread that matches the facing fabric. Set a slightly longer stitch length than normal so you can get through the thick layers of fabric easily (length 3-3.5).

    • Start at the bottom. Move the zipper up a bit so you can start sewing close to the box piece.

    • Lock the seam with a few stitches back and forth and continue sewing close to the zipper.

    • Keep the needle in the fabric, lift the presser foot and slide the zipper past the needle.

  11. 2k14PtZDHeCBRuiG
    2k14PtZDHeCBRuiG

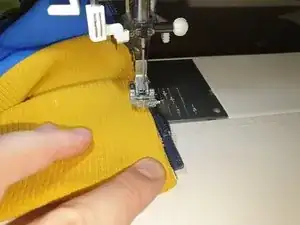

    vTrUKLBxH3PplqmZ

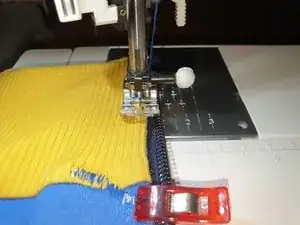

    • Lower the presser foot and topstitch the zipper and facing to the jacket opening. Make sure the facing is smooth under the zipper and keep it taut as you sew, so there are no overhangs that the zipper could snag on later.

    • When you get to the top, hold it tight so the folded end of the fabric strip doesn't slip out.

  12. kMcvwcDv4rZtoMVW
    kMcvwcDv4rZtoMVW

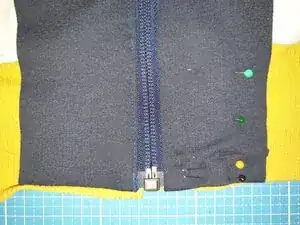

    bUlhQE1YIFInfSle

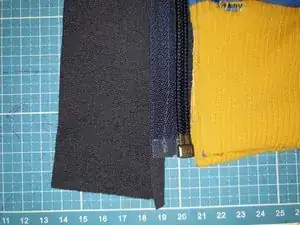

    • Close the zipper.

    • Then turn the jacket inside out so that it lies in front of you with the inside facing up.

    • Place the side of the jacket that is not yet sewn to the zipper as it will be sewn later. It is important that the bottom of the cuffs end at exactly the same height. (It doesn't look like that in the picture, because the fabric curves a bit, but actually the two sides are at the same height).

    • Fold the facing that is not yet sewn to the jacket around the zipper. Then fold it onto the jacket and pin it in place with several pins.

  13. qTmFAPTURYPPGVO2
    qTmFAPTURYPPGVO2
    YP3UaUW1Aslb4CDf

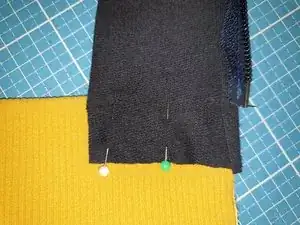

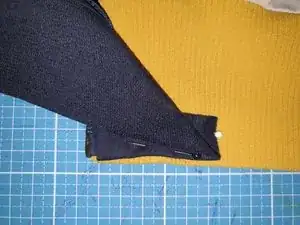

    • Open the zipper.

    • Now carefully take out the upper pins. Hold the fabric tightly. As soon as you can carefully fold away the upper part of the cover and the folded-over part becomes visible underneath, pin it in place.

    • Then fold the cover completely away and pin it with a few more pins so that you can sew it right away.

  14. CFMTtRfHPuXsWucK

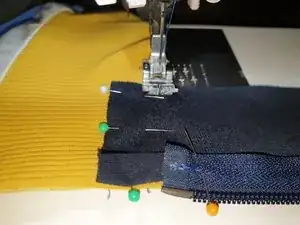

    • Sew the 2nd facing to the bottom of the waistband in the same way as the 1st (step 8).

    • Be careful not to sew over the zipper tape, but just next to it.

  15. NRd1ngtBm2AvAOHF
    NRd1ngtBm2AvAOHF
    Nx5ZkbLuvhaHxKWH
    ucx4IW2iyXjQONQN

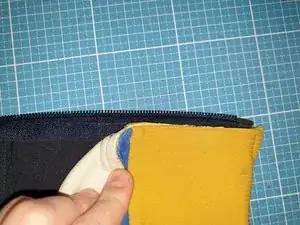

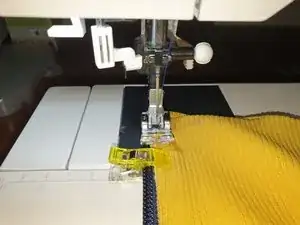

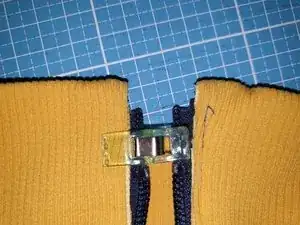

    • Now fold the facing onto the jacket. The edge of the jacket fabric should lie on the seam with which you sewed the zipper to the facing.

    • Secure with fabric clips.

    • When you get to the top, check that the zipper ends the same distance from the top of the jacket on both sides. Correct if necessary.

    • Sew the 2nd piece to the jacket in the same way as the 1st (step 10).

    • Start at the bottom again. This time you don't have to pay attention to the zipper.

    • At the top, be careful to keep the excess fabric folded around the zipper.

  16. IgLsNMkfrNDw1CNi
    IgLsNMkfrNDw1CNi
    EuturFybqej3JjdW

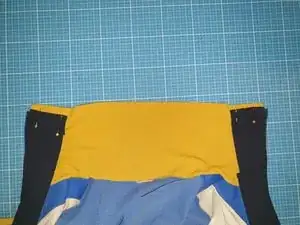

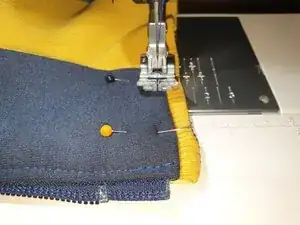

    • Now you only have to sew the facing to the upper edge. Pin them in place with pins. The top edge of the facings should run parallel to the top edge of the jacket.

    • For the bobbin thread, choose a thread that matches the color of the jacket's top fabric on this piece.

    • Topstitch the facings with a single straight stitch close to the edge. Start sewing on the side where the zipper is not, so that the fabric is transported better.

    • Bartack the seam beginning and end with a few stitches back and forth.

    • Leave the long side of the facing open so that no seam is visible on the jacket.

    • If this bothers you, you can also sew the facings in place. If the fabric is stretchy, use an elastic stitch, such as a zigzag or the stich that looks like a lightning bolt. With a firm fabric, a straight stitch will suffice.

    • Alternatively, you can spot-fix the facing in a few places by sinking the feed dog and sewing a few zigzag stitches (which will not make a zigzag, but a small bar that is less visible from the outside than a seam).

    • If your jacket has a lining, you can also hand stitch the facings in place with a blind stitch.

  17. s1WjVvhnkwRKXPXw
    s1WjVvhnkwRKXPXw

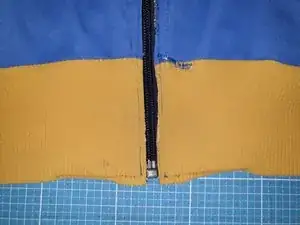

    YJGthMHOoUX3jba3

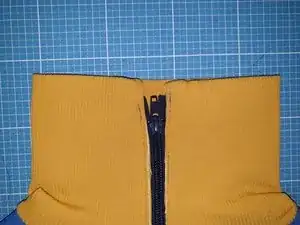

    • This is how the zipper now looks on the top and bottom.

Conclusion

Finished - your jacket is saved!
