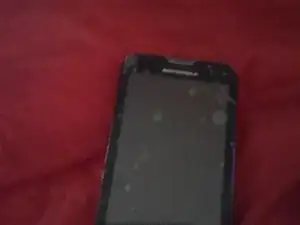

Replacing Motorola Photon Q 4G LTE Front Glass Digitizer

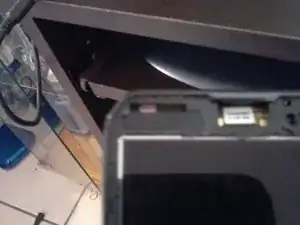

Use the pry tool around edges of case where keyboard is located to take the back cover off. Be careful not to break the cover where the SD card slot is; the cover is very thin and fragile in that area. (I broke mine.)

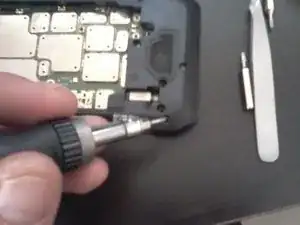

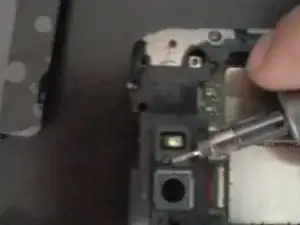

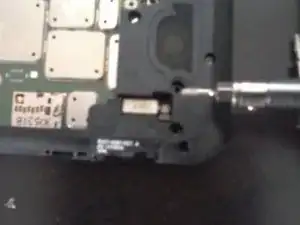

Remove the black screws around the outer edges and the 4 silver screws. (You'll find a silver screw on each side of the vibrator motor and on each side of the rear camera.)

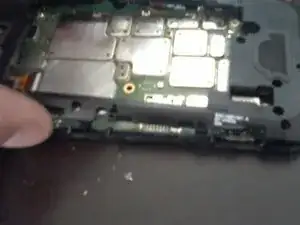

Now remove the circuit board's protective cover (the one you just unscrewed) by lifting it gently from the top. Three tabs need to be unclipped using the pry tool. Unclip at least 2 of the 3 clips and final tab should loosen on its own.

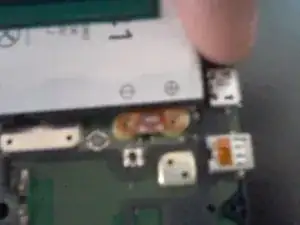

Now remove the 2 big silver screws in the battery ribbon cable that is attached to the circut board...

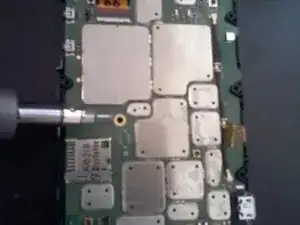

remove the one silver screw in the center of the circuit board which is holding it down

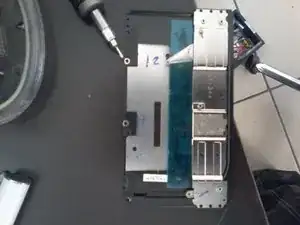

Remove the 7 screws ont the outer edge of the back lcd display

remove the back plate to the LCD screen being careful not to tear the ribbon cables and slide them through the slot.. then set it aside

remove the 3 screws that hold the top circuit board to the phone

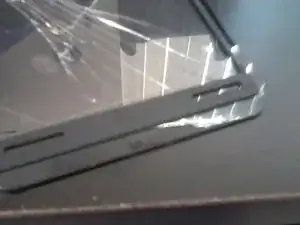

remove the rubber on the back of digitizer and transfer it over to the new digitizer make sure to use a heat gun to eat the adhesive on the backside of rubber to get off easily

slowly pulled the speaker away from digitizer and transfer that over to your new digitizer is well.. be careful not to break your speaker I broke mine mine came apart and now it doesn't work at is my phone in speaker phone keep that in mind

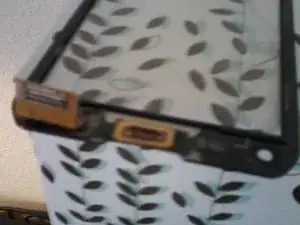

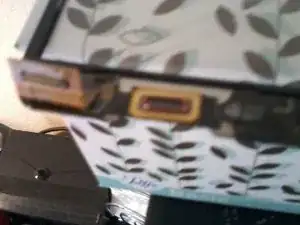

now get your new digitizer and take the plastic protective covering of it and put your rubber adhesive on new digitizer screen and put digitizer on phone and slide the ribbon cable through the slot provided and a attach ribbon cable to circut board

reverse all the steps to put your phone back together and then you have a new phone
