Samsonite Luggage Wheel Replacement

Written By: Xinyi Min

Comments: 15

Difficulty

Easy

Steps

Time Required

30 minutes

Introduction

Use this guide to replace a damaged Samsonite luggage wheel.

A damaged wheel may stick, causing the suitcase to veer off course, or preventing the suitcase from moving. A replacement wheel will help you fix the problem.

Step 1 will help you ensure that a replacement is needed and prepare for the replacement.

Step 2 will help you select the correct replacement part.

Tools

Phillips #2 Screwdriver

Step 1

Clean the wheel to make sure that the wheel is not stuck.
Sometimes wheels don't work because they're caked with dirt or debris. This step can help you make sure that it needs to be replaced.

Step 2

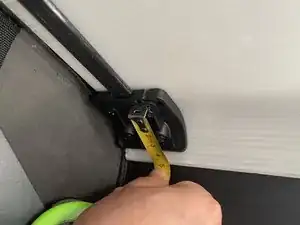

Select the right replacement by measuring the diameter and width of the wheel.

Step 3

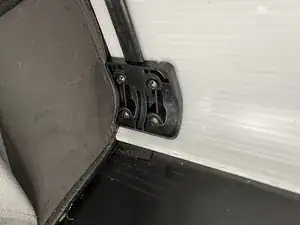

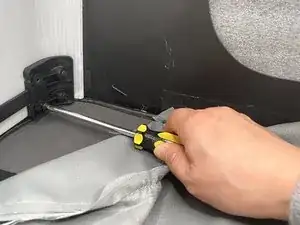

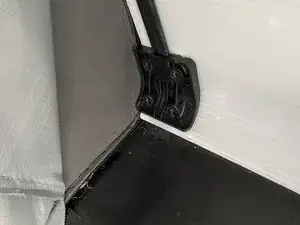

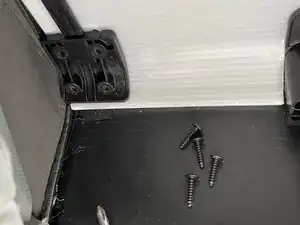

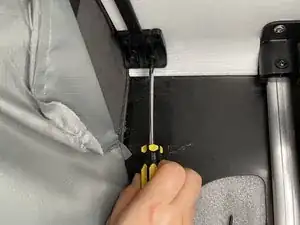

Remove the screws securing the wheel clip inside the case.

Step 4

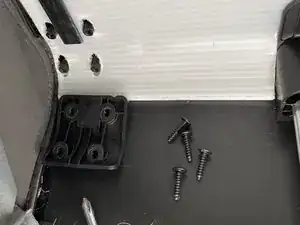

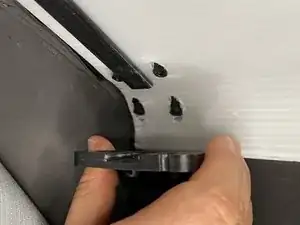

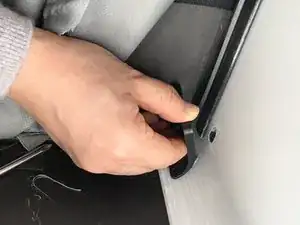

Pull out the clip securing the wheel to the case.

Step 5

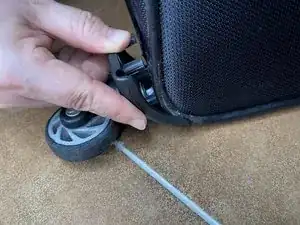

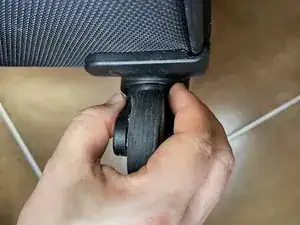

Remove the old wheel from the outside of the case.

Step 6

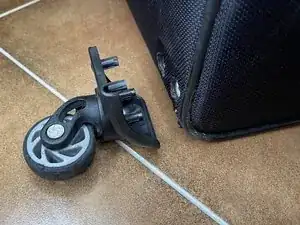

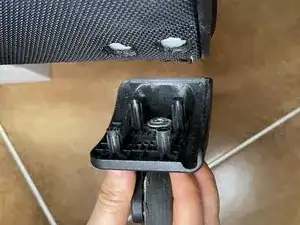

Insert the new wheel onto the luggage, making sure that the tubes on the wheel base align with the holes in the luggage.

You can see that it is NOT a NEW wheel! It's a shame, because the instructions would be useful if the case is otherwise still in good shape. Last year I unfortunately had to replace my good old Samsonite with a product from a competitor, because Samsonite no longer manufactures the product and has no suitable successor in its range ?! Since only the wheels were worn out, I looked for a replacement, but couldn't find a replacement (!) From the manufacturer, nor any usable alternatives, which is probably just not wanted in order to force a new purchase!

Here it would have been really useful how to install alternative rollerblade / inline wheels as a replacement!!!

Carsten Queschning -

I wonder, if the axle could be drilled out and then the wheel be replaced.

VauWeh -

Step 7

Put the clip back to its original position inside the case.

Step 8

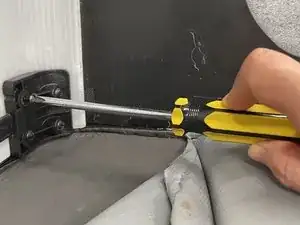

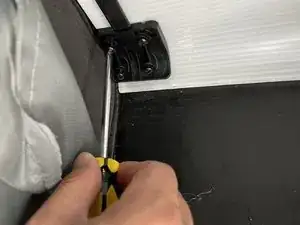

Tighten the screws that hold the clip back in place.
