Introduction

The volume control button is a simple plastic button that increases or decreases the volume. This button is attached to the frame of the phone and activates the volume controlling circuitry on the motherboard when pressed.

  1. HqEGlSGXvi4VMaFC
    HqEGlSGXvi4VMaFC
    iZKbOaIxdWC1RvL5
    Gjg6RQ62YASGAhIR

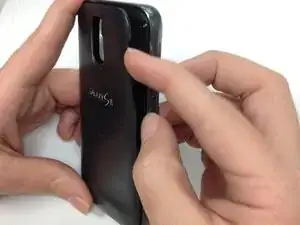

    • To remove the rear cover, locate the tab indicated by the red outline.

    • Using your fingernail, gently pry the rear cover.

  2. SD3ShL5MhYQnlRTx
    SD3ShL5MhYQnlRTx
    V51fMDphfGnwEGVV
    khwKl5rkUfWVKrTF

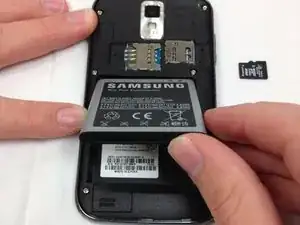

    • Turn off the phone before removing battery.

    • The battery can be removed from the phone by applying an upwards pressure to the bottom right edge of the battery, as indicated by the red rectangle.

    • After the battery starts to lift upwards, use your hand to hold and remove it.

  3. DRBNFM6cPC1LBOm4
    DRBNFM6cPC1LBOm4
    TjICeiZS4fT5rIHN
    FHDBYpMdkZMfwueB
    • The SIM card is the small white rectangle located in the red rectangle.

    • To remove the SIM card, press down on the card and slide it to the left, until it no longer is in contact with the metal.

  4. cnIFlAma5lqxRnVn
    cnIFlAma5lqxRnVn
    c6mABQiNeDQWJFMy
    FpQEItbZeQJiQYsc

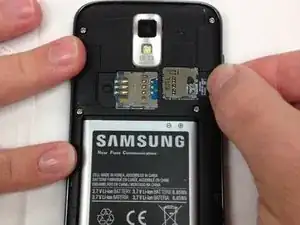

    • The media card is found inside the area indicated with the red rectangle. The card itself is small and black making it hard to easily see.

    • After locating the card, gently use your fingers to slide the card to the right, until the card is no longer in contact with the metal.

  5. iFcCH5rS3PDq3FdJ
    iFcCH5rS3PDq3FdJ
    1bOERqhZXAOGnEoh
    6Pdsx5eIdBBuKDtu

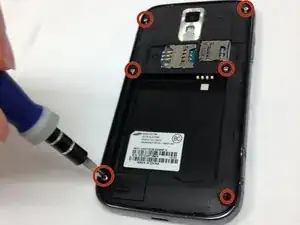

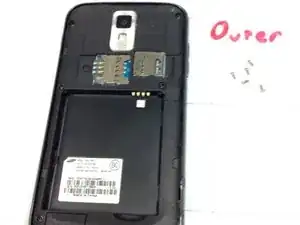

    • The inner plate is held on by six screws that are 1/16 of an inch (1.6 mm).

    • Remove the screws with a Philips head precision screwdriver.

    • Place all screws someplace that they will not easily be lost, such as a magnetic mat or a plastic bag.

  6. tGGdZytfQDlaXRr5
    tGGdZytfQDlaXRr5
    lWNvLETyIpRFRCti
    rFXhnOLfY1HsWWWc

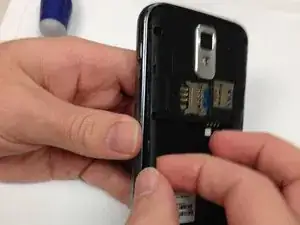

    • When removing the inner plate, place device on grounded surface or use anti static wrist band.

    • After the screws have been removed, the only thing holding the inner plate in is several plastic tabs built into the frame of the phone.

    • Firmly pinch the edge, as shown in the picture, and pull the plate away from the frame.

    • If you cannot get a grip on the inner plate, consider using the spudger to pry and lift the plate out.

  7. rLNyPjyLPBKfwJsh
    rLNyPjyLPBKfwJsh
    WGDlx5FBQwlNhbxZ
    rmSVeElFdlPpnD5r
    • The motherboard holds many delicate components, improper handling can result in the destruction of these components.

    • To remove the motherboard, first undo the three tabs, indicated by the red outlines, using either a small flat-head screwdriver or your thumbnail.

    • In addition to the three at the top of the motherboard, there is a fourth tab at the bottom of the phone that will need to be opened as well.

  8. tEqMaFXUaqIaMDSG
    tEqMaFXUaqIaMDSG
    SvRHVwCj2E6MQC3b

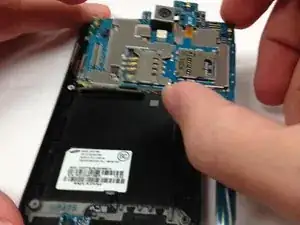

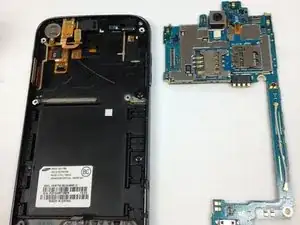

    • After all the tabs are unplugged, carefully apply pressure to the edges of the motherboard and lift upwards.

    • If the motherboard does not lift up, you may need to wiggle it left and right to free the corners from the areas where the case screws were placed.

  9. EmePDOiv1nV6VFXW
    EmePDOiv1nV6VFXW
    FbElXeZ2YWAKlFYs
    • Lift the tab indicated by the red rectangle using a pair of tweezers.

  10. LUVCM1M2go5kGOqv
    LUVCM1M2go5kGOqv
    nU4XnKIiCsvnVIei
    • After the tab has been lifted press the volume control button inwards until it is free of the frame.

    • A pair of tweezers could be used to help aid in removing the volume control button from the frame.

Conclusion

To reassemble your device, follow these instructions in reverse order.
