Introduction

This guide will show you how to remove the LCD on the back of the Samsung NX3000. You can also follow this guide to remove the button panel located next to the LCD.

We highly suggest you use a magnetic project mat or an organization tray. This camera has many different types of screws and keeping them organized is key to proper reassembly.

  1. GIkMMb6eElYskyfR
    GIkMMb6eElYskyfR
    v1SdkxFgRiWmSkiX
    pbuPdnboQJqUgYiS

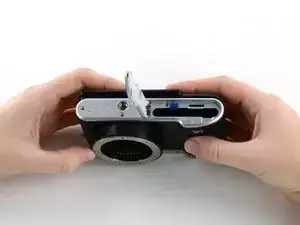

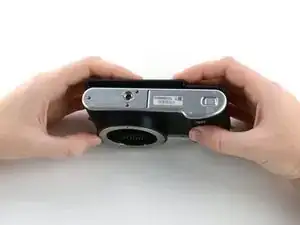

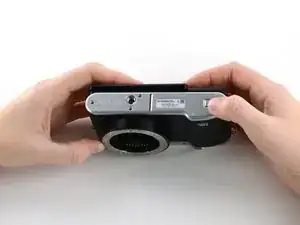

    • If you haven't done so already, remove the lens from the camera.

    • Turn the camera upside down.

    • Slide the button to the left to open the battery compartment.

    • Push the blue button up to release the battery.

    • The battery is not shown in these photos.

  2. XEkPSEQtSQQNm65o
    XEkPSEQtSQQNm65o
    TVnrHHlgWjbFqjMS

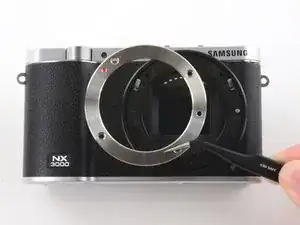

    • Remove the four 7.3 mm Phillips screws from the front of the lens assembly.

    • Remove the silver ring with tweezers.

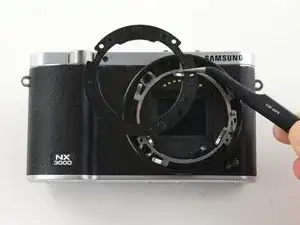

  3. PtZXXHmxWyTcMwEX
    PtZXXHmxWyTcMwEX
    JFSjBYhPsH3jmfhH

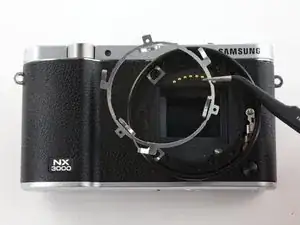

    • Use tweezers to remove the black plastic ring and small metal ring inside the lens assembly.

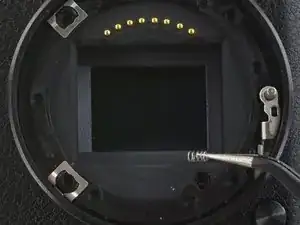

  4. PdAp3WadHdMCZLYd
    PdAp3WadHdMCZLYd
    rExqpeCCfFMv3HJk
    DeAomvuiJILiJyHV
    • Use tweezers to lift the pyramid screw and spring from the lens assembly.

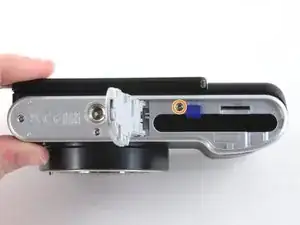

  5. NWZ2sRgyZOEsLbMt
    NWZ2sRgyZOEsLbMt
    bNCK2cwPfbcJ1vCL

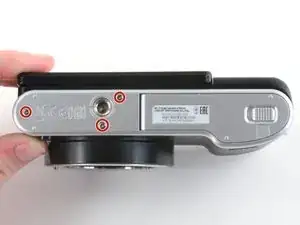

    • Remove the three 4.3 mm Phillips screws from the bottom of the camera.

    • Remove the 4.3 mm Phillips screw hiding inside the battery compartment.

  6. EdbdBLphTWgRlilI
    EdbdBLphTWgRlilI
    h3NJDVHFGdtlDJid

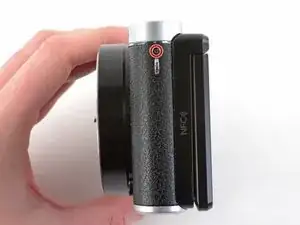

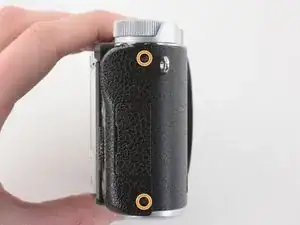

    • Remove the 4.2 mm Phillips screw from the left handgrip.

    • Remove the two 4.2 mm Phillips screws from the right handgrip.

  7. K5xtxBsKxZRsVCPm
    K5xtxBsKxZRsVCPm
    L5YqVTsKoeGiKKZf

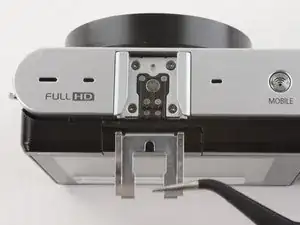

    • Use tweezers to remove the metal shield from the external flash mount.

    You have to lift the front and then slide back

    Anthony Hunter -

  8. vJdWVqA6BEgDQoxw

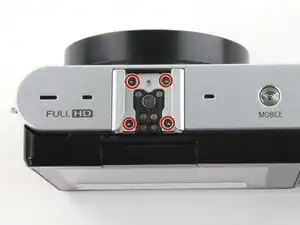

    • Remove the four 5 mm Phillips screws from the external flash mount .

  9. KWEFnP3DOqlNscba
    KWEFnP3DOqlNscba
    fp2siyRnfCmrObyq

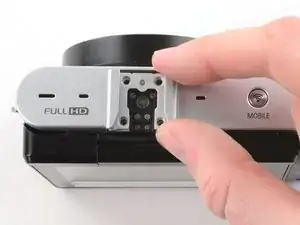

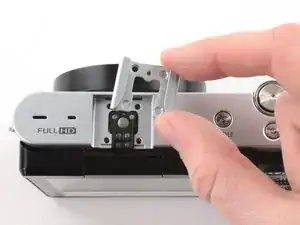

    • Remove the external flash mount.

  10. AZ6RCnN51Oa3U1pa
    AZ6RCnN51Oa3U1pa
    Ebb4VEWQGycIK1lX

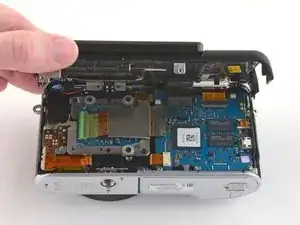

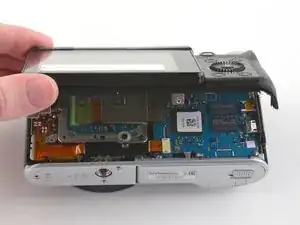

    • Slowly pull the bottom of the back case away from the camera.

    • Do not attempt to remove the back case as it is attached to the motherboard by a ribbon cable.

  11. fXDvkWa5ElFfRIyd
    fXDvkWa5ElFfRIyd
    lqumKR1QGUna5XHy
    hMMjSasaQtQTaNjA

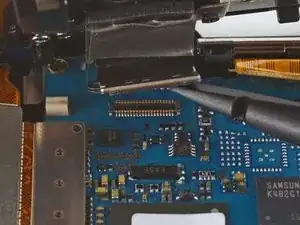

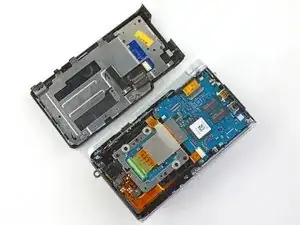

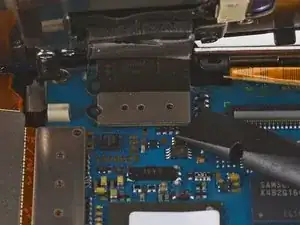

    • Use the flat end of a spudger to pry the flat topped connector straight up from the motherboard.

    • Remove the back case.

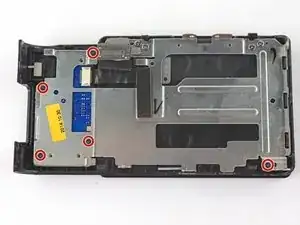

  12. ZirSHMLjQ5YekABW
    ZirSHMLjQ5YekABW
    XPyjvSJWrMxtMTBb
    oKDN3c5Jp1TFkfgv

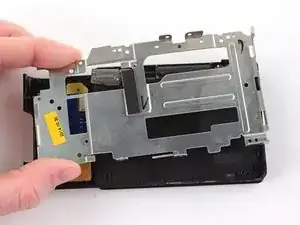

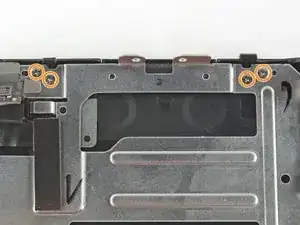

    • To remove the metal shield on the back case, remove the following screws:

    • Five black 4.2 mm Phillips screws .

    • Four silver 5.3 mm Phillips screws.

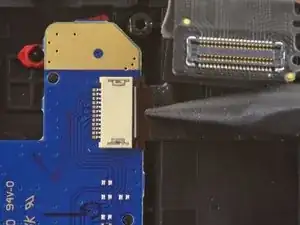

  13. XymTrLWuKlvkAwno
    XymTrLWuKlvkAwno
    hLNA2VljxIHc4aDh
    n4f1aBDL2OTYG1YV

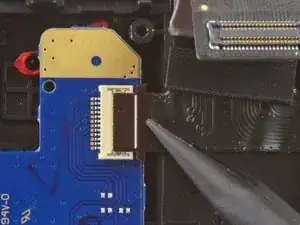

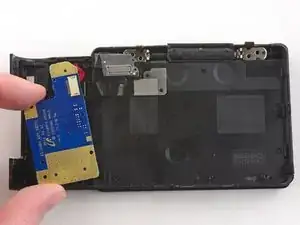

    • Insert the pointed end of a spudger into the whole on the ribbon cable holding the button panel to the back case.

    • Remove the button panel.

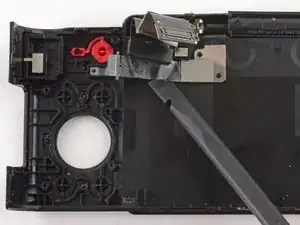

  14. btkMOUM21ISP2QFu
    btkMOUM21ISP2QFu
    lWBrVQSA5sRky5KA

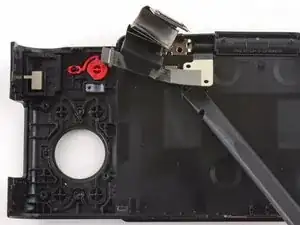

    • Use a spudger to peel back the LCD ribbon from the back case.

    • The ribbon is held in place by adhesive.

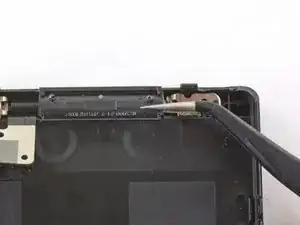

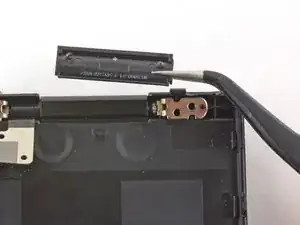

  15. dMBSyEigPXZ3ePwY
    dMBSyEigPXZ3ePwY
    RAMeYGveMdX2UDSy
    • Use tweezers to remove the plastic cover on the LCD hinge.

  16. Eq2MKZYxgIsdXijX
    Eq2MKZYxgIsdXijX
    bLK6YyM4V6FExMuB

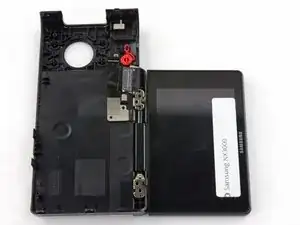

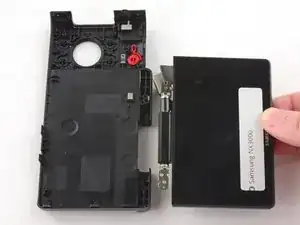

    • Tilt the LCD so it lays flat against the back case.

    • Wiggle the LCD joints and pull the LCD away from the back case.

Conclusion

To reassemble your device, follow these instructions in reverse order.
