This guide is helpful if you need to access any of the internal parts of this (Skil) hammer drill. We demonstrate how to take out the cord, the trigger, and motor assembly.

  1. Dv2MgDHhojJSAauI
    • The Skil 1743-AA Cordles SDS+ Hammer Drill is an affordable tool for serious hole drilling. Note that this one had its labels removed and the cord cut off for educational purposes.

  2. BwPt663PVpKkiJUo
    BwPt663PVpKkiJUo
    ROKUZyPoHFEkZ6x3
    2K3FkFuxOE1lgPAV
    • Make sure the drill is not plugged in. In our case, this was easy.

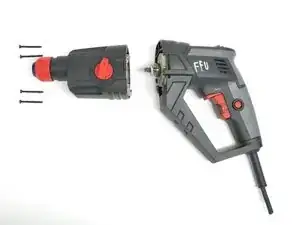

    • With a Phillips size 2 screwdriver, unscrew the four 40mm screws from the front body.

    • The front comes right off. Unfortunately this part is very rigidly put together, in fact so rigidly we were not able to disassemble it any further.

  3. OLqYbkuOUtct2JSL

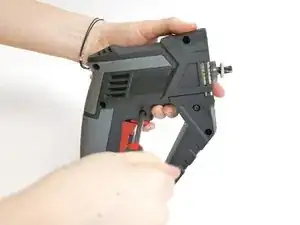

    • Flip over the rear body, and unscrew the 9 20mm screws.

  4. pIOPZoim61nPRIce
    pIOPZoim61nPRIce
    TqfnD2kSoyPN6mjs
    • With a pry tool, separate the two halves. You might need to go all around before they come loose.

    • Take a moment to admire all that is inside.

  5. HJg5N5iO6IQnmGRW
    HJg5N5iO6IQnmGRW
    XMpjZ4PawIbGsWt5
    j42YODarYos6hPak

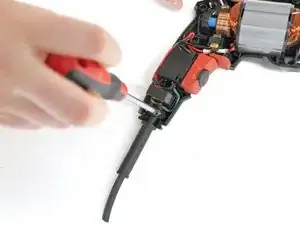

    • Unscrew the two 15mm screws that secure the cord.

    • The cord and its cradle look like one part, but actually they aren't.

  6. qTaUSYRcbVVUGQFn
    qTaUSYRcbVVUGQFn
    JJUShwcIwnlfYEBD
    • Before we go any further, release the rotor from the motor assembly. Beautiful thing to behold, no?

    • You might need to lift the bearing from its position behind the motor in order to take the rotor out.

  7. OPWTeYpurGh1Jy1y
    OPWTeYpurGh1Jy1y
    PaiZM5VKCbIvWO5o

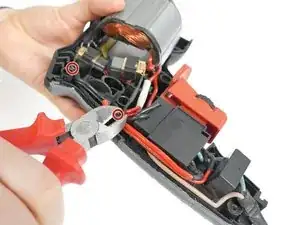

    • With pliers, cut the cable ties that secure the cable tree.

  8. h6F2eadEBHcAKp4u
    h6F2eadEBHcAKp4u
    yUxWdPIMKUTYvHYK

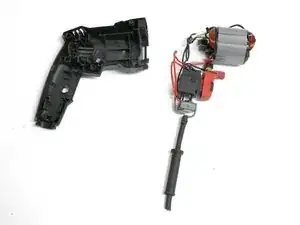

    • The complete innards should come out easily.

  9. SZtIBLHxnjWXAL1T
    SZtIBLHxnjWXAL1T
    yJPs2KLDqrBbXVla
    5pOkhVitv4NhEQBo

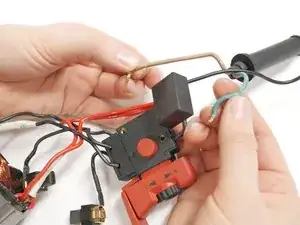

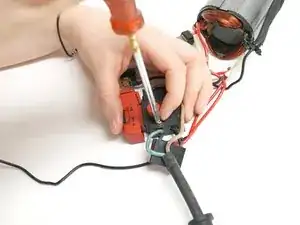

    • We are now going to take out the power cable. Its leads are attached to the trigger box.

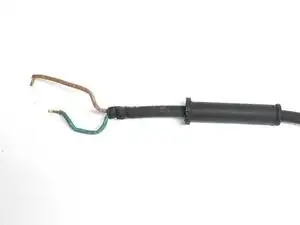

    • With a size 3 slotted screwdriver, unscrew the two 10mm brass screws to release the power cord.

  10. WSvCpG6ArvPyb1me
    WSvCpG6ArvPyb1me
    bDvhAl3qjjk2UO5X
    pXU2dUOyyXjMDCsF
    • Pull apart the trigger and polarity switch boxes.

    • With your size 3 slotted screwdriver, or the pry, pry off the lid of the polarity switch. Using this switch the current to the motor is reversed to it turns the other way.

    • Interesting spring mechanism!

  11. EPqcDPFDUMW5LHFb
    EPqcDPFDUMW5LHFb
    RJjEG5nTxkjG6nOJ
    IhFj1qnUTDali4XQ

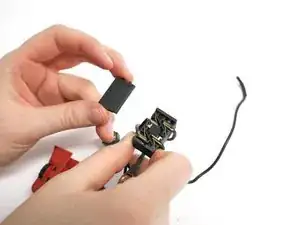

    • Flip over the polarity swith box. The brushes that transfer power to the motor are attached inside here.

    • The wires are not soldered which allows you to replace the brushes. Don't lose the springs that hold 'em in place though!

  12. LS1FEgCLYVOS2xFj
    • You have completed the disassembly!

    How do you test which part needs replacement when the drill was working but then died?

    maximoosley -

Conclusion

To reassemble your device, follow these instructions in reverse order.
