Sony Clie PEG-NR70 Audio Module Replacement

Written By: Daniel Soski
  • Comments: 0
Sony Clie PEG-NR70 Audio Module Replacement

Difficulty

Easy

Steps

7

Time Required

10 - 20 minutes

Introduction

If the audio in your device is not working, you may need to replace the audio module. This easy step-by-step guide will walk you through the necessary steps to do so.

  1. GPUDvUByxNvD3LIt

    • Unscrew the 1.9mm screw located at the top of the device with a Phillips #00 screwdriver.

    • It may be helpful to set up a piece of paper to keep track of where removed screws came from.

  2. PJ5PvWxEIibJcG2C

    • Unscrew the 2.5mm screw located on the left side of the device with a Phillips #00 screwdriver.

  3. 2KnaoVRq5gtqPSfL
    2KnaoVRq5gtqPSfL
    WaFRgGR1GNCf2LfQ

    • Unscrew the five 2.5mm screws on the back panel with a Phillips #00 screwdriver.

    • Remove the back panel by lifting it away with your hands.

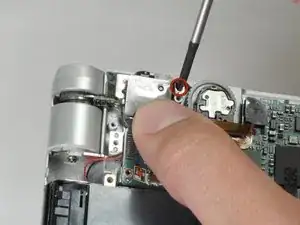

  4. 6t4ay6cVygUGxMqV

    • Unscrew the 2.5mm screw on the top portion of the audio module with a Phillips #00 screwdriver.

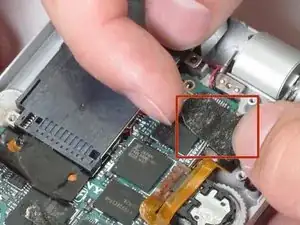

  5. QxNoScGg3lcfVXVH

    • Remove the tape that is holding the module down.

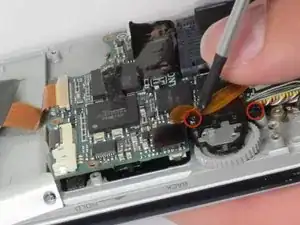

  6. g1ZZW6DynPDniQm2

    • Lift up the orange ribbon cable and unscrew the two 2.5mm screws located at the corners of the audio module with a Phillips #00 screwdriver.

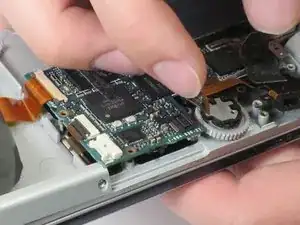

  7. FUqARUH5ecDmnPuc

    • Unplug the audio module from the motherboard by disconnecting the wires by lifting the orange wire up.

Conclusion

To reassemble your device, follow these instructions in reverse order.
