Sony Clie PEG-NR70 Motherboard Replacement

Written By: Daniel Soski
  • Comments: 0
Sony Clie PEG-NR70 Motherboard Replacement

Difficulty

Moderate

Steps

21

Time Required

15 - 20 minutes

Introduction

Installing a new motherboard involves removing the other components. Once this is done, removing the motherboard involves unscrewing the board from the housing and disconnecting various cables and wires.

  1. GPUDvUByxNvD3LIt

    • Unscrew the 1.9mm screw located at the top of the device with a Phillips #00 screwdriver.

    • It may be helpful to set up a piece of paper to keep track of where removed screws came from.

  2. PJ5PvWxEIibJcG2C

    • Unscrew the 2.5mm screw located on the left side of the device with a Phillips #00 screwdriver.

  3. 2KnaoVRq5gtqPSfL
    2KnaoVRq5gtqPSfL
    WaFRgGR1GNCf2LfQ

    • Unscrew the five 2.5mm screws on the back panel with a Phillips #00 screwdriver.

    • Remove the back panel by lifting it away with your hands.

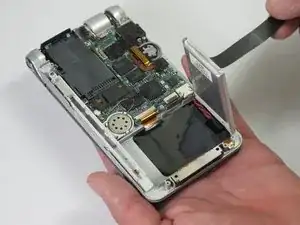

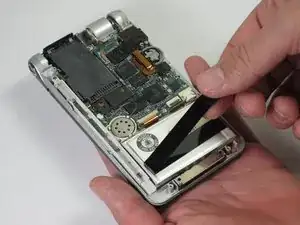

  4. QQVZH1makSlSvdyy
    QQVZH1makSlSvdyy
    NWT4Q2L5cJjN2EJZ

    • Pull up on the black tab on the battery pack to reveal the power cord.

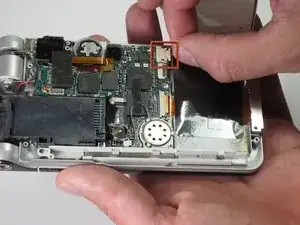

  5. ChrHSMmU2pohrbrH

    • Disconnect the battery pack from the motherboard by unplugging the power cables. Gently pull the wire toward the bottom of the device.

    • Be careful to not tear the cables! They are very thin.

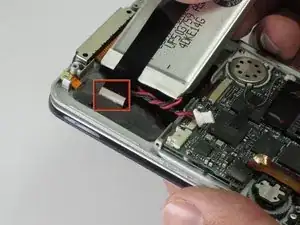

  6. C2lT2DFVuXyGyEVC

    • Gently peel back the adhesive to completely disconnect the battery pack from device.

  7. ndqG6SxIIVGYY2hk

    • Holding the memory module in place, unscrew the three 0.9mm screws with a Phillips #00 screwdriver.

  8. GfoCXyMZZhRJlrHR

    • Lightly grab the memory module and pull it upwards.

    • Make sure you grab the end closest to the edge of the device. You may have to wiggle the module a bit to get it to come free.

  9. 6t4ay6cVygUGxMqV

    • Unscrew the 2.5mm screw on the top portion of the audio module with a Phillips #00 screwdriver.

  10. QxNoScGg3lcfVXVH

    • Remove the tape that is holding the module down.

  11. g1ZZW6DynPDniQm2

    • Lift up the orange ribbon cable and unscrew the two 2.5mm screws located at the corners of the audio module with a Phillips #00 screwdriver.

  12. FUqARUH5ecDmnPuc

    • Unplug the audio module from the motherboard by disconnecting the wires by lifting the orange wire up.

  13. FNsKYgaBAUbXB1rU
    FNsKYgaBAUbXB1rU
    TsJKOD4DLIPxPMtw

    • Use tweezers to unplug the speaker wire from the motherboard by pulling the plug (not the wires) down towards the speaker.

    • Be careful not to tear the speaker wires! They are very thin.

    • Remove the tape holding speaker wire by peeling it away.

  14. SfKZWI1NbHgWIYdi

    • Holding down the speaker rail unscrew the two 2.5mm screws with a Phillips #00 screwdriver.

    • Remove the speaker rail vertically from the device.

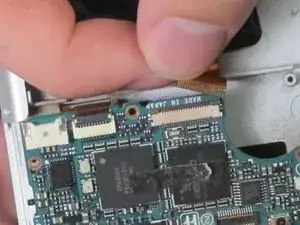

  15. Te5rOsPic6R6FxtR

    • Unplug the ribbon cable found near the bottom of the motherboard by pulling it towards the bottom of the device.

    • Be careful not to tear the plug! It is very thin.

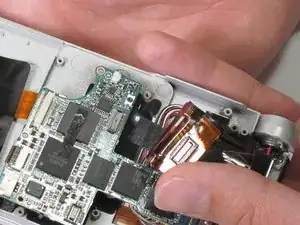

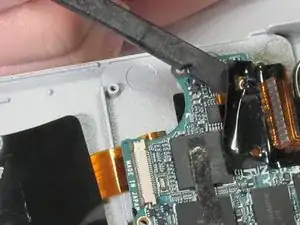

  16. s4MCxUVywsJDACWi
    s4MCxUVywsJDACWi
    e32lXCTZhvCYdEGV

    • Unplug the ribbon cable connected at the bottom of the memory module by prying it up with a spudger.

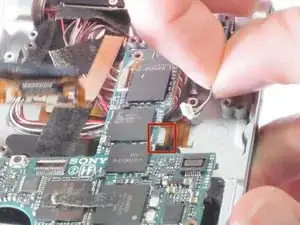

  17. oGvdSEen4XqQInsK

    • Unplug the wires found underneath the right side of the "stem" of the motherboard by pulling gently.

    • Be careful not to tear the wires! They are very thin.

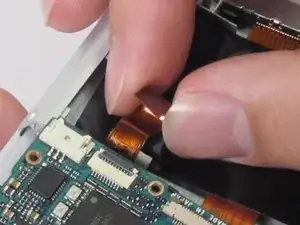

  18. UuIyoMES1tKbEK3I

    • Lift up the black locking tab holding the ribbon cable in place.

    • Gently pull on the ribbon cable to remove it from the ZIF connector.

    • Be careful not to tear the ribbon cable! It is very thin.

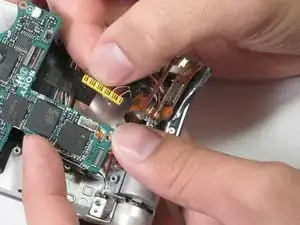

  19. GrWfUVZJYCRIGqyv

    • Unplug the yellow connector from the underside of the left side of the motherboard by pulling gently.

    • Be careful not to tear the wires! They are very thin.

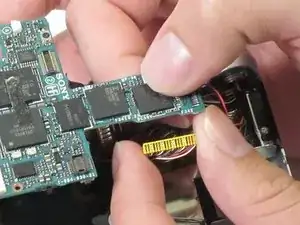

  20. Bc6fpgdxQYQaA1Es

    • Unplug the second yellow connector from the underside of the right side of the motherboard by pulling gently.

    • Be careful not to tear the wires! They are very thin.

  21. 4vUqkqXBmlDopdNO

    • Unplug the last set of wires from underneath the top of the motherboard.

    • Be careful not to tear the wires! They are very thin.

    • The motherboard should be loose now. You should be able to wiggle it free from the housing.

Conclusion

To reassemble your device, follow these instructions in reverse order.
