Sony Clie PEG-SL10 Battery Harness Replacement

Written By: Emily
  • Comments: 0
Sony Clie PEG-SL10 Battery Harness Replacement

Difficulty

Moderate

Steps

5

Time Required

10 - 20 minutes

Introduction

  1. lSvPvsAQwj3iT3UF

    • Remove the six screws holding the outside case of the Sony Clie.

  2. 5D2OWv2BiEZdYtRa

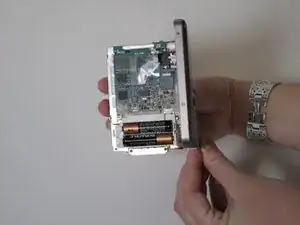

    • Remove the six screws holding the outer case.

  3. eCRMYMPejCp1XIfe

    • Remove the two screws holding the battery harness in place.

  4. sSoDLStypRsToKoJ

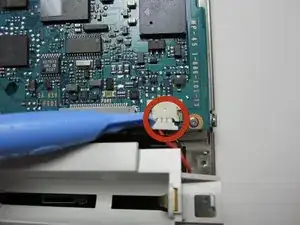

    • Gently pull the power cable from the socket.

  5. bpKdtLgYJIdCRq1N

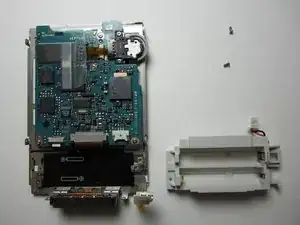

    • The battery harness is now removed. Install the new harness in reverse order.

Conclusion

To reassemble your device, follow these instructions in reverse order.
