Sony Clie PEG-UX50 Rear Case Replacement

Written By: Christopher M Garcia
  • Comments: 0
Sony Clie PEG-UX50 Rear Case Replacement

Difficulty

Moderate

Steps

5

Time Required

10 minutes

Introduction

Rear Cover Removal allows the inside of the Clie to be exposed for further replacement of internal components

  1. FrYOI5i5ZwCFKFFV

    • Tools needed:

    • Tweezers

    • Philips Screwdriver

  2. jcP2mN6PUlGX1rGM
    jcP2mN6PUlGX1rGM
    TbyaASMw5kiujpHe
    SimVrFHaf3Jq1qt4

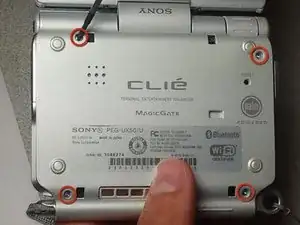

    • Using Phillips screwdriver, remove 4 screws from the rear cover.

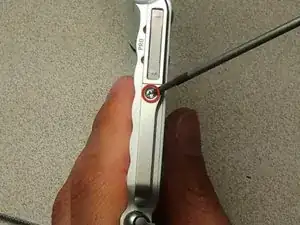

    • Remove 1 screw from the right side.

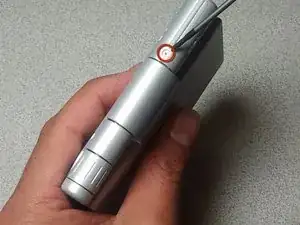

    • Remove 1 screw from the top

  3. AxpFsm6iBFQBccxl
    AxpFsm6iBFQBccxl
    xZNPdUFKhVtJDdml

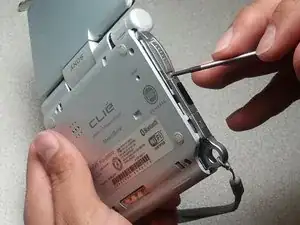

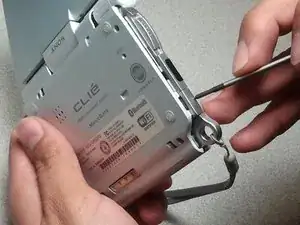

    • Gently pry rear cover to remove USB port cover and Hold Switch.

  4. uytavsIOKBJjugN2
    uytavsIOKBJjugN2
    E5NJrhtcUBGEAgDY

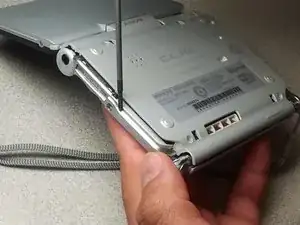

    • Remove side cover.

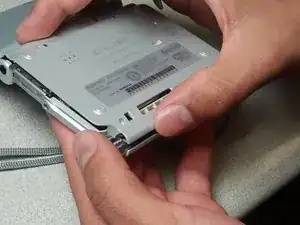

    • Gently pull the rear cover to separate from device.

  5. KhA5Yw1DvSukinZ4

    • Slowly pull rear cover from device being careful not to pull the speaker connection wire.

    • Remove speaker wire from device.

    • The rear cover is now separated from the device.

Conclusion

To reassemble your device, follow these instructions in reverse order.
