Introduction

In this guide, we will go into detail about how to disassemble the Sony TC-FX170 player and replace the worn belt within the player.

A worn belt that is not replaced with time will cause problems within the device such as issues rewinding, pausing, or fast-forwarding your video content.

Before beginning, make sure the device is shut down completely and disconnected from a power outlet.



  1. wRAUMFNvuACH156N
    wRAUMFNvuACH156N

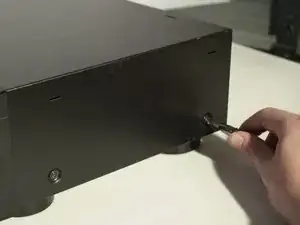

    MZw5yFhxxbQwXKJ6
    KluTlkE4ITwyhsJS

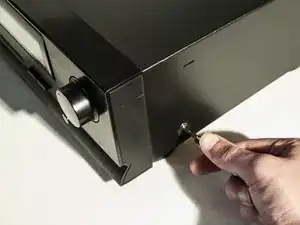

    • Remove the two sets of screws from both sides of the unit (four in total) using the Phillips #0 screwdriver.

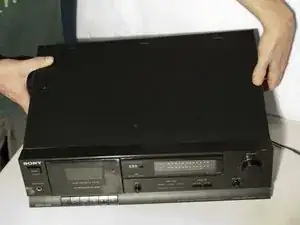

    • Grasp the outer sheath from the bottom at the rear of the unit. Pull the sides gently outwards and lift, pivoting the panel off the front bezel of the deck.

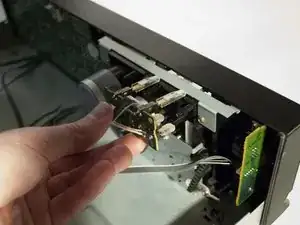

  2. ULWeFkS2u5oVJNTl
    ULWeFkS2u5oVJNTl

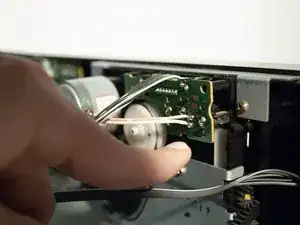

    2NrEOWdCV2igFppI
    WGMlyvBAHKS5YyqG

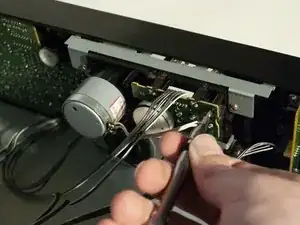

    • Remove the two Phillips #1 screws that hold the Motor IO board in place.

    • Use the edge of your fingernail to hold down the plastic clip, and slide the Motor IO board off the screw wells.

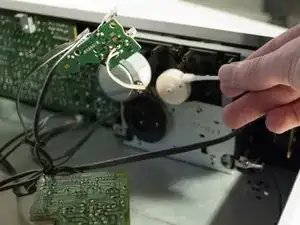

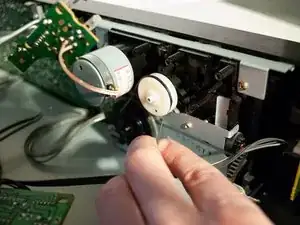

  3. IGE6nyCepnNXqqGb
    IGE6nyCepnNXqqGb
    4VwKeuyOyNrAqCSZ
    • Remove the spindle belt by gripping it and sliding it over the wheel.

    • Clean any residue on the wheels with isopropyl alcohol and a Q-tip.

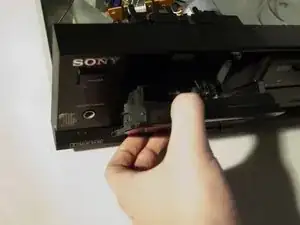

  4. HWYUevYWsHNhkISQ
    HWYUevYWsHNhkISQ

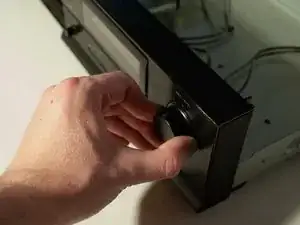

    kLoZ46ARILNShMrR
    pbYUfKcwEJbxDLR3

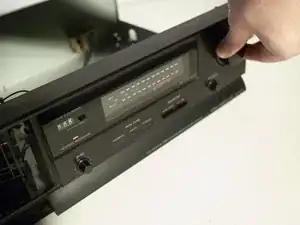

    • Remove the cassette door by gripping it from the top and bottom, and sliding upward.

    • Remove the bias, balance, and record level knobs by firmly grasping them from both sides and pulling outward.

    • Make a note of what setting the knobs are currently set to. They are keyed and can only be attached one way.

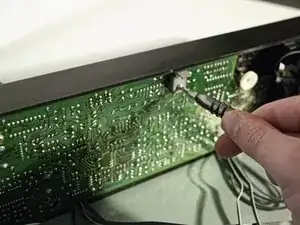

  5. eCdTYvIfIebDJDQY
    eCdTYvIfIebDJDQY
    TYQoiRVI2sIIQ611

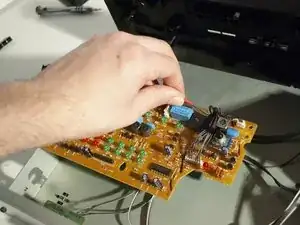

    nMRkesIZPci4OOWa

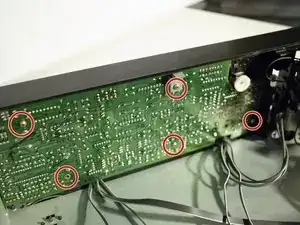

    • Undo the five Phillips #1 screws that hold the front IO board in place.

    • Unplug the two cables for the cassette mechanism from the board by gripping them from the sides and pulling outward.

  6. BXn4tYvIxLUDnISu
    BXn4tYvIxLUDnISu
    A1ecyAcMvQ3eARpG

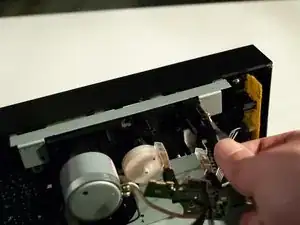

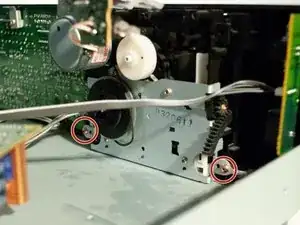

    • Remove the four Phillips #1 screws keeping the cassette mechanism in place and lift it outward.

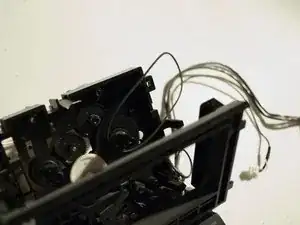

  7. 1cCyJKt3N2L2NZSL
    1cCyJKt3N2L2NZSL
    umR4C42faaK1B2U2
    2GWZgUT2d1bYy1Xh

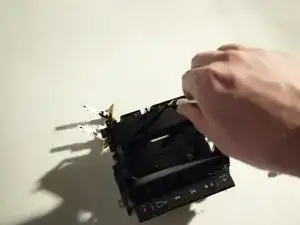

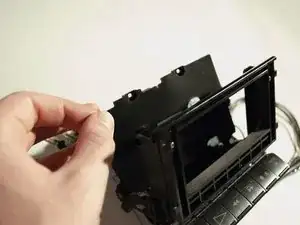

    • Remove the cassette mechanism cover by removing the two Phillips #1 screws at the top, and hinging it outward.

    • Discard the tape counter belt. Clean any residue it may have left.

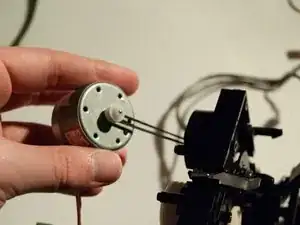

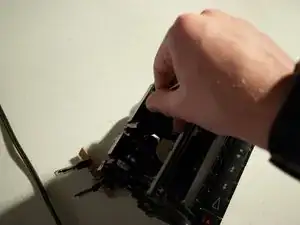

  8. CdnPdbf6Mt31APdY
    CdnPdbf6Mt31APdY
    rJLJBNV4frvZA2fx
    APMvwpFKcGSCsZaC
    • Remove the motor by unscrewing the two Phillips #1 screws within the mechanism. Pull it out from the rear of the mechanism.

    • Discard the main motor belt. Clean any residue it may have left.

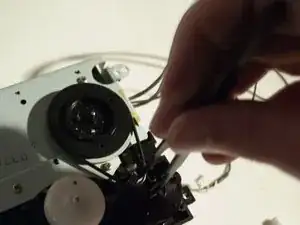

  9. hbo52hqP2POkOWhW
    hbo52hqP2POkOWhW
    s33LMKEDY3IJj4Ls
    NGTaXMPVNHwZHF2J

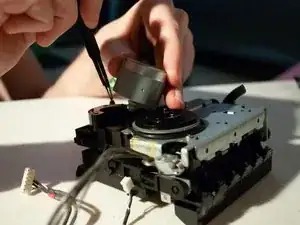

    • Do not touch the replacement belts with your bare hands. The oil from your skin will drastically reduce part lifespan.

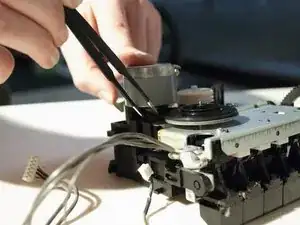

    • Use a pair of tweezers to wrap the replacement belt over the large end of the black wheel.

    • Orient the motor such that the solder joints hang over the rear of the cassette mechanism, hold the replacement belt back with tweezers and slide the motor back into place on top of it. Slowly slide the belt back toward the motor, aligning the belt to the motor's spindle.

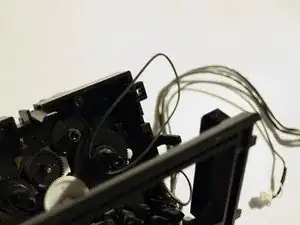

  10. eEAHcigFsE1JKFfP
    eEAHcigFsE1JKFfP
    WE6IKIsxqgjwERNm

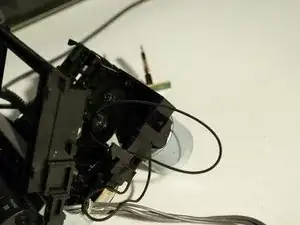

    • Using a pair of tweezers, loop the tape counter belt around the spindle and leave the other end off the side of the mechanism.

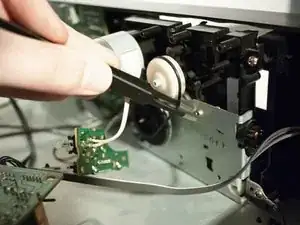

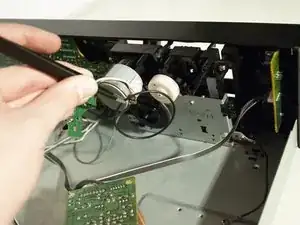

  11. rlocKTOReRkoZakn
    rlocKTOReRkoZakn
    RGcAhF2eceGO6IN5
    • Reassemble the cassette mechanism and front IO boards by following the previous steps in reverse.

    • Using a pair of tweezers, loop the replacement belt around the smaller end of the black wheel, and the middle groove of the white wheel.

Conclusion

To reassemble your device, follow the remaining steps in reverse order.
