Introduction

  1. JN5TB5BPqAX1Tfvd
    • Position the laptop screen-side down as shown.

    • In this position the battery housing will be located on the right hand side.

  2. dtcyb1p6eSrCuJ2H
    • Lift the panel up and then out to gain access to the battery.

  3. CG6TkfRDIGbvnIEc
    • Use the indentations to pull the old battery out.

  4. CpEQxSBCyQnlUCee
    • The battery is now removed and it is safe to move on to uninstalling other components.

  5. ZAsnIJBgQUTtTSgr
    ZAsnIJBgQUTtTSgr
    5xOBonQPNymlwVPO
    WAvCGhRlyihvKXGc

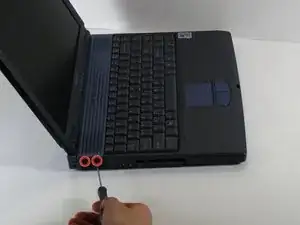

    • There are two screws on the left hand side of the laptop near the IR receiver. remove them using a #00 Philips head screwdriver.

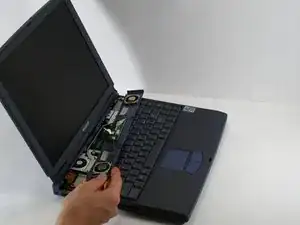

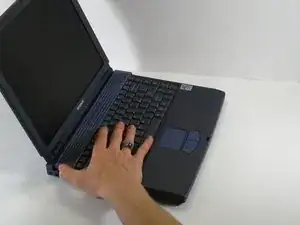

    • Slide the speaker panel towards the left, then carefully flip it over onto the keyboard.

    • Make sure not to pull the speaker panel away from the computer just yet - it is still connected!

  6. kBhhZNKN5QoaBQw3
    kBhhZNKN5QoaBQw3
    d2VhxmVRPrDJrAVw
    wdoBF2RWsVff1uFe

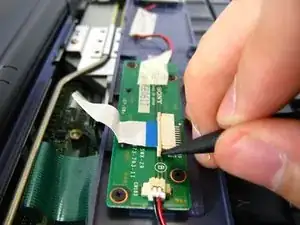

    • Push the beige tab in the direction of the ribbon. it should only move a small amount

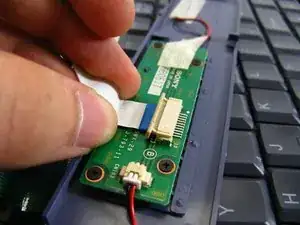

    • Remove the ribbon by gently pulling on it, there should be little or no resistance.

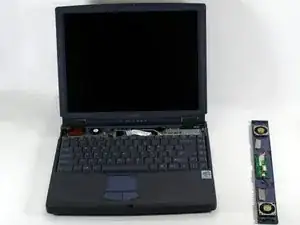

    • Now the speaker panel can be set aside.

  7. ySrK2jRTjJ4FbdO6
    ySrK2jRTjJ4FbdO6
    CgUfqivOElYeIStn
    • The two speakers are located on the ends of the panel.

    • There are two screws holding each speaker. Remove them using a #00 Philips head screw driver.

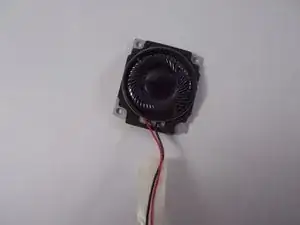

  8. XlevVVZqDXc3G4qp
    • Carefully flip the speaker over and replace or clean the needed parts.

Conclusion

To reassemble your device, follow these instructions in reverse order.
