Supersonic SC-777BT Camera Replacement

Written By: Maiya Webster
  • Comments: 0
Supersonic SC-777BT Camera Replacement

Difficulty

Easy

Steps

4

Time Required

5 minutes

Introduction

  1. CiOgX15Dot335o4f
    CiOgX15Dot335o4f
    ZYoXQwKNm651uSXU
    WRMyyKpaH4Zrtbpo

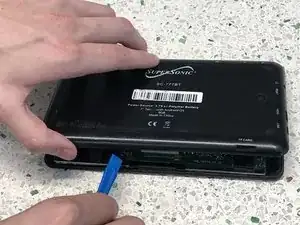

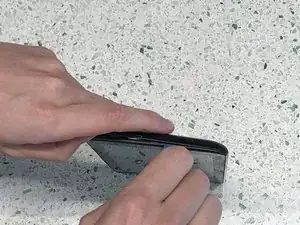

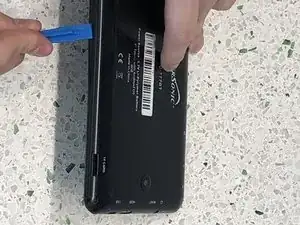

    • Remove the back cover using the plastic opening tool.

    • Open the cover like a book so you do not disconnect the yellow plastic holding the cover to the motherboard.

  2. 2ruRlvMlZBY2ghxP
    2ruRlvMlZBY2ghxP
    s4F2P6ACGflFvqQu
    2IIRGrZvYOBhqZBn

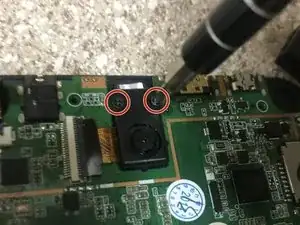

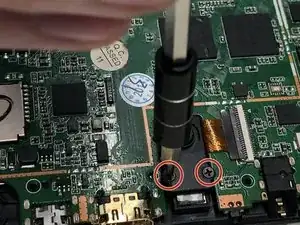

    • Remove the two screws using the screwdriver.

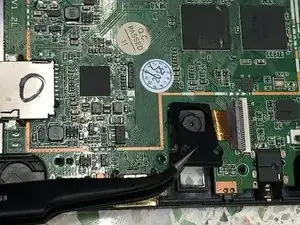

    • Use the tweezers to pull the camera out of place.

    • Be gentle while pulling it out so you do not pull any extra components out.

  3. IO13qhSmSAsXxHRk

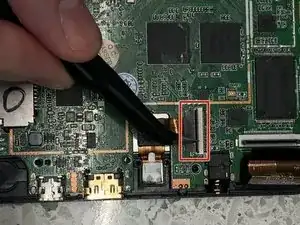

    • Disconnect the yellow ribbon cable from the connector.

  4. U26x5I2QyiPGOjdQ
    U26x5I2QyiPGOjdQ
    LodUVeHFyD1YE4Uq

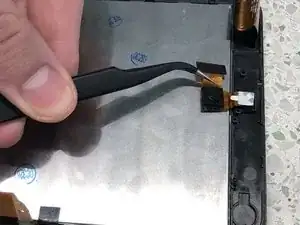

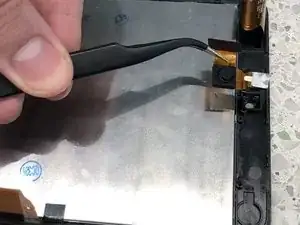

    • Remove camera.

    • It should just peel off like a sticker.

Conclusion

To reassemble your device, follow these instructions in reverse order.
