Television Coaxial Connector Replacement

Written By: brant

Comments: 7

Television Coaxial Connector Replacement

Difficulty

Moderate

Steps

Time Required

No estimate

Introduction

I've repaired this problem several times using this method and it works well.

Tools

Step 1

Kids pulled the cable connector off the back of the hello kitty TV

Step 2

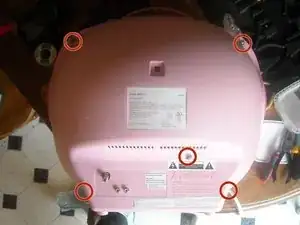

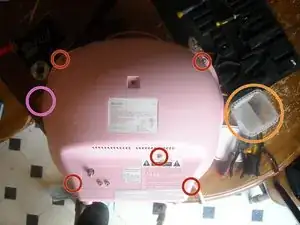

Remove screws from back, there's 5 in this case circled in red.
Notice the parts container highlighted in orange always a good idea for screws.
Cookie circled in pink for good measure.

Step 4

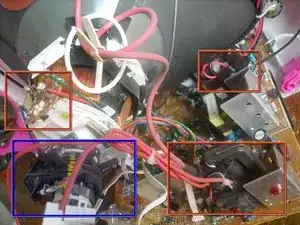

Beware the danger areas, Capacitors (especially big ones) can hold a charge for months, enough to throw you across the room and melt tools.
High voltage areas are outlined in red.
Delicate sensitive areas outlined in blue.

Step 5

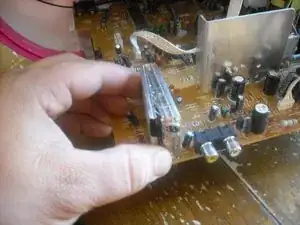

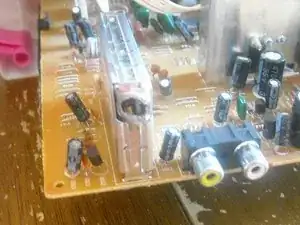

remove both covers on video input box, use a small prying tool if necessary, but you should be able to remove them by hand as seen here.

Step 6

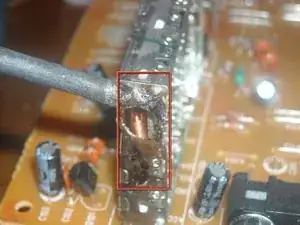

Use a soldering iron, and solder sucker to remove excess solder from the connector area. You can also use solder-absorbing braided wick.

Step 7

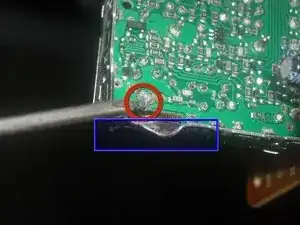

identify, where the centre pin connector was ripped from the board.
Use needle-nose pliers to straighten out the tin bracket as much as possible. It does not need to be perfect, but this helps with the alignment of the connector to the back of the tv cover.

Step 8

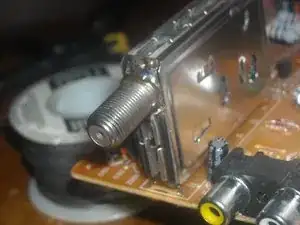

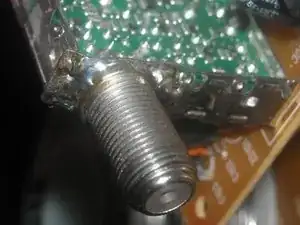

Align the connector, ensuring the center pin can reach the the spot on the board where it needs to be re-connected.
Solder the barrel of the connector to the metal bracket first, try not to let it get too hot. You may want to use a solder gun with dual heat of at least 50 watts for this part.
When that's done don't forget to solder the center pin to the board using as little solder as possible, to ensure there's no grounding to the metal cover.

Step 9

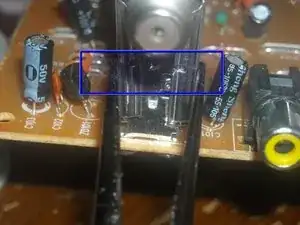

Re-seat both covers using needle nose pliers to ensure they're seated properly.

Step 11

Carefully replace the plastic cover. Replace cover screws.
Repairing is more environmentally responsible than disposing of a TV in a landfill. You are saving the environment from the Lead (Pb) glass from the rear of the CRT and Barium (Ba) glass in front screen.
There is very little danger of the CRT imploding or cracking if you use common sense, they are built for shipping and rough handling. The cadmium in the screen is unlikely to escape even during breakage, and is not much of an environmental hazard.

No Phosphorus (P). The phosphors contain Cadmium (Cd). The CRT glass is made with Barium (Ba) and Lead (Pb). Vacuum is not inherently a danger. Implosion is very unlikely. I have broken many a CRT and it takes quite an effort unless you smack it on the relatively fragile neck. No dramatic explosion. No shards of flying glass. Just a crack and a whistle and cursing.

BRUCE -

Conclusion

To reassemble your device, follow these instructions in reverse order.
