Introduction
Purpose of this guide it to show that in a pinch you can fix some really small problems without lots of money or equipment. But you must have patience.
-
-

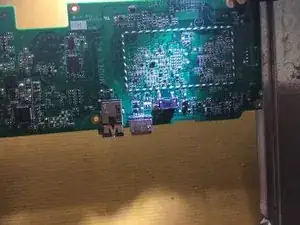

Problem was broken power connecter on grandsons Kindle. Removed bad connector and broken trace came up with part. New connector also shown.
-
I used a soldering iron with a 700 degree tip and de-solder braid to remove defective part. Hot air gun would have been a better option but I didn't have one.
-
Note: enlarge image to zoom in to see fine detail. Also how I checked work
-
-
-
After cleaning up the board and reseating new socket I simply resoldered in place. Now with the new socket installed, I needed to connect the unsoldered lead to the data port on board.
-
To remove the coating on the board where I needed to solder , I scrapped away the coating with an Xacto knife.
-
-
-

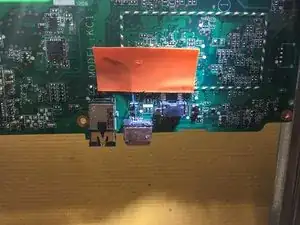

Stripping and tinning a piece of 60mm wire I layed it in the path where I needed to attach. I bent the wire to give better leverage.
-
-
-
Using a fine tip on my iron , I again used a 700 degree tip , dabbed the area with liquid flux and soldered the wire to the lead and exposed trace.
-

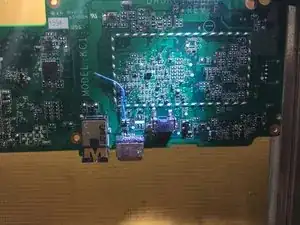

When done I removed tape, cleaned flux off and trimmed wire to length.
-
Please Note: you must have a steady grip on your iron to attach the wire. By using a long wire, you make it easier to keep it in place as you solder and it's so thin you can remove the excess wire with little stress to the repair.
-
-
-
Not very high tech, but it got me through this without a proper scope. In this image I was verifying I didn't have any solder bridges on socket.
-
When everything was cleaned back up I put the Kindle back together and it charges and plays like it should.
-

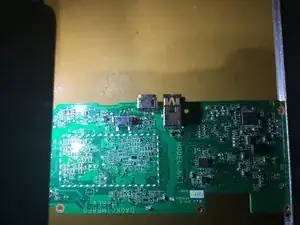

When I was done soldering I used my iPad Pro 9.7 to take hi resolution image that I could view and blowup to ensure the repair was intact and clean
-
using this technique, you can get yourself out of a pinch by repairing an item half the length of rice ,and half as thick.
