VTech Kidizoom Camera Connect Power Distribution Circuit Board Replacement

Written By: Justin Sanchez
  • Comments: 1
VTech Kidizoom Camera Connect Power Distribution Circuit Board Replacement

Difficulty

Difficult

Steps

11

Time Required

20 minutes

Introduction

Use this guide to remove and replace the power distribution circuit board.

  1. ttHgOHJPcuWKTAqG
    ttHgOHJPcuWKTAqG
    Qr5DhOVnqCdOOSuk

    • Remove batteries and SD card before beginning disassembly!

    • Locate the four plastic screw covers denoted by the markers and gently pry them up with the metal spudger.

  2. 2NoP4FUGLRFawiQu
    2NoP4FUGLRFawiQu
    iwYraI3XsRLfUTS5

    • Remove all four (11mm) screws with the Philips #0 screwdriver.

  3. kQUQy2GGQ5GbYjB4
    kQUQy2GGQ5GbYjB4
    63OOcLgW21ZNiDl1
    XLpqsQHGNswud26t

    • Remove the two battery cartridges located on the underside of the camera.

    • Once cartridges are removed, use the metal spudger to pry open the top, bottom, and both sides of the camera.

  4. 23tCpqYTQ4OAc2lc

    • Beware of the two black viewfinder lens falling out as you pry open the device!

    • The device should now be open and ready for further repair and/or replacement parts.

  5. BEHqSI6rGGbR2vEJ

    • Locate and remove the screws circled in the provided image with a Philips #0 screwdriver.

  6. UCeRjRmoJYREcPMI
    UCeRjRmoJYREcPMI
    kHKHKrbuDBLowFIr

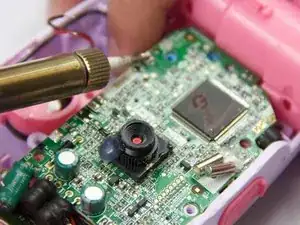

    • Unsolder the connection points on the motherboard.

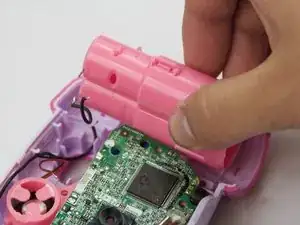

  7. JsrmTWHWbuLDAhNB
    JsrmTWHWbuLDAhNB
    avDErp6LUAf1cPvk
    gcLfHxYxLECLhpkJ

    • Unsolder the connections to the right battery terminal. Removing the terminal allows easier access to the motherboard.

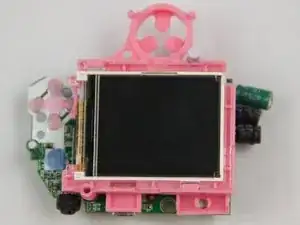

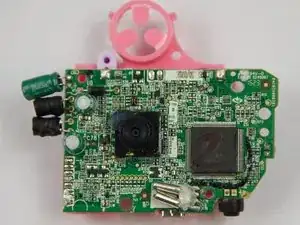

  8. huDyp1xCRIpgDWXB
    huDyp1xCRIpgDWXB
    y6YTNZiU5tR2eNuH
    gxhDsolhwJ2NQGmN

    • Carefully pull up on the motherboard and pink plastic underneath the motherboard. The pink plastic contains the display and is connected to the motherboard.

  9. p55QOWUq6LgucLCT

    • Unsolder the wires connected to the power distribution circuit board.

  10. 43h5JDQe6iaL5Zmx

    • Locate and remove the two screws that hold in the power distribution circuit board using a Philips #0 screwdriver.

  11. S4XOEHNmH12ZQjsc

    • Gently pull up on power distribution circuit board and remove it from the device.

Conclusion

To reassemble your device, follow these instructions in reverse order.
