Introduction
Use this guide to remove and replace the button and circuit board used for taking photos
-
-

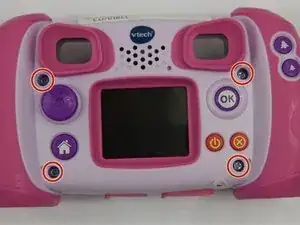

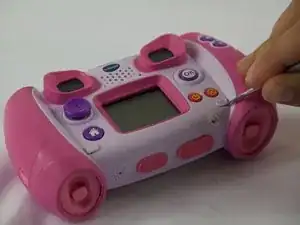

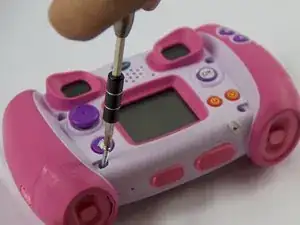

Locate the four plastic screw covers denoted by the markers and gently pry them up with the metal spudger.
-
-
-
Remove the two battery cartridges located on the underside of the camera.
-

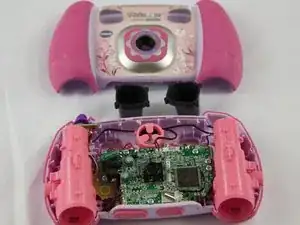

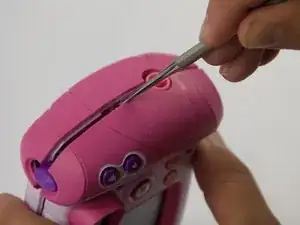

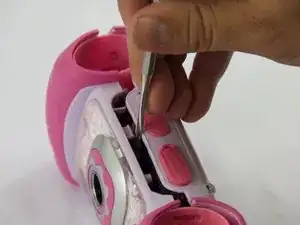

Once cartridges are removed, use the metal spudger to pry open the top, bottom, and both sides of the camera.
-
-
-

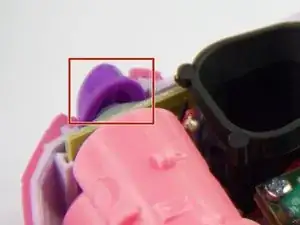

Remove the purple plastic that covers the button and circuit board. It should slide right out from the slot it sits in.
-
-
-

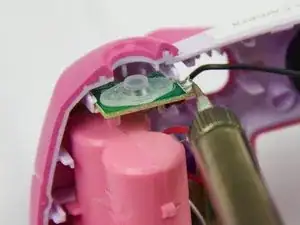

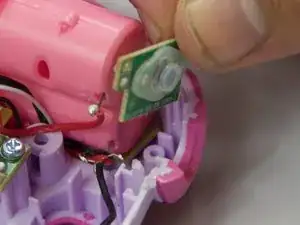

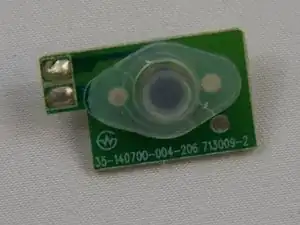

The button/circuit board should be loose now. Gently pull out the button/circuit board to remove it from the device.
-
Conclusion
To reassemble your device, follow these instructions in reverse order.
