Introduction
This guide explains how to disassemble the Vtech kidizoom camera.
Pour réassembler votre appareil, suivez les instructions dans l'ordre inverse.
One comment

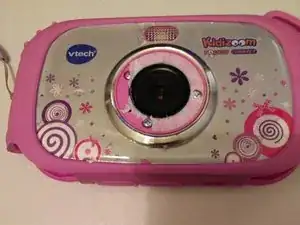

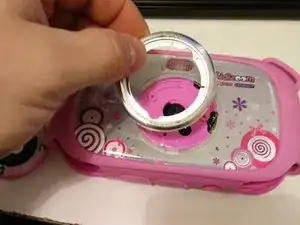

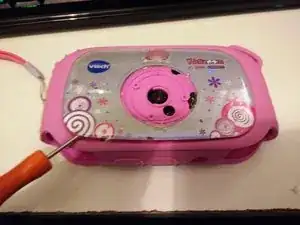

In the very first step be aware that the you just need to remove the paper ring. In the photo above this is pink and on mine it was orange.
I made the mistake of thinking I had to use some force with a screwdriver, to remove the ring on the front, which resulted in me scratching the chrome ring.

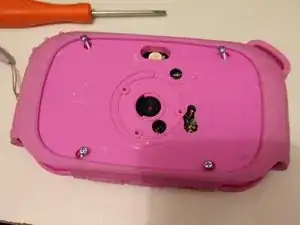

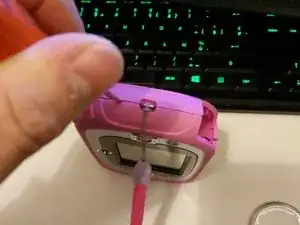

Once you have removed the paper ring, you can see the screws (or they may be under the left over sticky backing to the paper but are easy to find).
These photos were extremely helpful and I was able to repair the camera.
The problem with mine, was that it would not switch on. We replaced the batteries, but still no good.

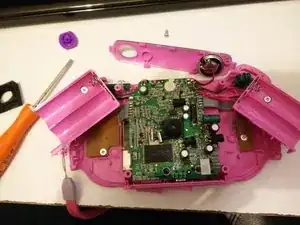

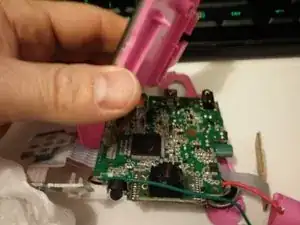

After using the above photos, I opened the camera and discovered that one of the two cables to one of the battery holders, had come loose.
In the process of resoldering the broken cable, the second battery cable also came off … mainly due to the use of VERY thin wire and minimum solder.
Anyway, the camera is now working again and my son is very happy.
Chris -
Thanks, this is also the key to success for the “kidizoom duo dx”: Remove the “Mega Pixel” paper shield: There are four more claws attached at the battery case, then remove the screws and you can pry it open.
Kajetan Hinner -
