Introduction

Zotac's bare-bones machines ship without RAM or hard drives. You install your own RAM.

  1. QRPJHNdCeInX4epx
    QRPJHNdCeInX4epx
    wqsXIyjrxeHQLTKx

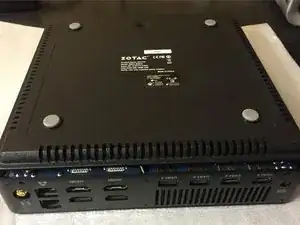

    • Zotac uses thumb screws to secure the case. No tools required!

    • After you remove the thumb screws, just slide the bottom cover away from you and lift it away.

  2. NZc2QmPSI5b4WAqD
    NZc2QmPSI5b4WAqD
    b1NAQeLCkpggmhwG
    qIYhjBAyC4ZQMFXi

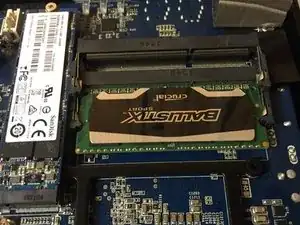

    • Your ZBOX has 2 SODIMM RAM slots and supports up to 16 gigabytes of RAM.

    • Insert the RAM chips and press them gently down until the metal arms snap into place to secure them.

Conclusion

To reassemble your device, follow these instructions in reverse order.
