Introduction
Zotac's bare-bones machines come without Internal Storage or RAM. Here's how to install the Internal Storage.
Tools
-
-

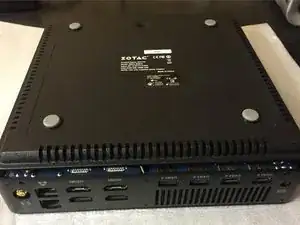

Zotac uses thumb screws to secure the case. No tools required!
-
After you remove the thumb screws, just slide the bottom cover away from you and lift it away.
-
-
-

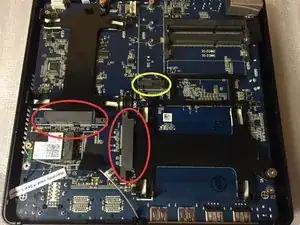

The EN970 has three hard drive connectors: 2 2.5" bays and 1 M.2 bay.
-

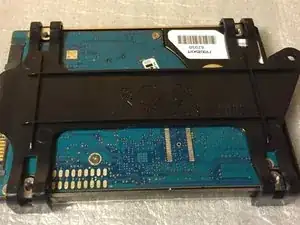

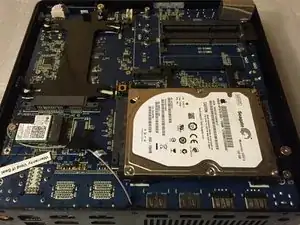

There are thumb screws for the 2.5" drives that secure plastic caddies that snap onto your drive
-
-
-

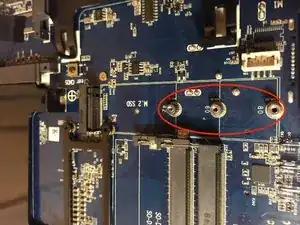

The M.2 drive requires a phillips screwdriver for installation. Your ZBOX should have two screws inserted in two of the three pegs.
-
Remove the screws, insert your drive and use one screw to secure it. Be sure not to over-tighten.
-
Conclusion
To reassemble your device, follow these instructions in reverse order.
