Introduction

This guide shows how to apply display assembly adhesive to an opened iPad. Use it to prepare your display assembly before resealing your device during a repair.

  1. eTmag5K5KWTxnGi6
    eTmag5K5KWTxnGi6
    kFoORxAgGy1kDmIR

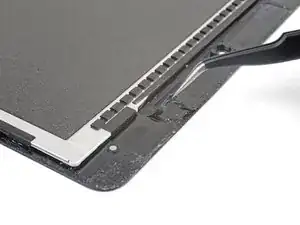

    • Before installing new adhesive, thoroughly clean the display assembly and the frame of all residue.

    • Use tweezers to pull up sections of tape residue.

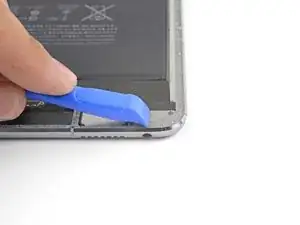

    • Use an opening tool or a spudger to scrape residue off. You can use high concentration (over 90%) isopropyl alcohol to soften the adhesive.

    • Remove the residue by wiping in one direction to prevent smearing.

    • Do not scrape with a metal tool, or you will scratch the display assembly's surface.

  2. GGXWFVxrENhaDM2m

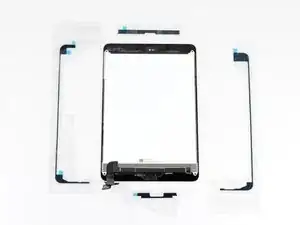

    • Lay out the replacement adhesive strips around the display assembly so that they correspond to the correct sides.

  3. TyjKaUxmhakj6CYE
    TyjKaUxmhakj6CYE
    MKhL1NQL3HNe1gQY

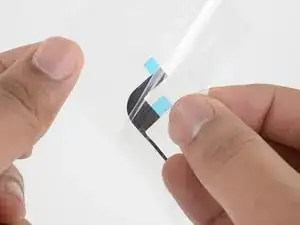

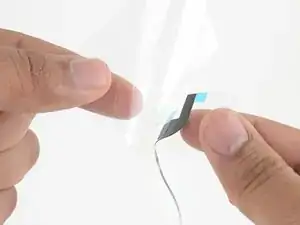

    • Each adhesive strip is encased in four layers of plastic—three on top and one on the bottom.

    • Peel and remove the topmost plastic cling layer from the left adhesive strip.

    • Peel and remove the bottom plastic liner from the strip.

    • The top of the adhesive strip should still be covered by a colored plastic layer as well as a clear plastic stiffening layer.

    • The bottom of the adhesive strip should now be exposed and sticky.

  4. qlJGSIAJpTuhxXgH
    qlJGSIAJpTuhxXgH
    ur5WuiwOhiLVtSfv

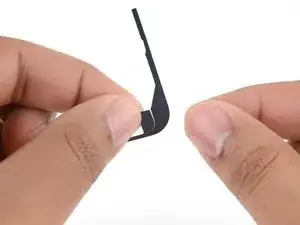

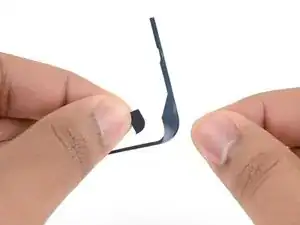

    • If there are extra bits of adhesive on the strips that are not required for your particular model of iPad, remove them now.

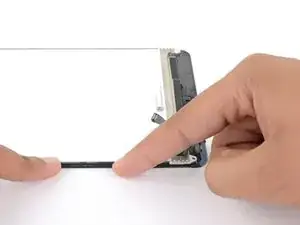

  5. 6uBH3kZIADHnNiVh
    6uBH3kZIADHnNiVh
    2XBOftCy12iyTHao
    Oqn2oZIuXbNqMAtU

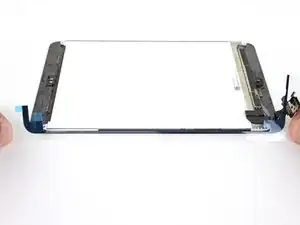

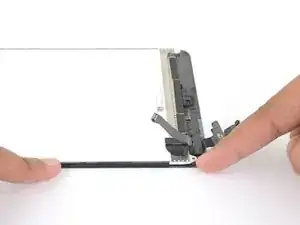

    • Align the left adhesive strip to the left edge of the display assembly.

    • Beginning from one corner, lay the adhesive strip onto the display assembly and press the strip into place.

    • If necessary, use a spudger to press down the narrow parts of the adhesive strip.

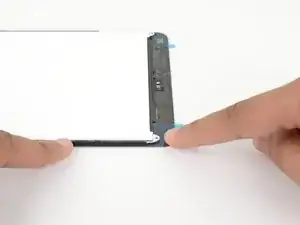

  6. xnSoLwwh1ityKp6M
    xnSoLwwh1ityKp6M
    3LEVWIWCqSAMGRy3
    erTvUFBw6uOHaaMj

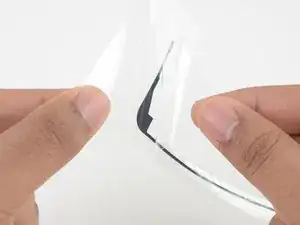

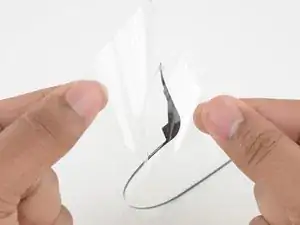

    • Repeat the process with the right adhesive strip.

    • Peel and remove the topmost cling layer from the strip.

    • Peel and remove the bottom liner layer from the strip.

    • Align the adhesive strip to the right edge of the display assembly.

    • Starting from one corner, lay the adhesive strip onto the display assembly and press in place.

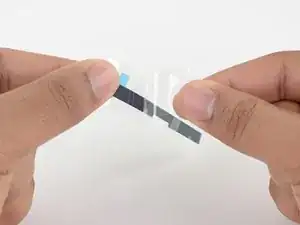

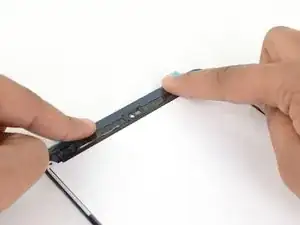

  7. b6ga1FAcfOLmOIhI
    b6ga1FAcfOLmOIhI
    HBtiTlM2IYBJmFkN
    FNIgPWjSYROxVD6v

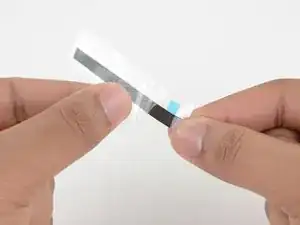

    • Repeat the process for the top adhesive strip.

    • Peel and remove the topmost cling layer from the strip.

    • Peel and remove the bottom liner from the strip.

    • Align the strip to the top of the display assembly such that the straight adhesive line bridges the gap between the left and right strips.

    • Press the strip in place.

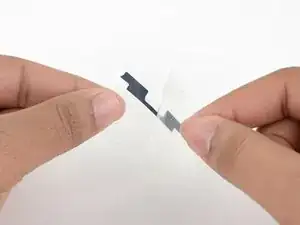

  8. ATcnkqdYJL5GKMIn
    ATcnkqdYJL5GKMIn
    RZhLPSN2rUZjFeCv
    J6YKQTRKBOqQpmkN

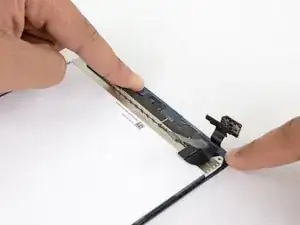

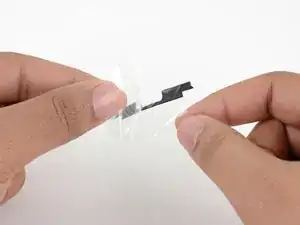

    • Repeat the process for the bottom adhesive strip.

    • Peel and remove the topmost cling layer from the strip.

    • Peel and remove the bottom liner from the strip.

    • Align the strip to the bottom of the display assembly such that the straight adhesive line bridges the gap between the left and right strips.

    • Press the strip in place.

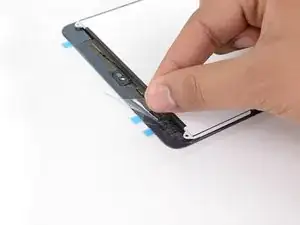

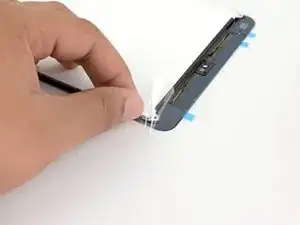

  9. 2TCJd6gjBk5K4J53
    2TCJd6gjBk5K4J53
    Qr1kb23BYJGeBQkj
    QRBPvj5NUIBPVCGW

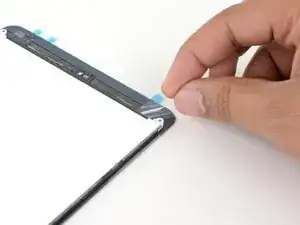

    • Peel and remove the clear plastic stiffening layer from all four adhesive strip sections.

  10. BUVYdcpAqpiBj6e2

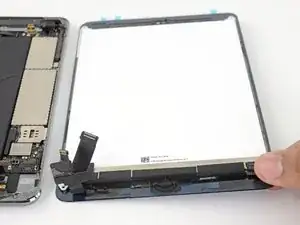

    • Continue with the reassembly process until you are ready to seal the device.

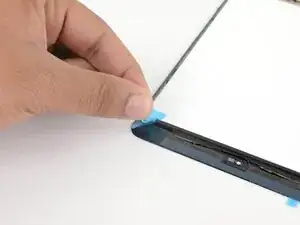

  11. Gs1lQnkDHVi1wpku
    Gs1lQnkDHVi1wpku
    oOHJMXFjHcem3raZ

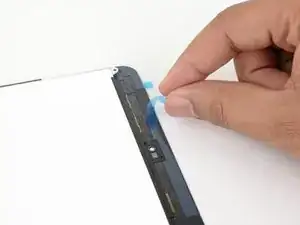

    • Peel and remove the four colored plastic liners to expose the adhesive.

    • Close the device and place something heavy, such as a stack of large books, on top for thirty minutes to help the new adhesive bond.

    • Alternatively, you can use screen vice clamps around the perimeter of your device to set the new adhesive.

Conclusion

Repair didn’t go as planned? Check out our Answers Community for troubleshooting help.
