jp.ik Leap T304 Disassembly - Open Back Cover

First insure your laptop is turned off and check if you have the necessary tools

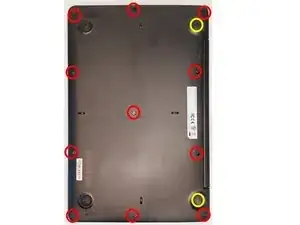

All screws are identified by circles. Pay special attention to the yellow circles, as the rubber feet hide screws.

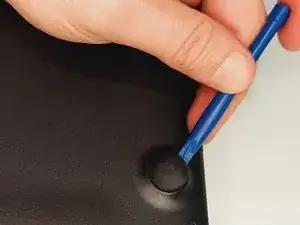

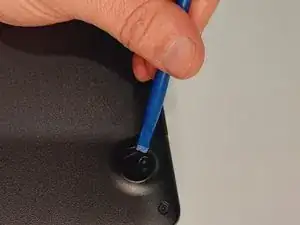

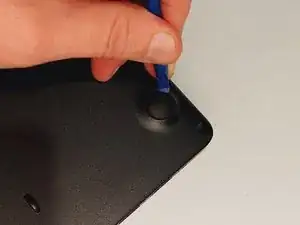

With the opening tool, remove a rubber foot.

For this action you will have to exert some force, because the foot is glued with a resistant glue.

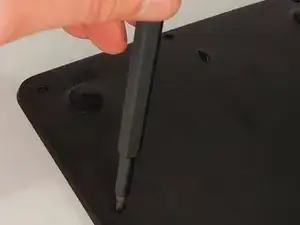

Remove all screws with a Philips screwdriver PH1

All screws are the same so don't worry about identifying them.

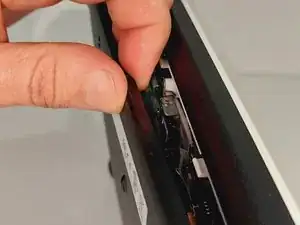

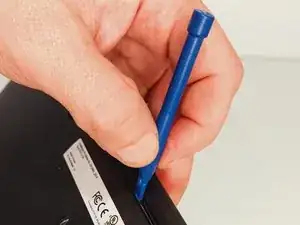

With the plastic tool, insert between the plastics and gently pry open.

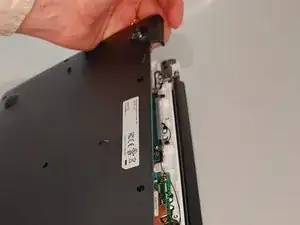

With your fingers continue to force open the bottom cover on the side indicated in the figure.

You will feel and hear several clicks, perfectly normal, nothing is breaking. Remove the cover completely.

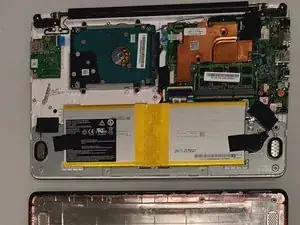

Finally, we have the laptop open and ready to replace most of its components. Look elsewhere on how to replace a component.

To close the laptop just follow this guide in reverse.
