Introduction
If the fan is broken or only works noisily, it makes sense to replace it. A broken fan can lead to severe damage on other components, particularly the processor, which could overheat.
Tools
-
-
Make sure the computer is disconnected from the power source.
-
Turn the computer over
-
Remove the 6 Allen screws with a 2mm Allen key.
-
Carefully lay down the back, the side to the right and left of the case.
-
-
-
Now open the bottom of the case like you would open a book. All components are mounted on that.
-
-
-

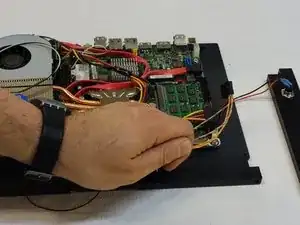

Remove the cable connecting the front part (with the LEDs) to the power source.
-

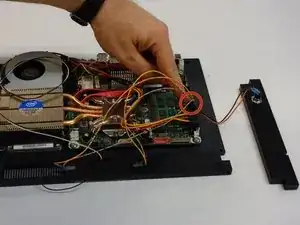

Remove that part of the case and its cable.
-
-
-

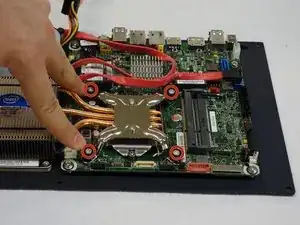

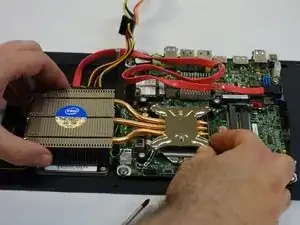

Remove the four screws on the heat sink with a Phillips PH2 screwdriver.
-

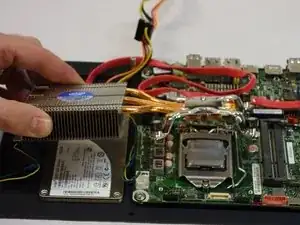

Remove the heat sink.
-
-
-

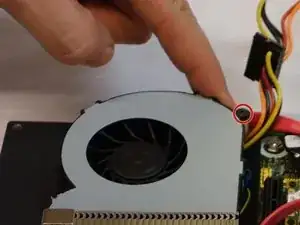

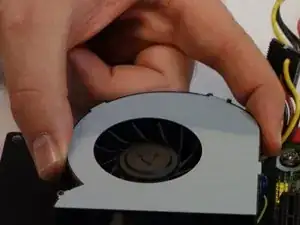

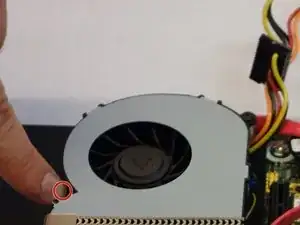

Carefully remove the fan together with its case.
-

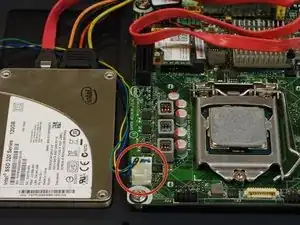

Carefully remove the connector connecting the fan to the power source.
-
In order to reassemble your device, follow the steps of this guide in reverse order.
