Introduction

This is a guide to opening the BlackMagic Pocket Cinema Camera 4K.

  1. p6S4RSvEOZ3PxeKG
    p6S4RSvEOZ3PxeKG
    cK3DKJtnvWBgMgXR
    cmCrJ6mQVOFcENnW

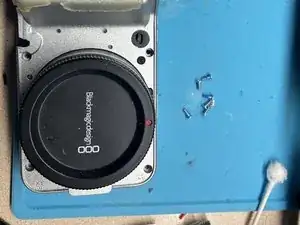

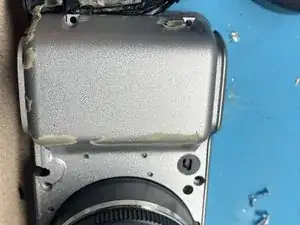

    • Begin by removing the rubber facing from the right side of the lens using a spudger or metal blade.

  2. ZoYiP2ZwZJMWFrSj
    ZoYiP2ZwZJMWFrSj
    QsurpWYEuYTuFq4W

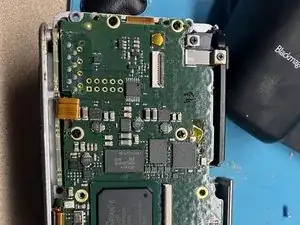

    • Remove the six small galvanized steel PH0 screws (not the black ones) from their holes through the main board

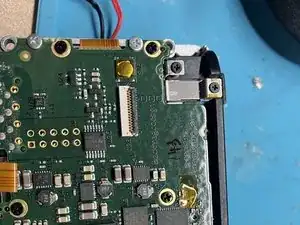

    • Unlatch the black latches on the flex cables and gently slide them out with a pair of tweezers.

    • Reverse this guide to reassemble.
