LG UltraFine 5K Teardown

Written By: Andy Zeng
Published: 05/04/22
  • Comments: 2

LG UltraFine 5K Teardown

Published: 05/04/22

Teardown

Introduction

  1. gBY4JqkbjxmteBlr
    gBY4JqkbjxmteBlr
    LWeObBKwWUiLbA2H
    l4lvHo2JOoNSbFAw

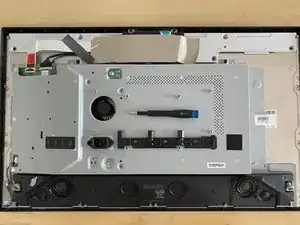

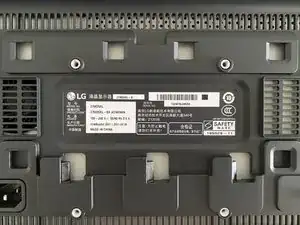

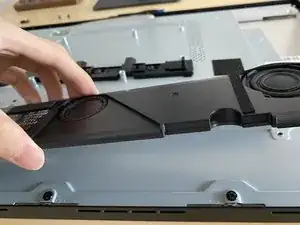

    • LG 27MD5KL

  2. cU1RHEFa4oWSOFMc
    cU1RHEFa4oWSOFMc
    euIu3DQOhxFbKabF
    4HEk25BKviuKIjMo

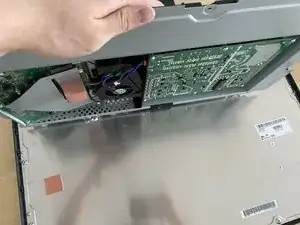

    • Disconnect the cable

    • Webcam module cable

    • Display panel cable

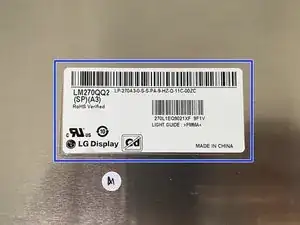

    • LG Display LM270QQ2 LCD Panel

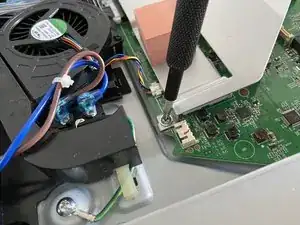

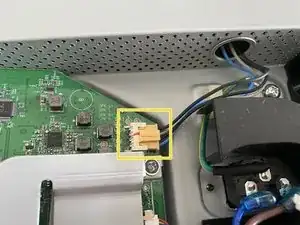

  3. IXR2TAVhNcqYngtb
    IXR2TAVhNcqYngtb
    lVxnteZV4ZFtqSex
    aXjnZMUKCKSZrMpo

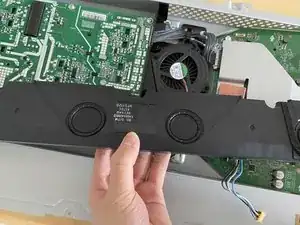

    • Speaker cable

    • Speaker module

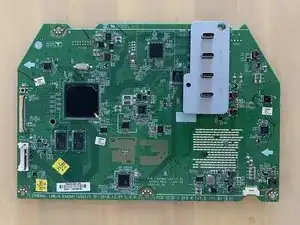

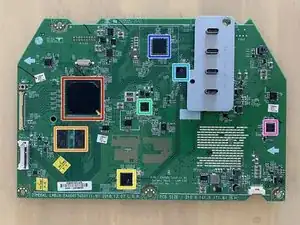

  4. 6mUaGWFQVGFcWGnp
    6mUaGWFQVGFcWGnp
    nDBTWoaqCXsApfHT
    YoaZ55M2GR1IkXrN

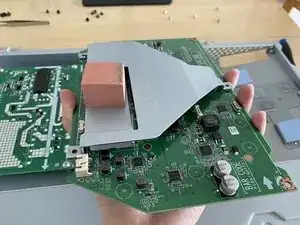

    • Chip ID for the logic board

    • Realtek RTD2799 Monitor Controller

    • Samsung DDR3 RAM

    • Texas Instruments TUSB8041 Four-Port Super-Speed USB 3.0 Hubs

    • Texas Instruments TPS65983B USB Type-C and Power Delivery (PD) 3.0 Controller

    • Genesys Logic GL3523 USB 3.1 Gen 1 Hub Controller

    • Intel JHL7440 Thunderbolt 3 Controller (Titan Ridge)

    • NTP7515D Audio Amp

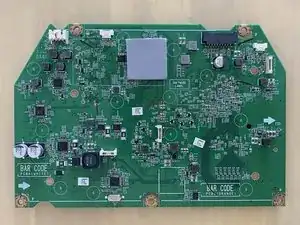

  5. Jfp15TrIQtFAvvuR
    Jfp15TrIQtFAvvuR
    alZQMLnIWDJNUMyS

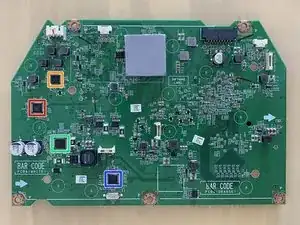

    • Chip ID for the logic board

    • Realtek ALC4020 Audio IC

    • NTP7515D Audio Amp

    • Texas Instruments LP8860AQ1 LED Driver

    • NXP Semiconductors LPC11U68J 32-bit Microcontroller

  6. kNeRHwXxtuBPBAX2
    kNeRHwXxtuBPBAX2
    oYyvNZkeVIXsPLKo
    LvDKFAZtsMLwnJHS

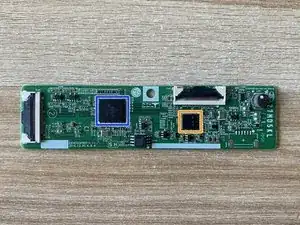

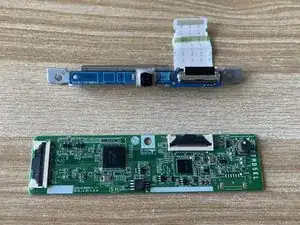

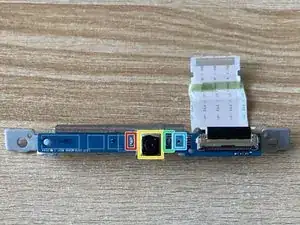

    • Webcam module with Microphone, Ambient light sensor and LED indicator light

    • Cypress Semiconductor CYUSB3064-BZXC USB SuperSpeed Peripheral IC

    • STMicroelectronics Imaging Processor

    • Camera indicator light

    • Camera

    • Ambient light sensor

    • Microphone

  7. dpNShM1QYUmdmqHH
    dpNShM1QYUmdmqHH
    S66nHAaaVmw4TbXs

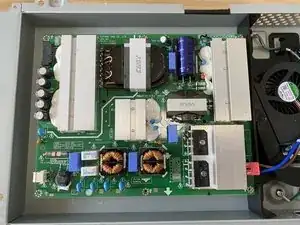

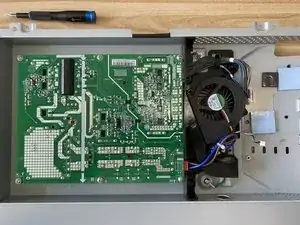

    • AC-DC Adapter module

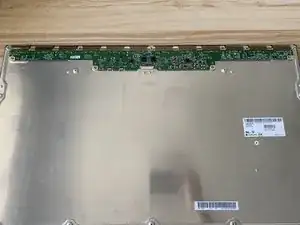

  8. nTsaWCwUZTEiMXYc
    nTsaWCwUZTEiMXYc
    GWW6rMUyy2BhK6n1
    OLBXvhTSWrNVq1yc

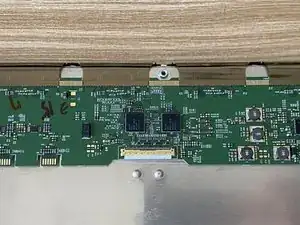

    • Chip ID for the LCD control board

    • Analogix/LG Display ANX1706 Display Controller

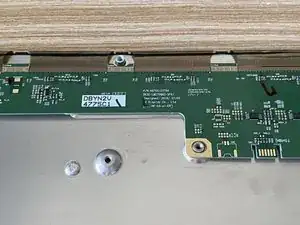

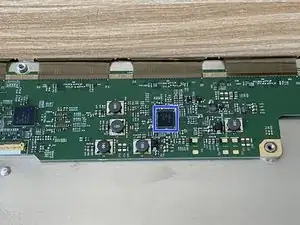

  9. qCZapvYlPGmVuf55
    qCZapvYlPGmVuf55
    KaX3nqldTWOIpwfG
    FVvnOo5sOHQblj2v

    • Chip ID for the LCD control board

    • Richtek Technology RT6811A IC

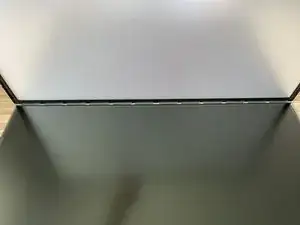

  10. TYYJKMwbNOjrQFFR
    TYYJKMwbNOjrQFFR
    GQUW1rZjoo4HtZQV
    TC14wiHSJLCyQm4V

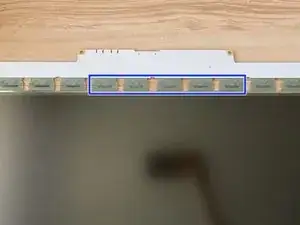

    • Separate the LCD structure inside the panel

    • The cable between control board and panel

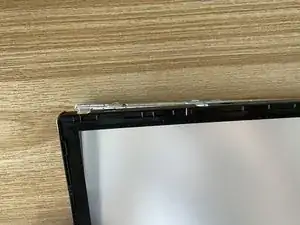

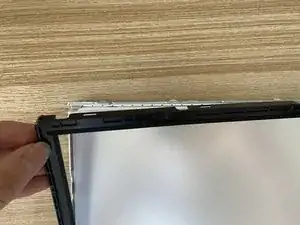

  11. WqmCJg2GEMNMuN64
    WqmCJg2GEMNMuN64
    dvVowZMRKfrNcCeq

    • Lift the holder

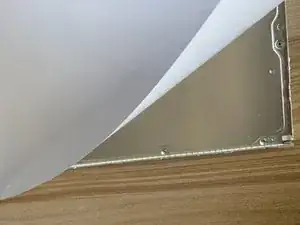

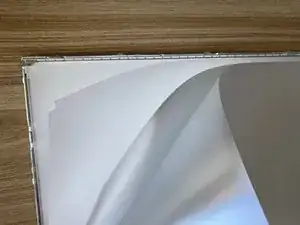

  12. HWgfnF51WIg3RCZK
    HWgfnF51WIg3RCZK
    wi3hDGEEToUZEE4Y
    ahvqT5iiDQdEHZcC

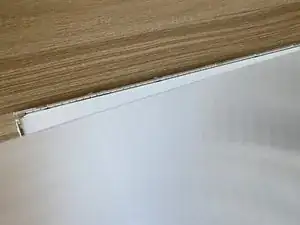

    • Polarizing filter film

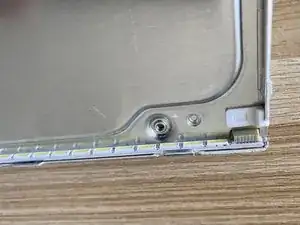

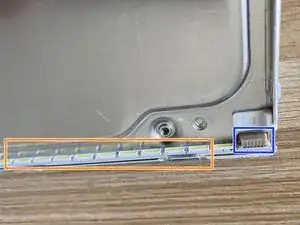

  13. yXyyLAXSgNdDljk1
    yXyyLAXSgNdDljk1
    BXRaPDY1lAAhteAV

    • LCD Backlight module (LEDs)

    • Backlight Connector
